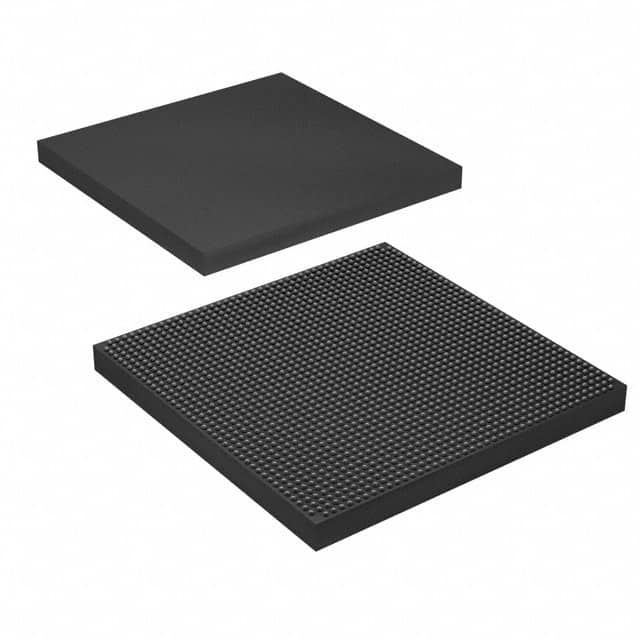

Intel 5SGXEB5R2F43C2
- Part No.:
- 5SGXEB5R2F43C2
- Manufacturer:
- Intel
- Category:
- FPGAs (Field Programmable Gate Array)
- Package:
- 1760-BBGA, FCBGA
- Description:
- IC FPGA 600 I/O 1760FBGA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
5SGXEB5R2F43C2 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Intel
- Series:
- Stratix® V GX
- Package/Case:
- 1760-BBGA, FCBGA
- Packaging:
- Tray
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Number of LABs/CLBs:
- 185000
- Number of Logic Elements/Cells:
- 490000
- Total RAM Bits:
- 41984000
- Number of I/O:
- 600
- Number of Gates:
- -
- Voltage - Supply:
- 0.87V ~ 0.93V
- Mounting Type:
- Surface Mount
- Operating Temperature:
- 0°C ~ 85°C (TJ)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 1760-FCBGA (42.5x42.5)
| Image |  |
|
 |
|
|
| Part Number | 5SGXEB5R2F43C2LG | 5SGXEB5R2F43C2G | 5SGXEB5R2F43C2L | 5SGXEB5R2F43C2LN | 5SGXEB5R2F43C2N |
| Manufacturer | Intel | Intel | Intel | Intel | Intel |
| Series | Stratix® V GX | Stratix® V GX | Stratix® V GX | Stratix® V GX | Stratix® V GX |
| Package/Case | 1760-BBGA, FCBGA | 1760-BBGA, FCBGA | 1760-BBGA, FCBGA | 1760-BBGA, FCBGA | 1760-BBGA, FCBGA |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Number of LABs/CLBs | 185000 | 185000 | 185000 | 185000 | 185000 |
| Number of Logic Elements/Cells | 490000 | 490000 | 490000 | 490000 | 490000 |
| Total RAM Bits | 41984000 | 41984000 | 41984000 | 41984000 | 41984000 |
| Number of I/O | 600 | 600 | 600 | 600 | 600 |
| Number of Gates | - | - | - | - | - |
| Voltage - Supply | 0.82V ~ 0.88V | 0.87V ~ 0.93V | 0.82V ~ 0.88V | 0.82V ~ 0.88V | 0.87V ~ 0.93V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) | 0°C ~ 85°C (TJ) | 0°C ~ 85°C (TJ) | 0°C ~ 85°C (TJ) | 0°C ~ 85°C (TJ) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | 1760-FCBGA (42.5x42.5) | 1760-FCBGA (42.5x42.5) | 1760-FCBGA (42.5x42.5) | 1760-FCBGA (42.5x42.5) | 1760-FCBGA (42.5x42.5) |
