Honeywell Sensing and Productivity Solutions CPC0.3GFC
- Part No.:
- CPC0.3GFC
- Manufacturer:
- Honeywell Sensing and Productivity Solutions
- Category:
- Pressure Sensors, Transducers
- Package:
- 4-SIP Module
- Datasheet:
-
CPC0.3GFC.pdf
- Description:
- SENSOR 0.3PSIG 0.16" .02V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CPC0.3GFC Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Honeywell Sensing and Productivity Solutions
- Series:
- CPC
- Package/Case:
- 4-SIP Module
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Applications:
- Board Mount
- Pressure Type:
- Vented Gauge
- Operating Pressure:
- 0.3PSI (2.07kPa)
- Output Type:
- Wheatstone Bridge
- Output:
- 0 mV ~ 20 mV (12V)
- Accuracy:
- ±2%
- Voltage - Supply:
- 3V ~ 16V
- Port Size:
- Male - 0.16" (4.06mm) Tube
- Port Style:
- Barbed
- Features:
- Temperature Compensated
- Termination Style:
- -
- Maximum Pressure:
- 5PSI (34.47kPa)
- Operating Temperature:
- -25°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Datasheet:
-
CPC0.3GFC.pdf
| Image |  |
 |
 |
|
|

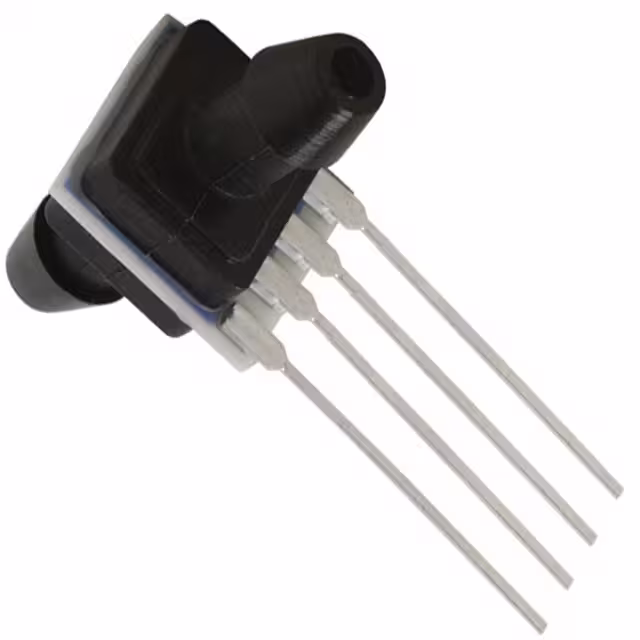

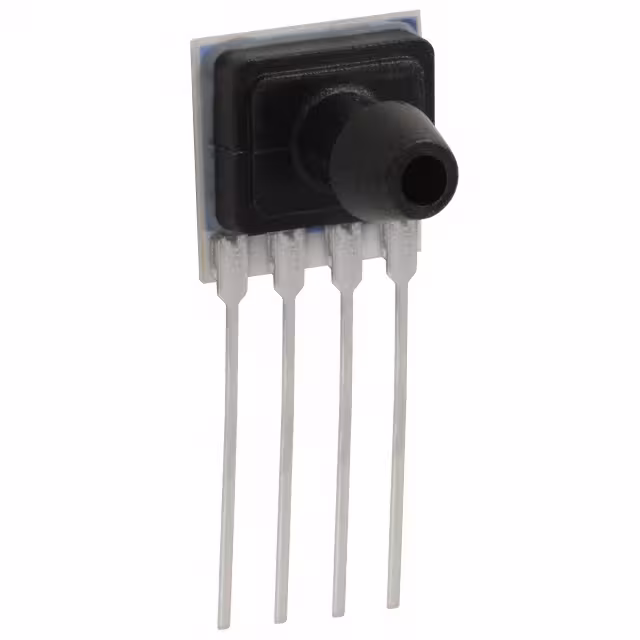

| Part Number | CPC05GC | CPC0.3DFH | CPC0.3GFH | CPC01DFC | CPC01GFH |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Series | CPC | CPC | CPC | CPC | CPC |
| Package/Case | 4-SIP Module | 4-SIP Module | 4-SIP Module | 4-SIP Module | 4-SIP Module |
| Packaging | Bulk | Tube | Bulk | Tube | Tube |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Applications | Board Mount | Board Mount | Board Mount | Board Mount | Board Mount |
| Pressure Type | Vented Gauge | Differential | Vented Gauge | Differential | Vented Gauge |
| Operating Pressure | 5PSI (34.47kPa) | 0.3PSI (2.07kPa) | 0.3PSI (2.07kPa) | 1PSI (6.89kPa) | 1PSI (6.89kPa) |
| Output Type | Wheatstone Bridge | Wheatstone Bridge | Wheatstone Bridge | Wheatstone Bridge | Wheatstone Bridge |
| Output | 0 mV ~ 60 mV (12V) | 0 mV ~ 20 mV (12V) | 0 mV ~ 20 mV (12V) | 0 mV ~ 18 mV (12V) | 0 mV ~ 18 mV (12V) |
| Accuracy | ±2% | ±2% | ±2% | ±2% | ±2% |
| Voltage - Supply | 3V ~ 16V | 3V ~ 16V | 3V ~ 16V | 3V ~ 16V | 3V ~ 16V |
| Port Size | - | Male - 0.16" (4.06mm) Tube, Dual | Male - 0.15" (3.8mm) Tube | Male - 0.16" (4.06mm) Tube, Dual | Male - 0.15" (3.8mm) Tube |
| Port Style | No Port | Barbed | Barbed | Barbed | Barbed |
| Features | Temperature Compensated | Temperature Compensated | Temperature Compensated | Temperature Compensated | Temperature Compensated |
| Termination Style | - | PC Pin | PC Pin | PC Pin | PC Pin |
| Maximum Pressure | 15PSI (103.42kPa) | 5PSI (34.47kPa) | 5PSI (34.47kPa) | 5PSI (34.47kPa) | 5PSI (34.47kPa) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | - | - | - | - |
