Digi X24-019NMI
- Part No.:
- X24-019NMI
- Manufacturer:
- Digi
- Category:
- RF Transceiver Modules and Modems
- Package:
- Module
- Datasheet:
-
X24-019NMI.pdf
- Description:
- RF TXRX MOD ISM>1GHZMMCX SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
X24-019NMI Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Digi
- Series:
- XStream™
- Package/Case:
- Module
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- RF Family/Standard:
- General ISM > 1GHz
- Protocol:
- -
- Modulation:
- FHSS
- Frequency:
- 2.4GHz
- Data Rate:
- 18.8kbps
- Power - Output:
- 17dBm
- Sensitivity:
- -102dBm
- Serial Interfaces:
- UART
- Antenna Type:
- Antenna Not Included, MMCX
- Utilized IC / Part:
- -
- Memory Size:
- -
- Voltage - Supply:
- 5V
- Current - Receiving:
- 80mA
- Current - Transmitting:
- 150mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
- Datasheet:
-
X24-019NMI.pdf
| Image |  |
 |
 |
 |
 |

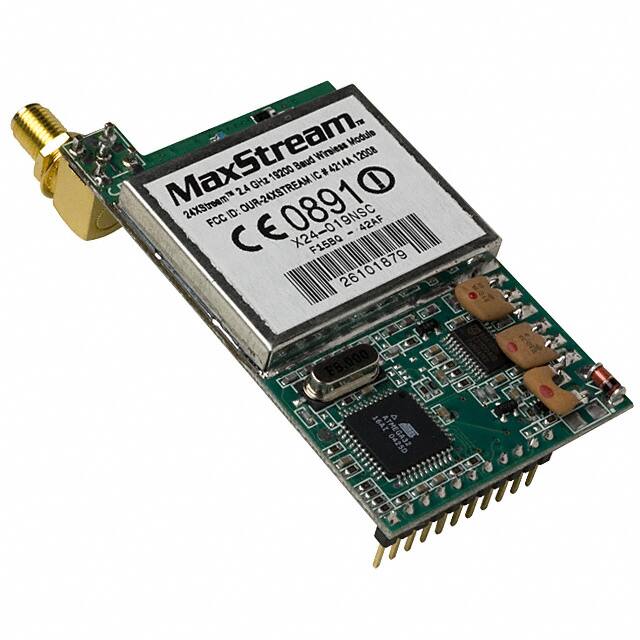

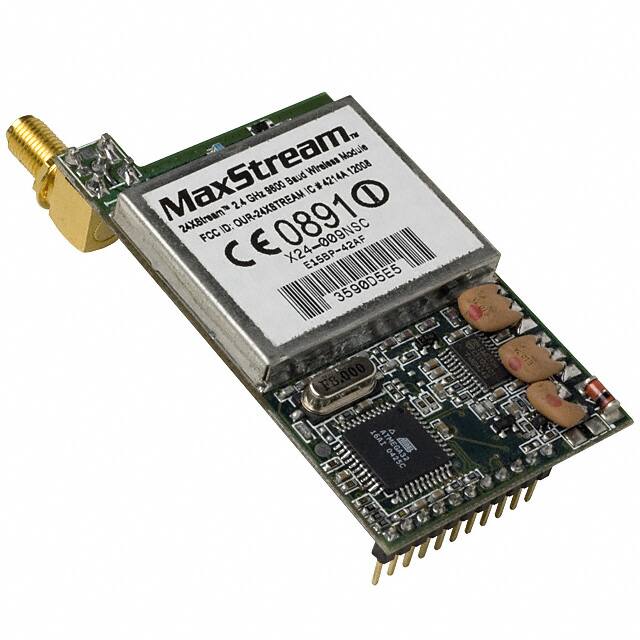

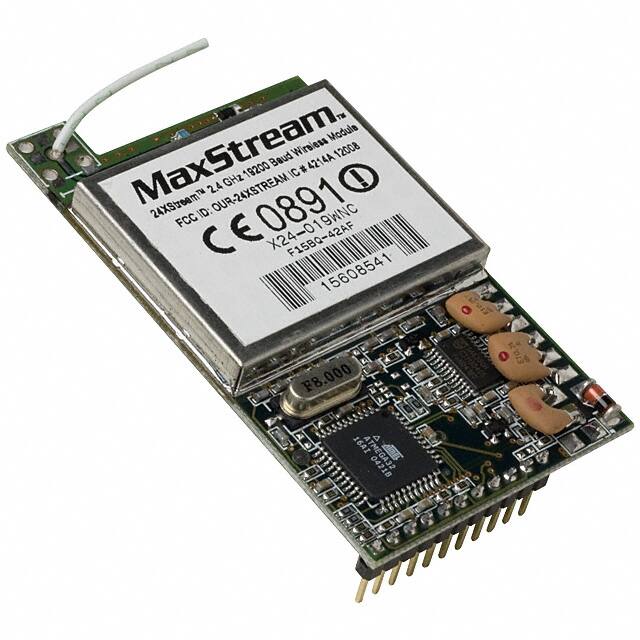

| Part Number | X24-009NSC | X24-019NSC | X24-009WNC | X24-019WNC | X24-009NMC |
| Manufacturer | Digi | Digi | Digi | Digi | Digi |
| Series | XStream™ | XStream™ | XStream™ | XStream™ | XStream™ |
| Package/Case | Module | Module | Module | Module | Module |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | General ISM > 1GHz | General ISM > 1GHz | General ISM > 1GHz | General ISM > 1GHz | General ISM > 1GHz |
| Protocol | - | - | - | - | - |
| Modulation | FHSS | FHSS | FHSS | FHSS | FHSS |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 9.4kbps | 18.8kbps | 9.4kbps | 18.8kbps | 9.4kbps |
| Power - Output | 17dBm | 17dBm | 17dBm | 17dBm | 17dBm |
| Sensitivity | -105dBm | -102dBm | -105dBm | -102dBm | -105dBm |
| Serial Interfaces | UART | UART | UART | UART | UART |
| Antenna Type | Antenna Not Included, RP-SMA | Antenna Not Included, RP-SMA | Integrated, Wire Antenna | Integrated, Wire Antenna | Antenna Not Included, MMCX |
| Utilized IC / Part | - | - | - | - | - |
| Memory Size | - | - | - | - | - |
| Voltage - Supply | 5V | 5V | 5V | 5V | 5V |
| Current - Receiving | 80mA | 80mA | 80mA | 80mA | 80mA |
| Current - Transmitting | 150mA | 150mA | 150mA | 150mA | 150mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
