Amgis, LLC XF-00100-2012
- Part No.:
- XF-00100-2012
- Manufacturer:
- Amgis, LLC
- Category:
- Power Transformers
- Package:
- Datasheet:
-
XF-00100-2012.pdf
- Description:

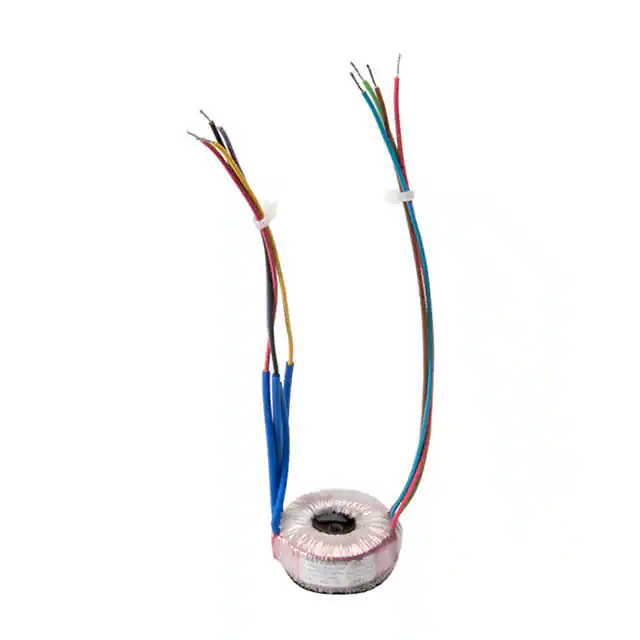

- PWR XFMR TOROIDAL 100VA CHAS MT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
XF-00100-2012 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Amgis, LLC
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Toroidal
- Voltage - Primary:
- 117V
- Voltage - Secondary (Full Load):
- Parallel 12V, Series 24V
- Current - Output (Max):
- Parallel 8.32A, Series 4.16A
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 100VA
- Mounting Type:
- Chassis Mount
- Termination Style:
- Wire Leads
- Size / Dimension:
- 96.52mm Dia
- Height - Seated (Max):
- 45.72mm
- Voltage - Isolation:
- 4000Vrms
- Weight:
- 2.4 lbs (1.1 kg)
- Datasheet:
-
XF-00100-2012.pdf
| Image |  |
|
|
|
 |
| Part Number | XF-10200 | XF-10202 | XF-10232 | XF-10250 | XF-00300-2018 |
| Manufacturer | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| Series | - | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V | 117V |
| Voltage - Secondary (Full Load) | Parallel 7V, Series 14V | Parallel 12V, Series 24V | Parallel 12V, Series 24V | Parallel 12V, Series 24V | Parallel 18V, Series 36V |
| Current - Output (Max) | Parallel 114mA, Series 57mA | Parallel 67mA, Series 34mA | Parallel 625mA, Series 312mA | Parallel 2.083A, Series 1.0415A | Parallel 16.66A, Series 8.33A |
| Primary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No | No |
| Power - Max | 1.6VA | 1.6VA | 15VA | 50VA | 300VA |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | Wire Leads | Wire Leads | Wire Leads | Wire Leads | Wire Leads |
| Size / Dimension | 37.50mm Dia | 37.50mm Dia | 57.50mm Dia | 78.00mm Dia | 116.84mm Dia |
| Height - Seated (Max) | 17.00mm | 17.00mm | 24.00mm | 35.00mm | 73.66mm |
| Voltage - Isolation | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms |
| Weight | 0.157 lb (71.21 g) | 0.157 lb (71.21 g) | 0.578 lb (262.18 g) | 1.5 lbs (680.4 g) | 6.5 lbs (2.9 kg) |
