Zener Diode Arrays(2201)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Configuration | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

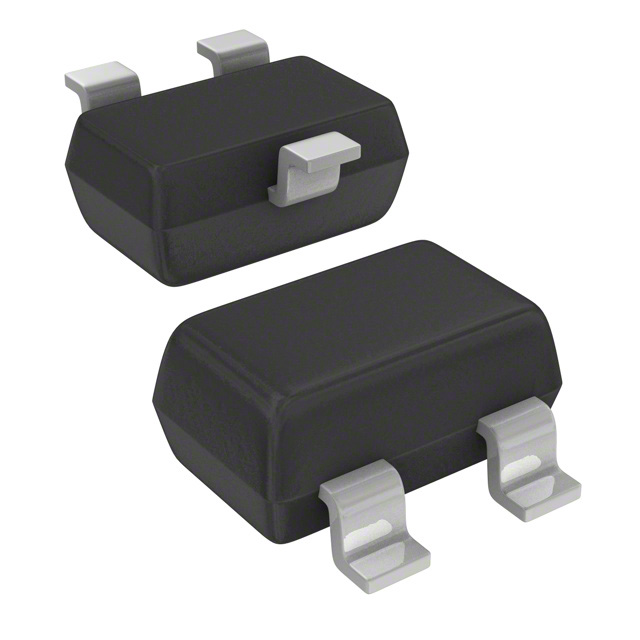

CMSZDA5V1 TR PBFREEDIODE ZENER 5.1V 275MW SOT323 |
10,381 |
|
Datasheet
|
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 5.1 V | ±5% | 275 mW | 60 Ohms | 2 µA @ 2 V | 900 mV @ 10 mA | -65°C ~ 175°C | - | - | Surface Mount | SOT-323 |
|
AZ23C4V3-E3-08DIODE ZENER 4.3V 300MW SOT23 |
46,898 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 4.3 V | ±5% | 300 mW | 95 Ohms | - | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
BZX84C13S-7-FDIODE ZENER ARRAY 13V SOT363 |
1,354 |
|
Datasheet
|
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 Independent | 13 V | ±6% | 200 mW | 30 Ohms | 100 nA @ 8 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOT-363 |
|
SZMMBZ12VALT1GDIODE ZENER 12V SOT23-3 |
28,298 |
|
Datasheet
|
SZMMBZxxxALT1G | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 12 V | ±5% | 300 mW | - | 200 nA @ 8.5 V | 900 mV @ 10 mA | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
DZ23C3V3-E3-08DIODE ZENER 3.3V 300MW SOT23 |
19,559 |
|
Datasheet
|
DZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | 3.3 V | ±5% | 300 mW | 95 Ohms | - | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C12-E3-08DIODE ZENER 12V 300MW SOT23 |
17,296 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 12 V | ±5% | 300 mW | 20 Ohms | 100 nA @ 9 V | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C10-E3-08DIODE ZENER 10V 300MW SOT23 |
16,884 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 10 V | ±5% | 300 mW | 15 Ohms | 100 nA @ 7.5 V | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C8V2-E3-08DIODE ZENER 8.2V 300MW SOT23 |
14,948 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 8.2 V | ±5% | 300 mW | 7 Ohms | 100 nA @ 6 V | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C22-E3-08DIODE ZENER 22V 300MW SOT23 |
14,861 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 22 V | ±5% | 300 mW | 55 Ohms | 100 nA @ 17 V | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C33-E3-08DIODE ZENER 33V 300MW SOT23 |
9,805 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 33 V | ±5% | 300 mW | 80 Ohms | 100 nA @ 25 V | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
DZ23C12-E3-18DIODE ZENER 12V 300MW SOT23 |
8,773 |
|
Datasheet
|
DZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | 12 V | ±5% | 300 mW | 20 Ohms | 100 nA @ 9 V | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C5V1-E3-18DIODE ZENER 5.1V 300MW SOT23 |
8,661 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 5.1 V | ±5% | 300 mW | 60 Ohms | 100 nA @ 800 mV | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
BZB84-B20,215DIODE ZENER ARRAY 20V SOT23 |
5,998 |
|
Datasheet
|
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 20 V | ±2% | 300 mW | 55 Ohms | 50 nA @ 14 V | 900 mV @ 10 mA | - | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
|
AZ23C3V3-E3-18DIODE ZENER 3.3V 300MW SOT23 |
1,236 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 3.3 V | ±5% | 300 mW | 95 Ohms | - | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
MMBZ5232BS-7-FDIODE ZENER ARRAY 5.6V SOT363 |
2,454 |
|
Datasheet
|
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 Independent | 5.6 V | ±5% | 200 mW | 11 Ohms | 5 µA @ 3 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOT-363 |
|
|
DZ23C3V3-G3-08DIODE ZENER 3.3V 300MW SOT23 |
14,960 |
|
Datasheet
|
DZ23-G | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | 3.3 V | ±5% | 300 mW | 95 Ohms | - | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
DZ23C5V6-G3-18DIODE ZENER 5.6V 300MW SOT23 |
9,140 |
|
Datasheet
|
DZ23-G | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | 5.6 V | ±5% | 300 mW | 40 Ohms | 100 nA @ 1 V | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
DZ23C6V2-TPDIODE ZENER ARRAY 6.2V SOT23 |
2,248 |
|
Datasheet
|
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | 6.2 V | ±5% | 300 mW | 10 Ohms | 100 nA @ 2 V | - | - | - | - | Surface Mount | SOT-23 |
|
|
AZ23B3V3-E3-08DIODE ZENER 3.3V 300MW SOT23 |
14,780 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 3.3 V | ±2% | 300 mW | 95 Ohms | - | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23B12-E3-18DIODE ZENER 12V 300MW SOT23 |
9,990 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 12 V | ±2% | 300 mW | 20 Ohms | 100 nA @ 9 V | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
