Zener Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Configuration | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZB84-B5V1,215DIODE ZENER ARRAY 5.1V SOT23 Nexperia USA Inc. |
4,065 |
|
Datasheet
|
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 5.1 V | ±2% | 300 mW | 480 Ohms | 2 µA @ 2 V | 900 mV @ 10 mA | 150°C | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
BZB784-C5V1,115DIODE ZENER ARRAY 5.1V SOT323 Nexperia USA Inc. |
2,758 |
|
Datasheet
|
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 5.1 V | ±5% | 180 mW | 60 Ohms | 2 µA @ 2 V | 900 mV @ 10 mA | 150°C | Automotive | AEC-Q100 | Surface Mount | SOT-323 |
|
|
BZB784-C5V6,115DIODE ZENER ARRAY 5.6V SOT323 Nexperia USA Inc. |
2,372 |
|
Datasheet
|
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 5.6 V | ±5% | 350 mW | 40 Ohms | 1 µA @ 2 V | 900 mV @ 10 mA | - | Automotive | AEC-Q100 | Surface Mount | SOT-323 |
|

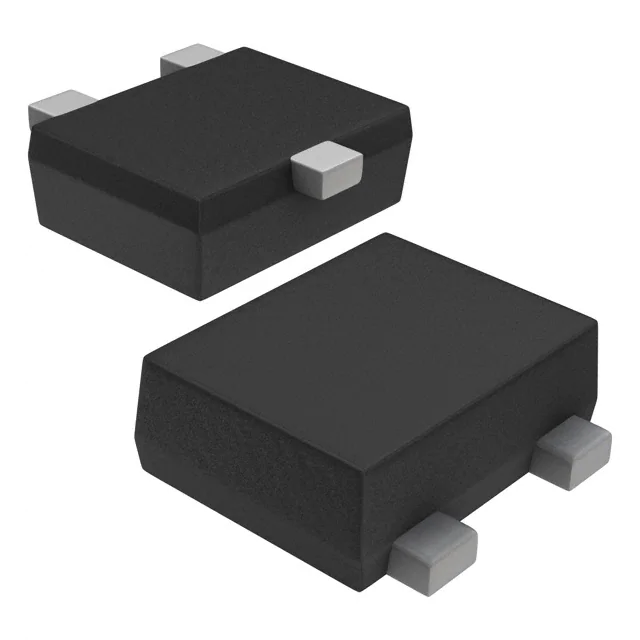

BZB984-C3V6,115DIODE ZENER ARRAY 3.6V SOT663 Nexperia USA Inc. |
11,360 |
|
Datasheet
|
- | SOT-663 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 3.6 V | ±5% | 265 mW | 85 Ohms | 5 µA @ 1 V | 900 mV @ 10 mA | - | - | - | Surface Mount | SOT-663 |
|
BZB984-C6V2,115DIODE ZENER ARRAY 6.2V SOT663 Nexperia USA Inc. |
4,000 |
|
Datasheet
|
- | SOT-663 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 6.2 V | ±5% | 265 mW | 6 Ohms | 3 µA @ 4 V | 900 mV @ 10 mA | - | - | - | Surface Mount | SOT-663 |
|
|
BZB984-C3V0,115DIODE ZENER ARRAY 3V SOT663 Nexperia USA Inc. |
1,699 |
|
Datasheet
|
- | SOT-663 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 3 V | ±5% | 265 mW | 80 Ohms | 10 µA @ 1 V | 900 mV @ 10 mA | - | - | - | Surface Mount | SOT-663 |
|
|
BZB84-B4V7,215DIODE ZENER ARRAY 4.7V SOT23 Nexperia USA Inc. |
14,420 |
|
Datasheet
|
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 4.7 V | ±2% | 300 mW | 80 Ohms | 3 µA @ 2 V | 900 mV @ 10 mA | - | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
|
BZB984-C4V7,115DIODE ZENER ARRAY 4.7V SOT663 Nexperia USA Inc. |
2,489 |
|
Datasheet
|
- | SOT-663 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 4.7 V | ±5% | 265 mW | 50 Ohms | 3 µA @ 2 V | 900 mV @ 10 mA | - | - | - | Surface Mount | SOT-663 |
|
|
BZB84-B20,215DIODE ZENER ARRAY 20V SOT23 Nexperia USA Inc. |
5,998 |
|
Datasheet
|
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 20 V | ±2% | 300 mW | 55 Ohms | 50 nA @ 14 V | 900 mV @ 10 mA | - | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
|
BZB984-C10,115DIODE ZENER ARRAY 10V SOT663 Nexperia USA Inc. |
3,496 |
|
Datasheet
|
- | SOT-663 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 10 V | ±5% | 265 mW | 8 Ohms | 200 nA @ 7 V | 900 mV @ 10 mA | - | - | - | Surface Mount | SOT-663 |
