Surge Protection Devices (SPDs)(9062)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2908201SPD 10VAC/15VDC MCOV 1 POLE |
5,857 |
|
Datasheet
|
TTC | Bulk | Obsolete | - | Base + Module | 1 | 10VAC, 15VDC | 5 kA | 10 kA | - | - | 285 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|
|
SPD2-075-1P1SPD TYPE 1/TYP 2 75V MCOV 1 POLE |
5,346 |
|
Datasheet
|
SPD2 1P+1 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 75V | 20 kA | 50 kA | 100 kA | 330 V | 800 V | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
16011.2SPD TYPE 3 250VAC MCOV 1 POLE |
7,160 |
|
Datasheet
|
- | Box | Active | Type 3 | Base + Module | 1 | 250VAC | 10 kA | 30 kA | - | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
SPP40SP1240SNSPD TYPE 1 240V |
9,763 |
|
Datasheet
|
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSPH2275TTSPD TYPE 2 275VAC MCOV 2 POLE |
9,337 |
|
- |
BSPH | Bulk | Obsolete | Type 2 | Base + Module | 2 | 275VAC | 20 kA | 40 kA | 50 kA | - | 1.5 kV | -40°C ~ 80°C | Remote Signaling Contacts | DIN Rail | CE, KEMA |
|
DS42S-120SPD TYPE 4 300VAC MCOV 2 POLE |
7,394 |
|
Datasheet
|
- | Active | Type 4 | Module Only | 2 | 300VAC | 20 kA | 40 kA | - | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | cURus, EAC, TUV | |
|
1530-1D-WSPD 1 POLE |
6,958 |
|
Datasheet
|
1530-1 | Bulk | Active | - | Module Only | 1 | - | - | - | - | - | - | - | - | DIN Rail | - |
|
|
HOM120SBSPD |
2,612 |
|
Datasheet
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
792-805SPD 4.2VAC/6VDC MCOV 1 POLE |
6,186 |
|
Datasheet
|
- | Box | Active | - | Module Only | 1 | 4.2VAC, 6VDC | 5 kA | 10 kA | - | - | 27 V | -40°C ~ 80°C | - | DIN Rail | EAC |
|

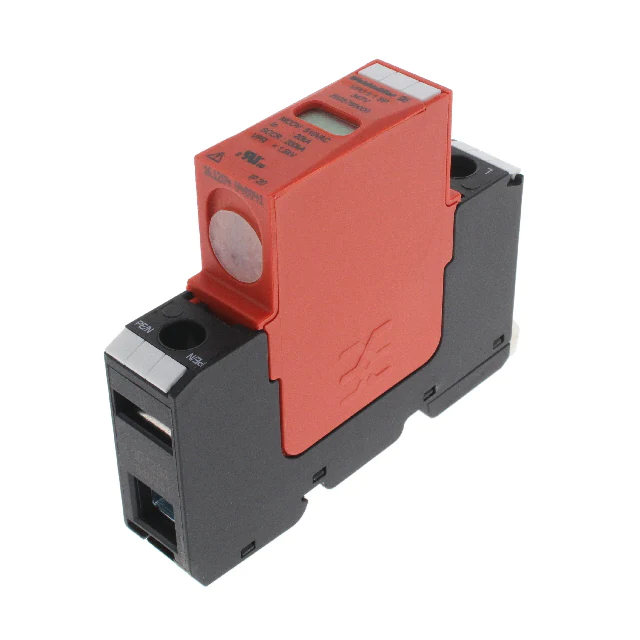

2025780000SPD TYPE 2 510VAC MCOV 1 POLE |
5,094 |
|
- |
VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 510VAC | 20 kA | 40 kA | 200 kA | 1.8 kV | - | -40°C ~ 70°C | - | - | cURus |
|
|
2730470000SPD TYPE 1 150V MCOV 2 POLE |
1 |
|
Datasheet
|
- | Bulk | Active | Type 1 | Base + Module | 2 | 150V | 20 kA | 50 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | - | DIN Rail | cULus |
|
|
1420A-PV-1200-YSPD TYPE 2/TYPE 4 1.34KV MCOV |
4,911 |
|
Datasheet
|
1420A | Box | Active | Type 2, Type 4 | Base + Module | 1 | 1.34kV | 20 kA | 50 kA | 50 kA | 3 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
BSPM1A75D100LVRSPD TYP4 75VAC/100VDC MCOV 1POLE |
7,275 |
|
Datasheet
|
BSPM | Bulk | Active | Type 4 | Module Only | 1 | 75VAC, 100VDC | 10 kA | 40 kA | - | - | - | - | - | DIN Rail | CE, CSA, cURus, KEMA |
|
|
SPD2-750-2P0SPD TYP 1/TYP 2 750V MCOV 2 POLE |
3,643 |
|
Datasheet
|
SPD2 2P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 2 | 750V | 20 kA | 35 kA | 200 kA | 2.5 kV | 3.4 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
1260-2SMG-127SPD 180VAC MCOV 2 POLE |
2,388 |
|
Datasheet
|
1260 | Box | Active | - | Base + Module | 2 | 180VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2SMG-277SPD 350VAC MCOV 2 POLE |
7,013 |
|
Datasheet
|
1260 | Box | Active | - | Base + Module | 2 | 350VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2SMG-400SPD 440VAC MCOV 2 POLE |
9,901 |
|
Datasheet
|
1260 | Box | Active | - | Base + Module | 2 | 440VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1270-4S-120SPD TYPE 1/TYPE 2 150VAC MCOV |
2,467 |
|
Datasheet
|
1270 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 150VAC | 25 kA | 80 kA | 50 kA | - | 800 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-4S-230SPD TYPE 1/TYPE 2 275VAC MCOV |
4,631 |
|
Datasheet
|
1270 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 275VAC | 25 kA | 80 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-4S-127SPD TYPE 1/TYPE 2 180VAC MCOV |
5,757 |
|
Datasheet
|
1270 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 180VAC | 25 kA | 80 kA | 50 kA | - | 1 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
