RF Antennas(14124)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

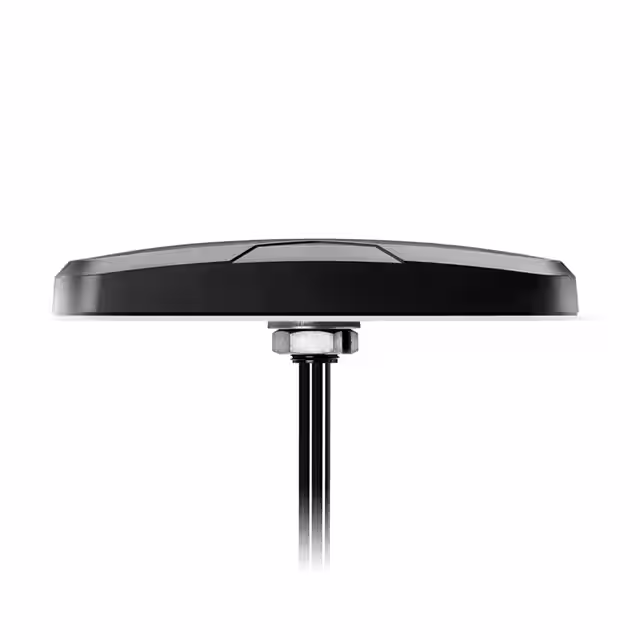

MA173.A.LBI.001MONSOON PERMANENT MOUNT 3M GNSS |
151 |
|
Datasheet
|
Monsoon | Bulk | Active | Cellular, General ISM, Navigation | Wide Band | 761MHz, 859MHz, 920MHz, 1.57542GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 698MHz ~ 2.69GHz | Dome | 9 | - | -3dB, 10dB | -2.58dBi, -4.54dBi, -3.53dBi, 1dBic, -3.3dBi, -4.51dBi, -4.72dBi, -3.59dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS |
|

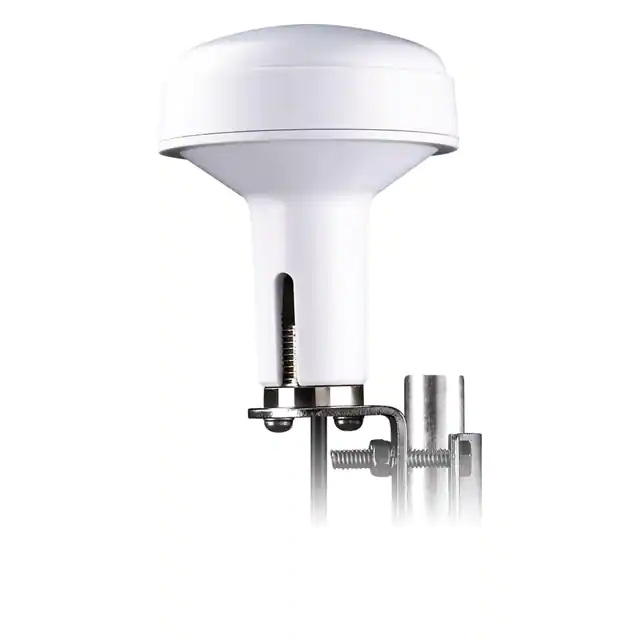

IMA.01.105111RF ANT 1.6GHZ DOME SMA MALE 1M |
111 |
|
Datasheet
|
- | Box | Active | - | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.621GHz ~ 1.626GHz | Dome | 1 | 2 | - | 4dBi | - | - | SMA Male | IP67 | - | - | Bracket Mount | 2.756" (70.00mm) | Iridium™ |
|
33-2920-00-1000RF ANT 1.56GHZ PUCK 1M CABLE |
34 |
|
Datasheet
|
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.56GHz | 1.51GHz ~ 1.61GHz | Puck | 1 | 1.8 | - | 32dB | - | Cable - 1m, LNA, Filter | Connector | IP67 | - | - | Magnetic | 0.591" (15.00mm) | Beidou, Galileo, GLONASS, GPS |
|

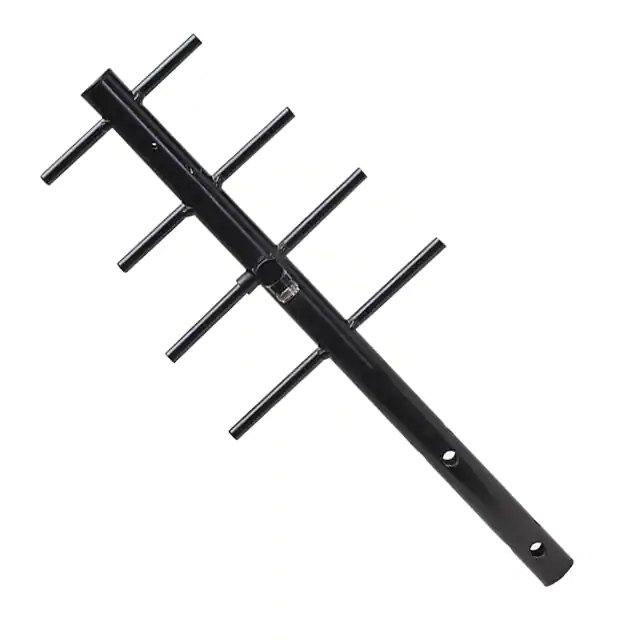

YA6900WANT YAGI 890-960MHZ 8DBI N-FEM |
34 |
|
Datasheet
|
Yagi | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 890MHz ~ 960MHz | Directional Antenna | 1 | 2 | - | 8.8dBi | 300 W | - | N Type Female | - | - | - | Pole Clamp | 17.520" (445.00mm) | General Purpose |
|

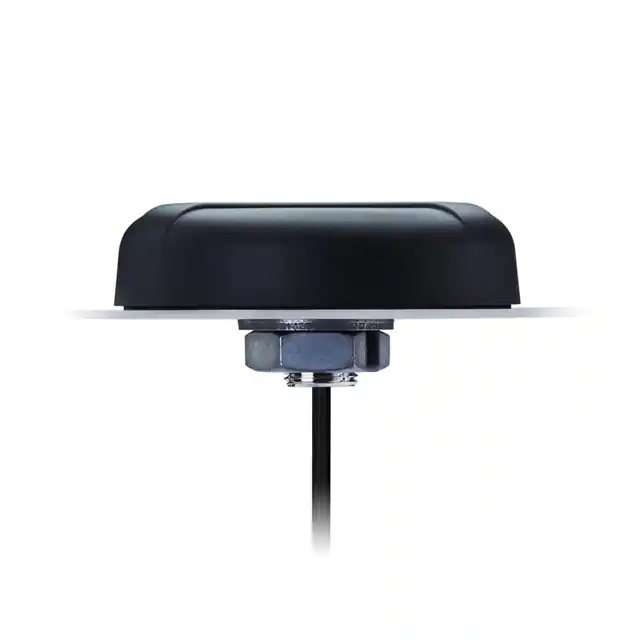

A.80.A.101111BOLT A.80 GPS L1 & L2 PERMANENT |
323 |
|
Datasheet
|
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.575GHz | 1.572GHz ~ 1.578GHz | Dome | 2 | 2 | -10dB | 3.99dBi, 1.21dBi | - | Cable - 1m, LNA | SMA Male | IP67 | - | - | Panel Mount | 1.000" (25.40mm) | Beidou, Galileo, GLONASS, GPS |
|

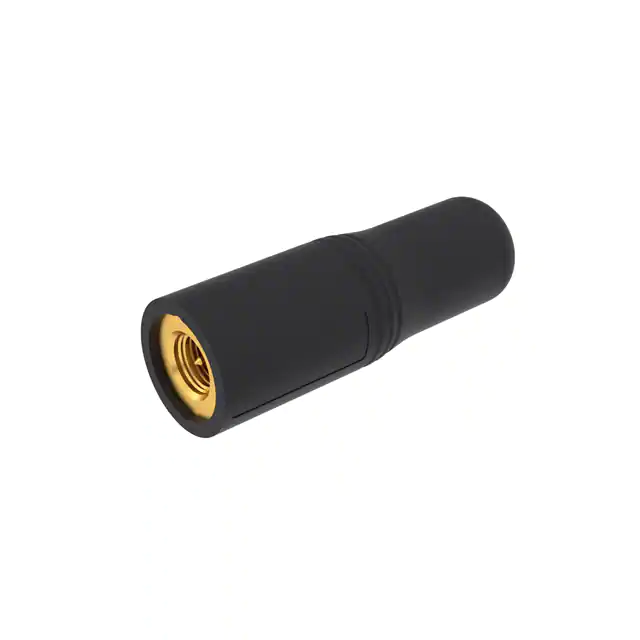

R380300013GPS ACTIVE ANTEN ROHS |
144 |
|
Datasheet
|
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Whip, Straight | 1 | 2.5 | - | 11.5dBic | - | LNA | SMA Male | - | - | - | Panel Mount | 1.752" (44.50mm) | GPS |
|
ARM42111DMRF ANT 829MHZ/1.582GHZ MOD PANEL |
41 |
|
Datasheet
|
ARMADILLO | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 4 | 2, 2.5 | - | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (1) | IP67 | - | - | Panel Mount | 1.772" (45.00mm) | GPS, LTE, Wi-Fi |
|
A09-Y8NFRF ANT 938MHZ YAGI N TYP BRKT MT |
72 |
|
Datasheet
|
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 938MHz | 896MHz ~ 980MHz | Yagi, 4-Element | 1 | 1.5 | - | 8.15dBi | - | Cable - 203mm | N Type Female | - | - | - | Bracket Mount | 12.000" (304.80mm) | - |
|
GPS-21801GNSS MULTI-BAND L1/L2/L5 SURVEYI |
33 |
|
Datasheet
|
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.214GHz, 1.58GHz | 1.15GHz ~ 1.278GHz, 1.55GHz ~ 1.61GHz | Dome | 2 | 1.5 | - | - | - | LNA | TNC Female | IP67 | - | - | Connector Mount | 2.299" (58.40mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
33-HC610-28HOUSED IRIDIUM, ACTIVE |
68 |
|
Datasheet
|
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.62125GHz | 1.616GHz ~ 1.6265GHz | Helical | 1 | 1.8 | - | 3.7dBic | - | LNA, Filter | SMA Male | IP67 | - | - | Base Mount | 2.134" (54.20mm) | Iridium® |
|
33-3742-01-01BEIDOU/GALILEO/GPS/GLONASS, PRE- |
45 |
|
Datasheet
|
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 36dB | - | LNA | TNC Female | IP67 | - | - | Panel Mount | 1.870" (47.50mm) | Beidou, Galileo, GLONASS, GPS |
|
OMB.433.B06F21RF ANT 433MHZ WHIP STR N FEM |
69 |
|
Datasheet
|
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | 1.5 | - | 6dBi | 100 W | - | N Type Female | IP65 | - | - | Bracket Mount | 43.071" (109.40cm) | ISM |
|
OMB.868.B08F21RF ANT 868MHZ WHIP STR N FEM |
427 |
|
Datasheet
|
- | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 50 W | - | N Type Female | IP65 | - | - | Bracket Mount | 58.032" (147.40cm) | ISM |
|
MA412.A.BI.003RF ANT 829MHZ/1.94GHZ DOM SMA 3M |
494 |
|
Datasheet
|
- | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Dome | 4 | 3.5 | - | - | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | LTE |
|
S9025PRNF902-928MHZ 5DBI RH N-FEMALE |
1,460 |
|
Datasheet
|
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.5 | - | 5.5dBi | 10 W | - | N Type Female | IP67 | - | - | Chassis Mount | 0.710" (18.03mm) | General Purpose |
|
MA912.A.BI.001MA912.A.BI.001 2IN1 ADHESIVE 4G |
50 |
|
Datasheet
|
Guardian | Box | Active | Cellular, General ISM | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz, 3.45GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Module | 8 | 3 | - | 2.48dBi, 2.9dBi, 1.44dBi, 2.98dBi, 3.27dBi, 3.27dBi, 2.4dBi, 2.99dBi | - | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | DCS, GSM, LTE, PCS, UMTS |
|
TGX.45.A.BI.01ANTENNA MIMO 450-6000MHZ WIDEBAN |
34 |
|
Datasheet
|
- | Box | Active | Cellular | Wide Band | 450MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 3.75GHz, 5.5375GHz | 450MHz ~ 6GHz | - | 9 | - | - | -4.3dB, -5dB, -3.8dB, -2.6dB, -2.8dB, -2.5dB, -2.7dB, -2.9dB, -4.2dB | 10 W | Cable - 3m | SMA Male | IP65 | - | - | Glass, Pole, Wall Mount | 3.878" (98.50mm) | 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
MA410.A.LBIJ.001RF ANT 700/850MHZ BAR PANEL 1M |
118 |
|
Datasheet
|
Storm | Box | Active | Cellular, Navigation | Wide Band | 700MHz, 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.559GHz ~1.607GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Flat Bar | 11 | 2, 3.5 | -10dB | 3.34dBi, 3.87dBi, 3.93dBi, 4.27dBi, 6.17dBi, 6.35dBi, 7.71dBi, 3.60dBi | - | Cable - 1m, LNA, Filter | SMA Male (4) | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | Beidou, DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS |
|
FG9026RF ANT 915MHZ WHIP STR N FEM |
48 |
|
Datasheet
|
FG | Tube | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 61.000" (154.94cm) | - |
|

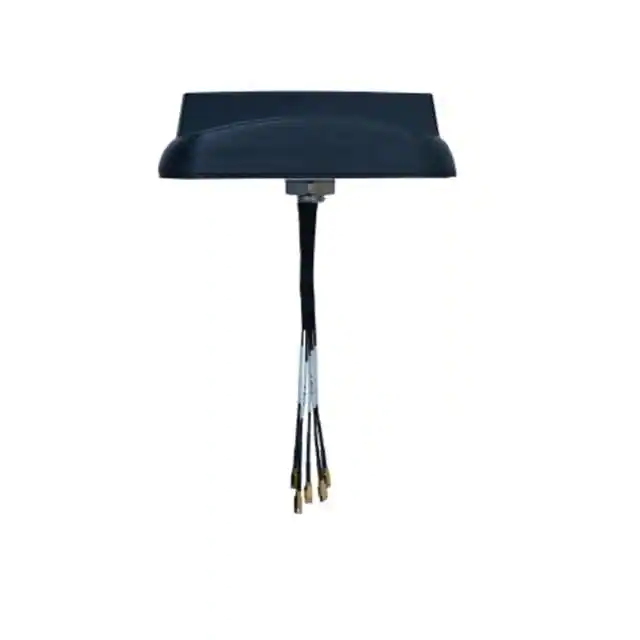

VFP69383B22JN-518JRF ANT SHARKFIN 5 PORT SMA |
123 |
|
Datasheet
|
CBRS | Bulk | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.6015GHz, 2.745GHz, 2.45GHz, 5.45GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.605GHz, 1.69GHz ~ 3.8GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Module | 9 | 2 | - | 0.4dBi, 0.8dBi, 1.2dBi, 2dBi, 2dBi, 2dBi, 4dBi, 2.6dBi, 6.6dBi | 10 W | Cable - 5.18m, LNA | SMA Male | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | Beidou, GLONASS, GPS, LTE, ISM, Wi-Fi |
