Reed Relays(1567)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
781451-10RELAY REPLACEMENT KIT FOR 9117-0 |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
|
780262-01RELAY REPLACEMENT KIT FOR NI PXI |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
|
782460-10RELAY REPLACEMENT KIT FOR IMB02C |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
|
782461-10RELAY REPLACEMENT KIT FOR IME02T |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
|
786915-01RELAY REPLACEMENT KIT,UMS05-BV51 |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
|
R0573B02REED RELAYS 100 R15 573 DE |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HE252A1290RELAY REED DPST 500MA 12V |
0 |
|
Datasheet
|
200 | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 300VDC - Max | 27 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 8.4 VDC | 0.65 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|

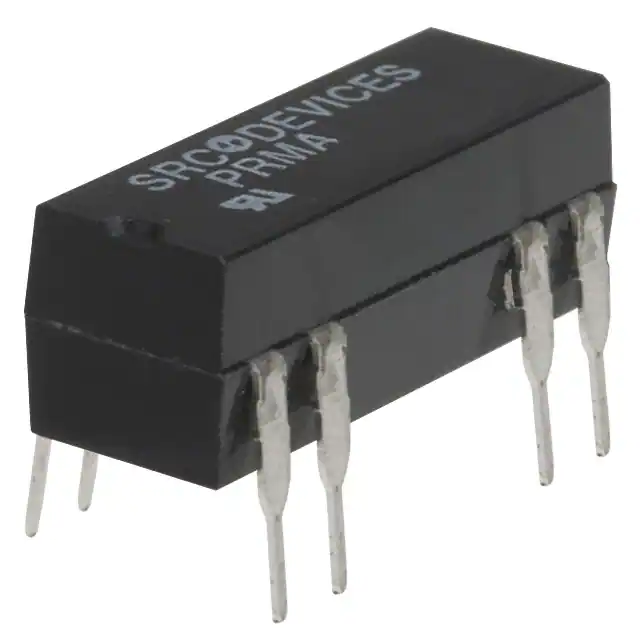

PRMA1A05BRELAY REED SPST 500MA 5V |
0 |
|
Datasheet
|
PRMA | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.5 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
PRMA1A12RELAY REED SPST 500MA 12V |
0 |
|
Datasheet
|
PRMA | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
PRMA1A24RELAY REED SPST 500MA 24V |
0 |
|
Datasheet
|
PRMA | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
PRMA2A05RELAY REED DPST 500MA 5V |
0 |
|
Datasheet
|
PRMA | Tube | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 35.8 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.5 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
PRMA2A05BRELAY REED DPST 500MA 5V |
0 |
|
Datasheet
|
PRMA | Tube | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 35.8 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.5 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
PRMA2A12RELAY REED DPST 500MA 12V |
0 |
|
Datasheet
|
PRMA | Tube | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
PRMA2A24RELAY REED DPST 500MA 24V |
0 |
|
Datasheet
|
PRMA | Tube | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
PRMA1B05RELAY REED SPST 500MA 5V |
0 |
|
Datasheet
|
PRMA | Tube | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.5 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
PRMA1B12RELAY REED SPST 500MA 12V |
0 |
|
Datasheet
|
PRMA | Tube | Obsolete | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
PRMA1C05RELAY REED SPDT 250MA 5V |
0 |
|
Datasheet
|
PRMA | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 2 ms | 3 ms | -40°C ~ 80°C | - |
|
|
PRMA1C05BRELAY REED SPDT 250MA 5V |
0 |
|
Datasheet
|
PRMA | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 2 ms | 3 ms | -40°C ~ 80°C | - |
|
|
PRMA1C12RELAY REED SPDT 250MA 12V |
0 |
|
Datasheet
|
PRMA | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 3 ms | -40°C ~ 80°C | - |
|

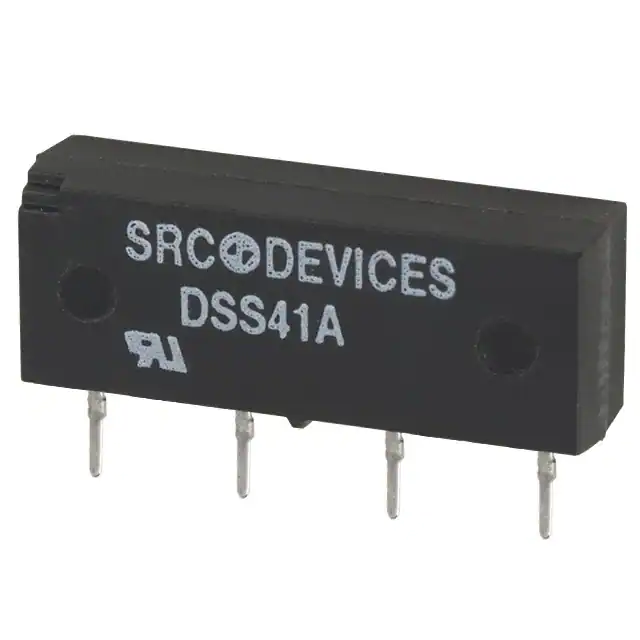

DSS41A05RELAY REED SPST 500MA 5V |
0 |
|
Datasheet
|
DSS4 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.5 ms | 0.5 ms | -40°C ~ 85°C | - |
