Reed Relays(1567)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101-12-1110RELAY REED SPST 500MA 12V |
0 |
|
Datasheet
|
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7101-24-1100RELAY REED SPST 500MA 24V |
0 |
|
Datasheet
|
7000 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 5.7 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
BFM-1C-05RELAY REED SPDT .25A 5V |
3 |
|
Datasheet
|
BFM | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 1 ms | 2 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
7301-24-1001RELAY REED SPST 500MA 24V |
0 |
|
Datasheet
|
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 5.7 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
JWD-171-15RELAY REED SPST 500MA 24V |
0 |
|
Datasheet
|
JWD | Tube | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10.9 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|

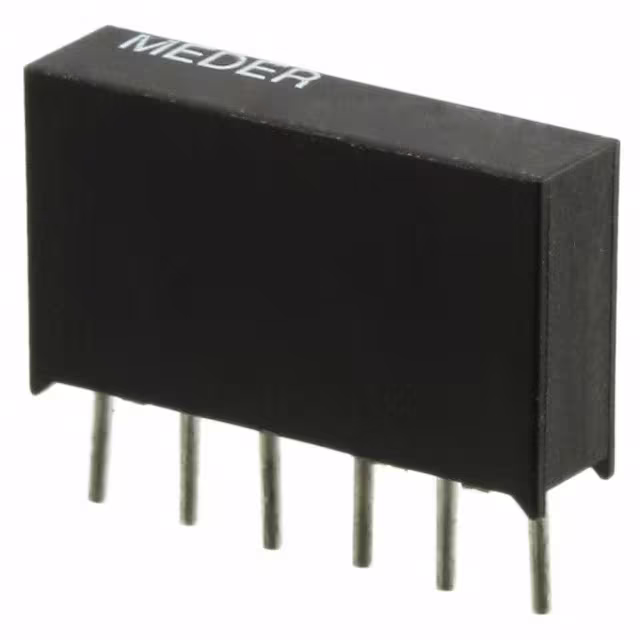

MS05-2A87-78LRELAY REED DPST 500MA 5V |
0 |
|
Datasheet
|
MS | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.4 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
V23100V4305C010RELAY REED SPDT 250MA 5V |
0 |
|
Datasheet
|
V23100-V4, AXICOM | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 1.1 ms | 1.6 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
JWD-172-3RELAY REED SPDT 500MA 12V |
0 |
|
Datasheet
|
JWD | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 28VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 3 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
BFH-2A12250V/1.5A REED RELAY, 2 FORM A, |
0 |
|
Datasheet
|
BFH | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 24 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | 1 VDC | 0.5 ms | 0.15 ms | -40°C ~ 125°C | - | |
|
|
JWD-172-155RELAY REED SPDT 500MA 5V |
0 |
|
Datasheet
|
JWD | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 28VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 3 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
S4-05-QRELAY, HV, VERTICAL MOUNT, SPNO, |
0 |
|
Datasheet
|
S4 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 350VDC - Max | 55.6 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S4-12-QRELAY, HV, VERTICAL MOUNT, SPNO, |
0 |
|
Datasheet
|
S4 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 350VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S4-24-QRELAY, HV, VERTICAL MOUNT, SPNO, |
0 |
|
Datasheet
|
S4 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 350VDC - Max | 16 mA | Non Latching | - | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
D31C2100REED RELAY 1C/5V |
0 |
|
Datasheet
|
- | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 1.5 ms | 2 ms | -40°C ~ 70°C | Rhodium (Rh) |
|
|
JWD-172-162RELAY REED SPDT 500MA 24V |
0 |
|
Datasheet
|
JWD | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 500 mA | 28VDC - Max | 11.2 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 3 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
7301-12-1000RELAY REED SPST 500MA 12V |
0 |
|
Datasheet
|
7000 | Bulk | Not For New Designs | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 10.9 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7304-05-1000RELAY REED 4PST 500MA 5V |
0 |
|
Datasheet
|
7000 | Bulk | Obsolete | Through Hole | 5VDC | 4PST-NO (4 Form A) | 500 mA | 500VAC, 500VDC - Max | 91 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
BFH-2C-12RELAY REED DPDT .25A 12V |
0 |
|
Datasheet
|
BFH | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1.5 ms | 2 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
S4-05-QMRELAY, HV, VERTICAL MOUNT, SPNO, |
0 |
|
Datasheet
|
S4 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 350VDC - Max | 55.6 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S4-12-QMRELAY, HV, VERTICAL MOUNT, SPNO, |
0 |
|
Datasheet
|
S4 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 350VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
