Reed Relays(1567)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT71215PRELAY REED SPST-NO 2A 12V |
8 |
|
Datasheet
|
DA | Tray | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 126 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
24HV1B100HV REED RELAY SPST NC 10KV 24V |
15 |
|
Datasheet
|
XXHV | Bulk | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 3 A | 5000VDC - Max | 60 mA | Non Latching | - | Solder Turret | - | 19 VDC | 2 VDC | - | - | - | - |
|
|

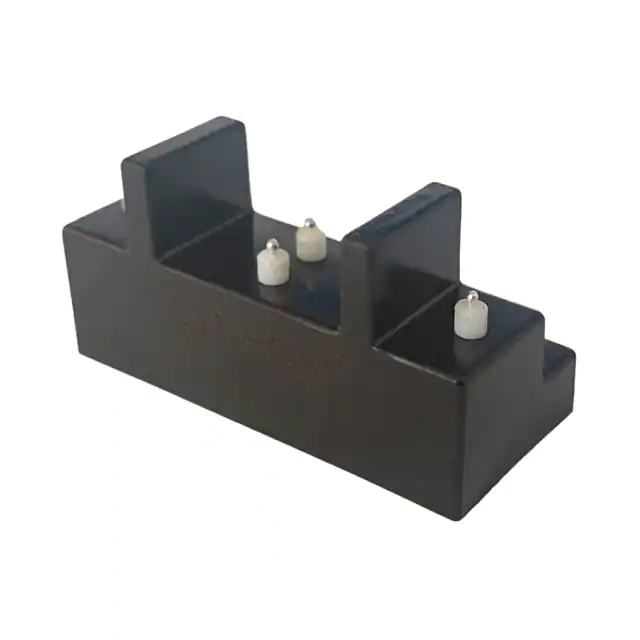

12HV1A100HV REED RELAY SPST NO 10KV 12V |
6 |
|
Datasheet
|
XXHV | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 3 A | 5000VDC - Max | 120 mA | Non Latching | - | Solder Turret | - | 11 VDC | 1 VDC | - | - | - | - |
|
MS12-1A87-75DRELAY REED SPST 500MA 12V |
64 |
|
Datasheet
|
MS | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 17.1 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP12-2A72-21LRELAY REED DPST 1A 12V |
56 |
|
Datasheet
|
DIP | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP24-2A72-21LRELAY REED DPST 1A 24V |
79 |
|
Datasheet
|
DIP | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
BE24-1A85-MHIGH VOLTAGE REED RELAY, FORM 1A |
99 |
|
Datasheet
|
BE | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 17.1 mA | Non Latching | - | PC Pin | Sealed - Fully | 16.8 VDC | 3.6 VDC | 1.1 ms | 100 µs | -20°C ~ 70°C | - |
|
|
MRE24-1A85-HCHIGH VOLTAGE REED RELAY, FORM 1A |
30 |
|
Datasheet
|
MRE | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 17.1 mA | Non Latching | Magnetic Shield | PC Pin | Sealed - Fully | 18 VDC | 2.4 VDC | 1.5 ms | 600 µs | -20°C ~ 70°C | Rhodium (Rh) |
|
BE12-1A85-PRELAY REED SPST 1A 12V |
32 |
|
Datasheet
|
BE | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 19.3 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.4 VDC | 1.8 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
BH12-1A85-MHIGH VOLTAGE AND INSULATION REED |
43 |
|
- |
BH | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1.2 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | - |
|
|
BH24-1A85-MHIGH VOLTAGE AND INSULATION REED |
17 |
|
- |
BH | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 15 mA | Non Latching | - | PC Pin | - | 17.6 VDC | 2.4 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | - |
|
|
MRE24-2A85-PHIGH VOLTAGE REED RELAY, FORM 1A |
23 |
|
Datasheet
|
MRE | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Fully | 18 VDC | 2.4 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | Rhodium (Rh) |
|
|
MRE12-1A85-HVHIGH VOLTAGE REED RELAY, FORM 1A |
74 |
|
Datasheet
|
MRE | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.8 VDC | 1.2 VDC | 1.5 ms | 600 µs | -20°C ~ 70°C | Rhodium (Rh) |
|
|
BE24-1A66+1B66-MGENERAL PUPOSE REED RELAY, FORM |
64 |
|
Datasheet
|
BE | Tube | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 500 mA | 200VAC, 200VDC - Max | 17.8 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 1.3 VDC | 0.5 ms | 100 µs | -20°C ~ 70°C | - |
|
|
BE05-1A85-PRELAY REED SPST 1A 5V |
39 |
|
Datasheet
|
BE | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 47.6 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
BH12-2A85-MHIGH VOLTAGE AND INSULATION REED |
52 |
|
- |
BH | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1.2 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | - |
|
|
BE12-4A85-MHIGH VOLTAGE REED RELAY, FORM 4A |
94 |
|
Datasheet
|
BE | Tube | Active | Through Hole | 12VDC | 4PST-NO (4 Form A) | 1 A | 1000VAC, 1000VDC - Max | 46.2 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.4 VDC | 0.75 VDC | 1.1 ms | 100 µs | -20°C ~ 70°C | - |
|
|
BE24-1A85-PRELAY REED SPST 1A 24V |
82 |
|
Datasheet
|
BE | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 17.1 mA | Non Latching | - | PC Pin | Sealed - Fully | 16.8 VDC | 3.6 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
BE12-2A85-PRELAY REED DPST 1A 12V |
48 |
|
Datasheet
|
BE | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 28.6 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.4 VDC | 1.8 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
HI12-1A85RELAY REED SPST-NO 1A 12V |
65 |
|
Datasheet
|
HI | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 13 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
