Reed Relays(1567)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OSIP-1A05200V/0.5A SIP REED RELAY, 1 FORM |
286 |
|
Datasheet
|
XSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
OSIP-1A05-D200V/0.5A SIP REED RELAY, 1 FORM |
398 |
|
Datasheet
|
XSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
JWD-171-5RELAY REED SPST 500MA 24V |
0 |
|
Datasheet
|
JWD | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
3570-1421-122RELAY REED SIP DPST .5A 12V W/EM |
166 |
|
Datasheet
|
3570 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 16 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
MSIP-2A05200V/0.5A MINI SIZE REED RELAY, |
408 |
|
Datasheet
|
MSIP | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 13 mA | Non Latching | - | PC Pin | - | 4 VDC | 0.4 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
V23100V4515A010RELAY REED SPST 500MA 15V |
0 |
|
Datasheet
|
V23100-V4, AXICOM | Tube | Active | Through Hole | 15VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | Diode | PC Pin | - | 10.5 VDC | 2.25 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
VSIP-1A05I150V/0.5A, THE SMALLEST HIGH POW |
495 |
|
Datasheet
|
XSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 12.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
VSIP-1A05D150V/0.5A, THE SMALLEST SIP RELA |
485 |
|
Datasheet
|
XSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VDC - Max | 12.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
VSIP-1A05DI150V/0.5A, THE SMALLEST HIGH POW |
485 |
|
Datasheet
|
XSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 12.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
VSIP-1A05150V/0.5A, THE SMALLEST SIP RELA |
494 |
|
Datasheet
|
XSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VDC - Max | 12.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
BFS-1A05C250V/1A REED RELAY, 1 FORM A, 5V |
103 |
|
Datasheet
|
BFS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | Coaxial Shield | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | - |
|
|

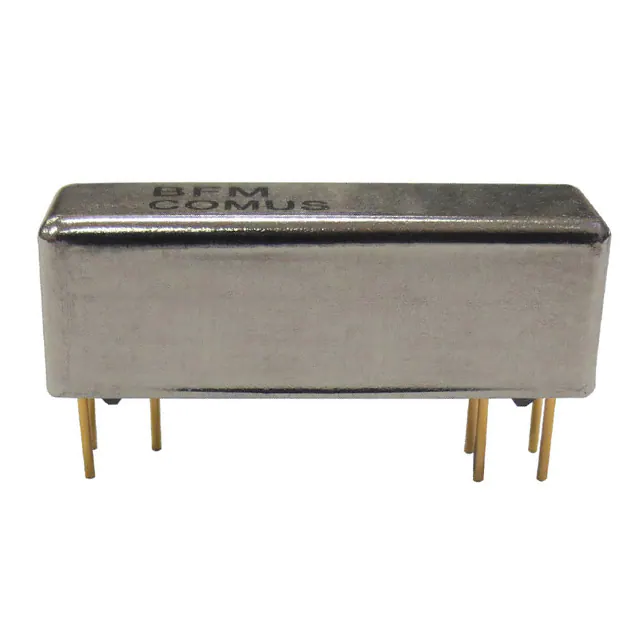

BFM-1A12E350V/1.5A REED RELAY, 1 FORM A, |
102 |
|
Datasheet
|
BFM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | Electrostatic Shield | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | - |
|
|
JWD-171-12RELAY REED SPST 500MA 5V |
0 |
|
Datasheet
|
JWD | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
JWD-171-19RELAY REED SPST 500MA 12V |
0 |
|
Datasheet
|
JWD | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
1-1393771-2JWD-171-19=REED RELAYS |
1,572 |
|
Datasheet
|
JWD | Box | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
BFM-1C-12CWRELAY REED SPDT .25A 12V |
107 |
|
Datasheet
|
BFM-CW | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 6.7 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
V23100V4312B010RELAY REED DPST 500MA 12V |
0 |
|
Datasheet
|
V23100-V4, AXICOM | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
BFS-1C12200V/0.5A REED RELAY, 1 FORM C, |
102 |
|
Datasheet
|
BFS | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VDC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C | - |
|
|
BFM-1C12200V/1.0A REED RELAY, 1 FORM C, |
102 |
|
Datasheet
|
BFM | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C | - |
|
7101-24-1000RELAY REED SPST 500MA 24V |
131 |
|
Datasheet
|
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 5.7 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
