Isolators - Gate Drivers(3597)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-0302-000EOPTOISO 3.75KV 1CH GATE DVR 8SO |
2,286 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO | CSA, UR |
|
TLP5771(TP,EOPTOISO 5KV 1CH GATE DVR 6SO |
914 |
|
Datasheet
|
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1A, 1A | 1A | 1.65V | 8 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO | CQC, cUR, UR, VDE |
|
VO3120-X007TOPTOISO 5.3KV 1CH GATE DVR 8SMD |
638 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5300Vrms | 25kV/µs | 400ns, 400ns | 200ns | 100ns, 100ns | 2.5A, 2.5A | 2.5A | 1.6V (Max) | 25 mA | 15V ~ 32V | - | - | -40°C ~ 110°C | Surface Mount | 8-SMD | cUR, UR |
|
FOD3120OPTOISO 5KV 1CH GATE DVR 8DIP |
489 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | UL |
|
HT0440K6-GDIGITAL ISO 2CH GATE DVR 10DFN |
21,488 |
|
Datasheet
|
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | - | - | 50µs, 150µs | - | 650µs, 3ms (Max) | - | - | - | - | - | - | - | -40°C ~ 85°C | Surface Mount | 10-DFN (3x4) | - |
|
TLP5774(TP,EOPTOISO 5KV 1CH GATE DVR 6SO |
3,762 |
|
Datasheet
|
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 3A, 3A | 4A | 1.65V | 8 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO | CQC, cUR, UR, VDE |
|
|
HCPL-0314-500EOPTOISO 3.75KV 1CH GATE DVR 8SO |
9,298 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO | CSA, UR |
|
|
UCC5390ECDRDGTL ISO 3KV 1CH GATE DVR 8SOIC |
6,218 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3000Vrms | 100kV/µs | 65ns, 65ns | 20ns | 10ns, 10ns | 10A, 10A | - | - | - | 13.2V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
|
SI8271GB-ISRDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
23,739 |
|
Datasheet
|
Si827x | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | RF Coupling | 1 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|

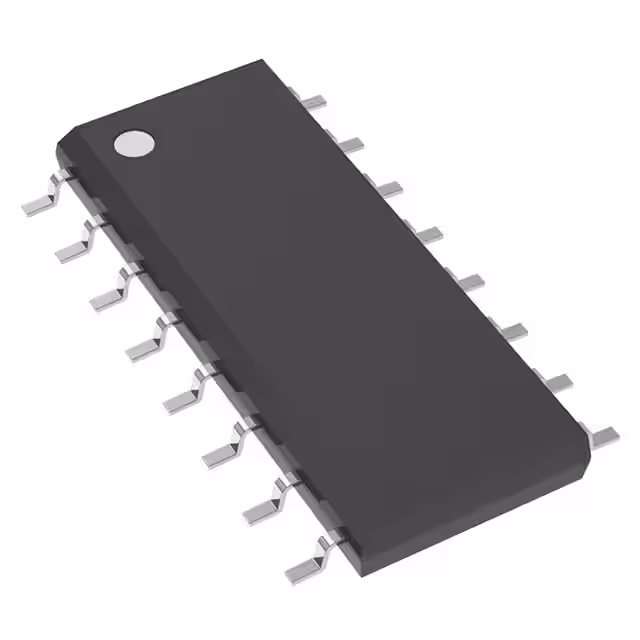

UCC21220DRDGTL ISO 3KV 2CH GATE DVR 16SOIC |
3,850 |
|
Datasheet
|
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 3000Vrms | 100V/ns | 40ns, 40ns | 5.5ns | 5ns, 6ns | 4A, 6A | - | - | - | 9.2V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | - |
|
|
UCC21220ADRDGTL ISO 3KV 2CH GATE DVR 16SOIC |
2,058 |
|
Datasheet
|
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 3000Vrms | 100V/ns | 40ns, 40ns | 5.5ns | 5ns, 6ns | 4A, 6A | 4A, 6A | - | - | 6V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, UL, VDE |
|
1ED3121MU12HXUMA1DGT ISO 1.2KV 1CH GT DVR DSO8-66 |
1,114 |
|
Datasheet
|
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 1200Vrms | 200kV/µs | - | - | 15ns, 15ns | 5.5A, 5.5A | 5.5A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8-66 | UL |
|
UCC5390ECDWVRDGTL ISO 3KV 1CH GATE DVR 8SOIC |
4,425 |
|
Datasheet
|
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3000Vrms | 100kV/µs | 100ns, 100ns | 20ns | 10ns, 10ns | 10A, 10A | - | - | - | 13.2V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
FOD3120SDOPTOISO 5KV 1CH GATE DVR 8SMD |
841 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UL |
|
|
UCC5350MCQDRQ1DGTL ISO 3KV 1CH GATE DVR 8SOIC |
2,740 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3000Vrms | 100kV/µs | 100ns, 100ns | 20ns | 10ns, 10ns | 5A, 5A | 10A | - | - | 13.2V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, UL, VDE |
|
|
UCC5350MCQDWVRQ1DGTL ISO 5KV 1CH GATE DVR 8SOIC |
904 |
|
Datasheet
|
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 100ns, 100ns | 20ns | 10ns, 10ns | 5A, 5A | 5A | - | - | 13.2V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, UL, VDE |
|
FOD8482OPTOISO 5KV 1CH GATE DVR 6SOP |
9,319 |
|
Datasheet
|
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 300ns, 300ns | 250ns | 15ns, 10ns | - | - | 1.4V | 20 mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | - |
|
VO3120OPTOISO 5.3KV 1CH GATE DVR 8DIP |
2,141 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 5300Vrms | 25kV/µs | 400ns, 400ns | 200ns | 100ns, 100ns | 2.5A, 2.5A | 2.5A | 1.6V (Max) | 25 mA | 15V ~ 32V | - | - | -40°C ~ 110°C | Through Hole | 8-DIP | cUR, UR |
|
|
1ED3120MC12HXUMA1DGTL ISO 8KV 1CH GT DVR DSO8-66 |
876 |
|
Datasheet
|
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 8000Vpk | 200kV/µs | 100ns, 100ns | - | 30ns, 30ns (Max) | 5.5A, 5.5A | 5.5A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8-66 | UL, VDE |
|
|
FOD8342R2OPTOISO 5KV 1CH GATE DVR 6SOP |
928 |
|
Datasheet
|
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOP | UR |
