Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FOD8314TOPTOISO 5KV 1CH GATE DVR 6SOP Fairchild Semiconductor |
35,207 |
|
Datasheet
|
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 40ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 16V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOP | UL |
|
FOD3181OPTOISO 5KV 1CH GATE DVR 8DIP Fairchild Semiconductor |
95,906 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 500ns, 500ns | - | 75ns, 55ns | 500mA, 500mA | 1.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -20°C ~ 85°C | Through Hole | 8-DIP | cUL, UL |
|
|
FOD3181VOPTOISO 5KV 1CH GATE DVR 8DIP Fairchild Semiconductor |
860 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 500ns, 500ns | - | 75ns, 55ns | 500mA, 500mA | 1.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -20°C ~ 85°C | Through Hole | 8-DIP | cUL, UL, VDE |
|
FOD3181TVOPTOISO 5KV 1CH GATE DVR 8DIP Fairchild Semiconductor |
727 |
|
Datasheet
|
- | 8-DIP (0.400", 10.16mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 500ns, 500ns | - | 75ns, 55ns | 500mA, 500mA | 1.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -20°C ~ 85°C | Through Hole | 8-DIP | cUL, UL, VDE |
|
FOD3120TSOPTOISO 5KV 1CH GATE DVR 8SMD Fairchild Semiconductor |
240 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UL |
|
FOD3180SDOPTOISO 5KV 1CH GATE DVR 8SMD Fairchild Semiconductor |
19,000 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 200ns, 200ns | 65ns | 75ns, 55ns | 2A, 2A | 2.5A | 1.43V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | cUL, UL |
|
FOD3180ASDFET OUTPUT OPTOCOUPLER Fairchild Semiconductor |
9,000 |
|
Datasheet
|
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FOD3184TSR2OPTOISO 5KV 1CH GATE DVR 8SMD Fairchild Semiconductor |
700 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UL |
|

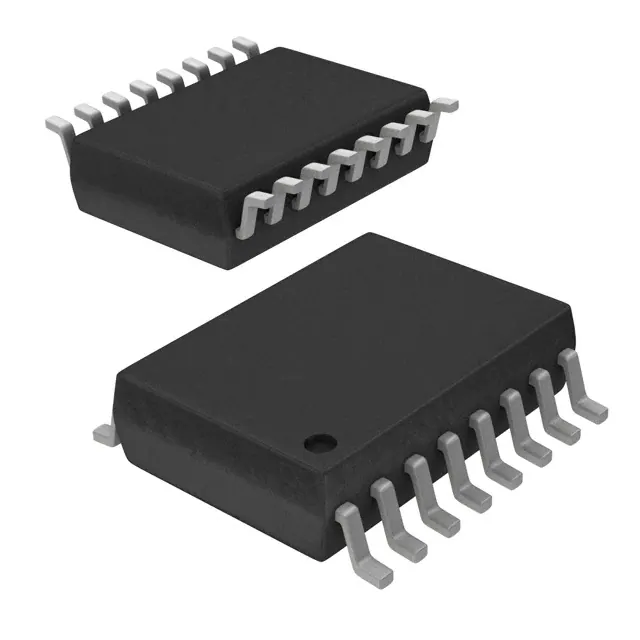

FOD8332VOPTOISO 4.243KV 1CH GT DVR 16SO Fairchild Semiconductor |
1,727 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Bulk | Active | Optical Coupling | 1 | 4243Vrms | 35kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 2.5A, 2.5A | 3A | 1.45V | 25 mA | 3V ~ 15V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | IEC/EN/DIN, UL |
|
|
FOD3182SOPTOISO 5KV 1CH GATE DVR 8SMD Fairchild Semiconductor |
11,000 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UL |
