Isolators - Gate Drivers(3597)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FOD3184OPTOISO 5KV 1CH GATE DVR 8DIP |
970 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | UL |
|
NCV57080ADR2GDGTL ISO 1.2KV 1CH GT DVR 8SOIC |
1,998 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 1200Vrms | 100kV/µs | 85ns, 85ns | - | 13ns, 13ns | 8A, 8A | 8A | - | - | 0V ~ 32V | Automotive | AEC-Q100 | -40°C ~ 125°C (TA) | Surface Mount | 8-SOIC | - |
|
ACPL-W340-500EOPTOISO 5KV 1CH GATE DRIVER 6SO |
6,527 |
|
Datasheet
|
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
FOD8343OPTOISO 5KV 1CH GATE DVR 6SOP |
833 |
|
Datasheet
|
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 3A, 3A | 4A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | UR |
|
HCPL-J314-500EOPTOISO 3.75KV 1CH GT DVR 8DIP |
12,710 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
|

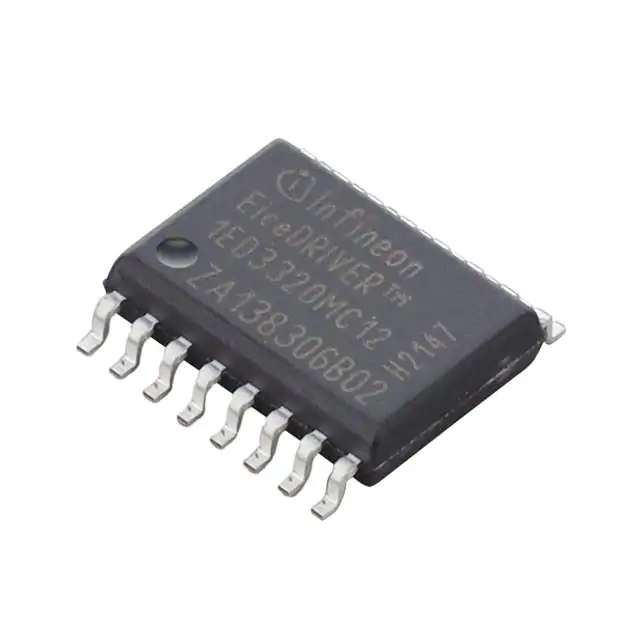

1ED3320MC12NXUMA1DGT ISO 5.7KV 1CH GT DVR DSO16 |
1,236 |
|
Datasheet
|
EiceDRIVER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 300kV/µs | 84ns, 92ns | - | 15ns, 15ns | 3.3A, 6A | 5A, 5A | - | - | 40V | - | - | -40°C ~ 125°C (TA) | Surface Mount | PG-DSO-16-40 | UL |
|
|
FOD8480OPTOISO 5KV 1CH GATE DVR 6SOIC |
1,284 |
|
Datasheet
|
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 300ns, 300ns | 250ns | 15ns, 10ns | 2.5mA, 2.5mA | - | 1.4V | 20 mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | IEC/EN/DIN, UL |
|
|
CPC1590POPTOISO 3.75KV GATE DRVR 8FLTPCK |
3,998 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 3750Vrms | - | - | - | - | - | - | 1.27V | 50 mA | - | - | - | -40°C ~ 110°C | Surface Mount | 8-Flatpack | UR |
|
|
ACPL-W314-000EOPTOISO 5KV 1CH GATE DVR 6SO |
2,871 |
|
Datasheet
|
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO | CSA, UR |
|
|
NCD57080ADR2GDGTL ISO 3.75KV 1CH GT DVR 8SOIC |
14,494 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 100kV/µs | 85ns, 85ns | - | 13ns, 13ns | 8A, 8A | 8A | - | - | 0V ~ 32V | - | - | -40°C ~ 125°C (TA) | Surface Mount | 8-SOIC | - |
|
|
NCV57080BDR2GDGTL ISO 3.75KV 1CH GT DVR 8SOIC |
1,978 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 100kV/µs | 90ns, 90ns | - | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | - |
|
SI8285CC-ISRDGT ISO 3.75KV 1CH GT DVR 16SOIC |
1,905 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 13.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
ACPL-P314-500EOPTOISO 3.75KV 1CH GATE DVR 6SO |
10,857 |
|
Datasheet
|
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO | CSA, UR |
|
ACPL-T350-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP |
6,002 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 15ns, 20ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, UR |
|
UCC21542DWKRDGT ISO 1.85KV 2CH GT DVR 14SOIC |
4,960 |
|
Datasheet
|
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 1850Vrms | 100V/ns | 40ns, 40ns | 5.5ns | 5ns, 6ns | 4A, 6A | 4A | - | - | 9.2V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, UL, VDE |
|
|
ACPL-T350-500EOPTOISO 3.75KV 1CH GT DVR 8DIP |
1,977 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 15ns, 20ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
FOD3180TVOPTOISO 5KV 1CH GATE DVR 8MDIP |
1,099 |
|
Datasheet
|
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 200ns, 200ns | 65ns | 75ns, 55ns | 2A, 2A | 2.5A | 1.43V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-MDIP | cUL, UL, VDE |
|
FOD3182SDVOPTOISO 5KV 1CH GATE DVR 8SMD |
1,752 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UL, VDE |
|
FOD3182TSR2VOPTOISO 5KV 1CH GATE DVR 8SMD |
1,094 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UL, VDE |
|
|
FOD3182VOPTOISO 5KV 1CH GATE DVR 8DIP |
691 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | UL, VDE |
