Isolators - Gate Drivers(3597)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI82390AD-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82391BD-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 10V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82391CD-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 12.8V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82396BD-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 10V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82398CD-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 12.8V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82394BD4-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 135ns, 95ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 10V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82394CD4-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 135ns, 95ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 12.8V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82398AD4-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 135ns, 95ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82398BD4-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 135ns, 95ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 10V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82398CD4-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 135ns, 95ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 12.8V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
SI82393CD-ISDGT ISO 3.25KV 2CH GT DVR 14SOIC |
0 |
|
Datasheet
|
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 12.8V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UR, VDE |
|
SI82520BD-AS3DGTL ISO 5KV 1CH GATE DVR 14SOIC |
0 |
|
Datasheet
|
Si8252x | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82520BB-IM1DGTL ISO 2.5KV 1CH GT DVR 14DFN |
0 |
|
Datasheet
|
Si8252x | 14-VDFN | Tube | Obsolete | Capacitive Coupling | 1 | 2500Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-DFN (5x5) | CQC, CSA, UL, VDE |
|
|
SI82520CB-IM1DGTL ISO 2.5KV 1CH GT DVR 14DFN |
0 |
|
Datasheet
|
Si8252x | 14-VDFN | Tube | Obsolete | Capacitive Coupling | 1 | 2500Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-DFN (5x5) | CQC, CSA, UL, VDE |
|
|
SI82521AB-IM1DGTL ISO 2.5KV 1CH GT DVR 14DFN |
0 |
|
Datasheet
|
Si8252x | 14-VDFN | Tube | Obsolete | Capacitive Coupling | 1 | 2500Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-DFN (5x5) | CQC, CSA, UL, VDE |
|
|
SI82521CB-IM1DGTL ISO 2.5KV 1CH GT DVR 14DFN |
0 |
|
Datasheet
|
Si8252x | 14-VDFN | Tube | Obsolete | Capacitive Coupling | 1 | 2500Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-DFN (5x5) | CQC, CSA, UL, VDE |
|
|
SI82520AB-IM1DGTL ISO 2.5KV 1CH GT DVR 14DFN |
0 |
|
Datasheet
|
Si8252x | 14-VDFN | Tube | Obsolete | Capacitive Coupling | 1 | 2500Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-DFN (5x5) | CQC, CSA, UL, VDE |
|
|
SI82521BB-IM1DGTL ISO 2.5KV 1CH GT DVR 14DFN |
0 |
|
Datasheet
|
Si8252x | 14-VDFN | Tube | Obsolete | Capacitive Coupling | 1 | 2500Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-DFN (5x5) | CQC, CSA, UL, VDE |
|

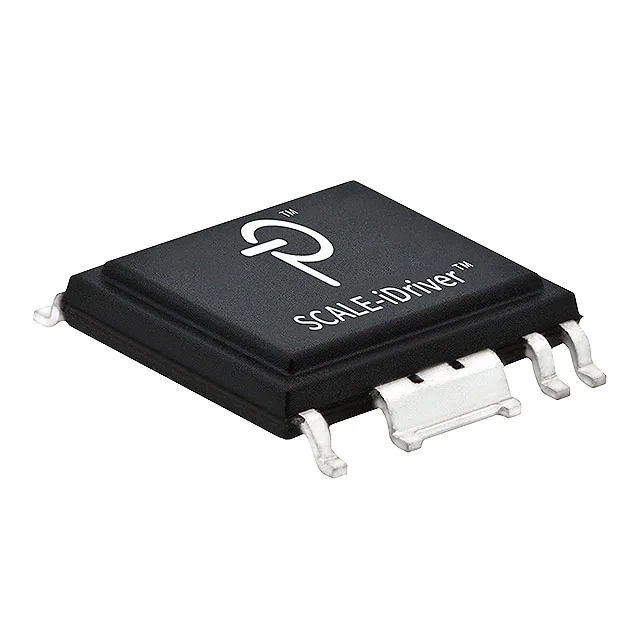

SID1182KDGT ISO 5KV 1CH GT DVR ESOP-R16B |
5 |
|
Datasheet
|
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | - | 340ns, 330ns | - | 90ns, 81ns | 3.6A, 4A | 8A | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | - |
|
|
SID1182K-TLDGT ISO 5KV 1CH GT DVR ESOP-R16B |
0 |
|
Datasheet
|
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | - | 340ns, 330ns | - | 90ns, 81ns | 3.6A, 4A | 8A | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | - |
