Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82559A5682A020FIXED IND 6.8UH 2.9 MOHM SMD EPCOS - TDK Electronics |
260 |
|
Datasheet
|
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | - | 19A | Shielded | 2.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.402" (10.20mm) |
|
|
B82559A0203A020FIXED IND 20UH 6.4 MOHM SMD EPCOS - TDK Electronics |
222 |
|
Datasheet
|
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 20 µH | ±10% | - | 14.3A | Shielded | 6.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.571" (14.50mm) |
|
ERU27M-2R3LFLAT WIRE SMD HIGH CURRENT IND 2 EPCOS - TDK Electronics |
318 |
|
Datasheet
|
ERU27M | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Wirewound | Alloy Powder | 2.3 µH | ±20% | 48 A | 85A | Shielded | 0.68mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.067" L x 1.006" W (27.10mm x 25.55mm) | 0.579" (14.70mm) |
|
|
ERU27M-6R2LFLAT WIRE SMD HIGH CURRENT IND 6 EPCOS - TDK Electronics |
287 |
|
Datasheet
|
ERU27M | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Wirewound | Alloy Powder | 6.2 µH | ±20% | 37 A | 55A | Shielded | 1.39mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.067" L x 1.006" W (27.10mm x 25.55mm) | 0.622" (15.80mm) |
|
|
ERU27M-3R9LFLAT WIRE SMD HIGH CURRENT IND 3 EPCOS - TDK Electronics |
272 |
|
Datasheet
|
ERU27M | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Wirewound | Alloy Powder | 3.9 µH | ±20% | 46 A | 68A | Shielded | 0.88mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.067" L x 1.006" W (27.10mm x 25.55mm) | 0.634" (16.10mm) |
|
|
ERU27M-8R5LFLAT WIRE SMD HIGH CURRENT IND 8 EPCOS - TDK Electronics |
238 |
|
Datasheet
|
ERU27M | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Wirewound | Alloy Powder | 8.5 µH | ±20% | 36 A | 46A | Shielded | 1.66mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.067" L x 1.006" W (27.10mm x 25.55mm) | 0.669" (17.00mm) |
|
B82498F3330G000FIXED IND 33NH 600MA 110MOHM SMD EPCOS - TDK Electronics |
3,000 |
|
Datasheet
|
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±2% | 600 mA | - | Unshielded | 110mOhm Max | 65 @ 500MHz | 2.2GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82498F3560G000FIXED IND 56NH 600MA 140MOHM SMD EPCOS - TDK Electronics |
3,000 |
|
Datasheet
|
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±2% | 600 mA | - | Unshielded | 140mOhm Max | 60 @ 500MHz | 1.7GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82432C1333J000FIXED IND 33UH 230MA 1.85OHM SMD EPCOS - TDK Electronics |
5,000 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 230 mA | - | Unshielded | 1.85Ohm Max | 30 @ 2.52MHz | 13MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

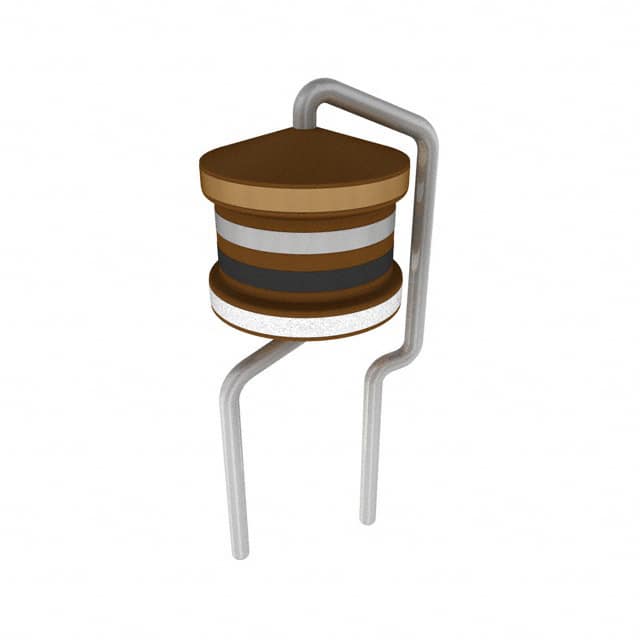

B82144B2183K000FIXED IND 18UH 2.2A 155 MOHM TH EPCOS - TDK Electronics |
3,944 |
|
Datasheet
|
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 2.2 A | 2.25A | Unshielded | 155mOhm Max | 50 @ 252kHz | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
