Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

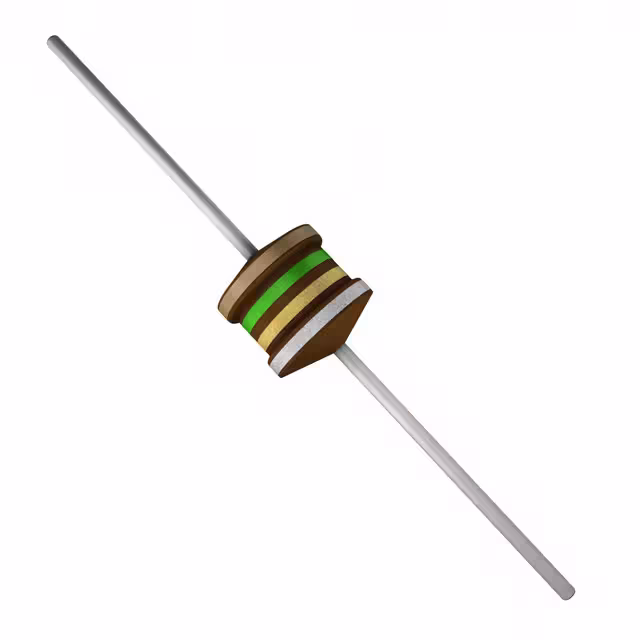

B82144F2152K000FIXED IND 1.5UH 4.1A 0.045OHM TH EPCOS - TDK Electronics |
1,833 |
|
Datasheet
|
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 4.1 A | 7.2A | Unshielded | 45mOhm Max | 60 @ 2.52MHz | 170MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82498F3390G000FIXED IND 39NH 600MA 120MOHM SMD EPCOS - TDK Electronics |
1,780 |
|
Datasheet
|
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±2% | 600 mA | - | Unshielded | 120mOhm Max | 65 @ 500MHz | 2.1GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82432C1473J000FIXED IND 47UH 210MA 2.3 OHM SMD EPCOS - TDK Electronics |
10,271 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 210 mA | - | Unshielded | 2.3Ohm Max | 30 @ 2.52MHz | 12MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
B82462A4153K000FIXED IND 15UH 900MA 210MOHM SMD EPCOS - TDK Electronics |
9,746 |
|
Datasheet
|
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 900 mA | 1.5A | Unshielded | 210mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
B82472G4683M000FIXED IND 68UH 690MA 460MOHM SMD EPCOS - TDK Electronics |
2,389 |
|
Datasheet
|
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 690 mA | 600mA | Shielded | 460mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
B82472G4473M000FIXED IND 47UH 860MA 300MOHM SMD EPCOS - TDK Electronics |
12,397 |
|
Datasheet
|
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 860 mA | 650mA | Shielded | 300mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
B82472G4102M000FIXED IND 1UH 3.45A 18 MOHM SMD EPCOS - TDK Electronics |
1,161 |
|
Datasheet
|
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.45 A | 2.9A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
B82472G4333M000FIXED IND 33UH 940MA 250MOHM SMD EPCOS - TDK Electronics |
1,110 |
|
Datasheet
|
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 940 mA | 720mA | Shielded | 250mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
B82472G4184M000FIXED IND 180UH 470MA 950MOHM SM EPCOS - TDK Electronics |
1,301 |
|
Datasheet
|
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 470 mA | 320mA | Shielded | 950mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
B82471A1103M000FIXED IND 10UH 1.44A 100MOHM SMD EPCOS - TDK Electronics |
696 |
|
Datasheet
|
B82471A1 | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.44 A | 1.8A | Unshielded | 100mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.220" W (6.10mm x 5.60mm) | 0.193" (4.90mm) |
