Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

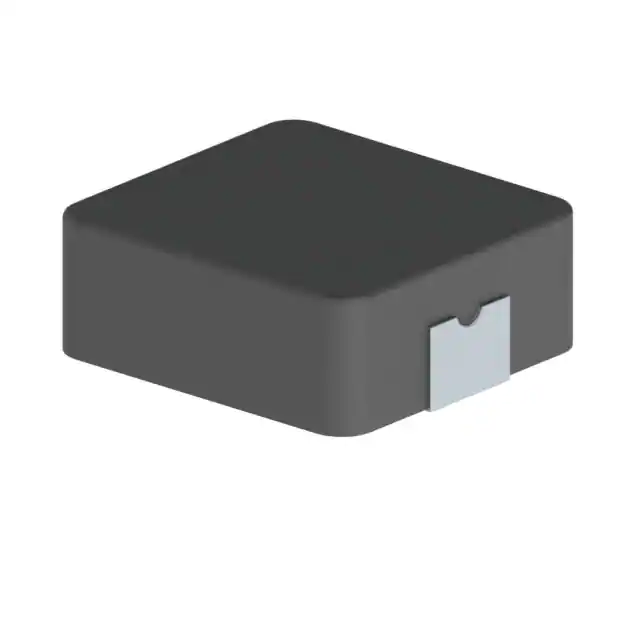

HCM1A1305-2R2-RFIXED IND 2.2UH 15A 5.29MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 2.2 µH | ±20% | 15 A | 18A | Shielded | 5.29mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|

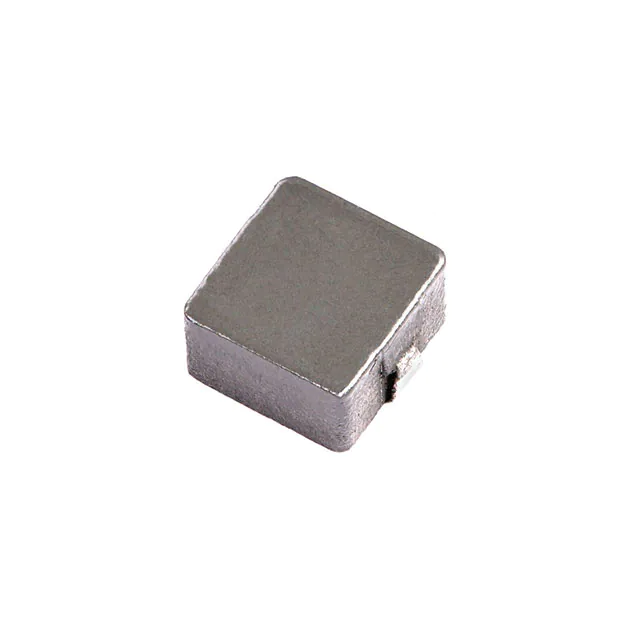

HCMA1307-1R5-RFIXED IND 1.5UH Eaton - Electronics Division |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | 1.5 µH | - | - | - | - | - | - | - | - | - | 100 kHz | - | - | - | - | - |
|

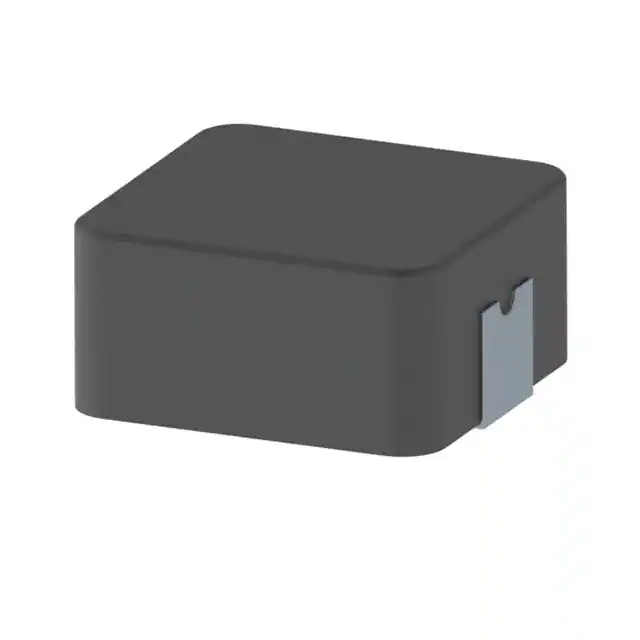

HCM1A1307-100-RFIXED IND 10UH 6.3A 17.5MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 6.3 A | 12A | Shielded | 17.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-1R0-RFIXED IND 1UH 28A 1.77 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 28 A | 30A | Shielded | 1.77mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-330-RFIXED IND 33UH 4.7A 45 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 4.7 A | 6A | Shielded | 45mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-3R3-RFIXED IND 3.3UH 15.6A 4.3MOHM SM Eaton - Electronics Division |
0 |
|
Datasheet
|
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 15.6 A | 20A | Shielded | 4.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-4R7-RFIXED IND 4.7UH 11A 7.5MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 11 A | 15A | Shielded | 7.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-R47-RFIXED IND 470NH 36.5A 1.05 MOHM Eaton - Electronics Division |
0 |
|
Datasheet
|
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 36.5 A | 72A | Shielded | 1.05mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
HC2-4R7TR-RFIXED IND 4.7UH 17A 4.6 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
HC2 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 17 A | 21.25A | Unshielded | 4.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-6R0TR-RFIXED IND 6UH 17A 4.6 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
HC2 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6 µH | ±20% | 17 A | 16.5A | Unshielded | 4.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
