Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

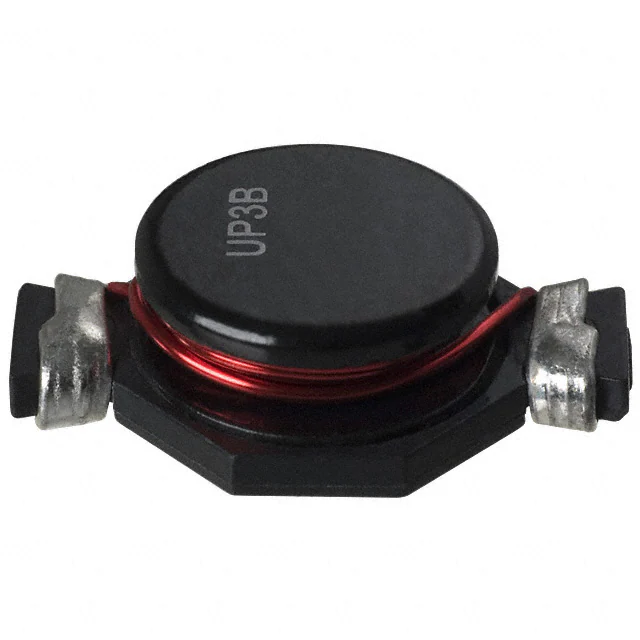

UP3B-3R3-RFIXED IND 3.3UH 8A 8.3 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 8 A | 9.3A | Unshielded | 8.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|

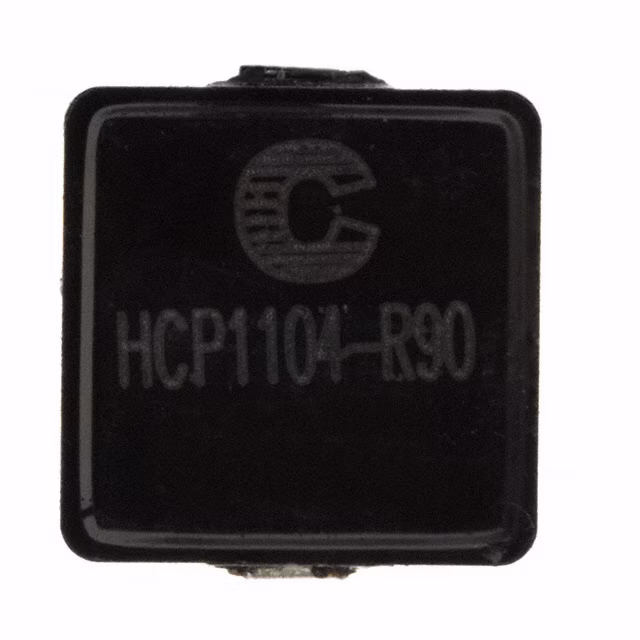

HCP1104-R90-RFIXED IND 900NH 22A 2.5 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
HCP1104 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 900 nH | ±20% | 22 A | 25A | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
TL1211V3-R150-RTRANS IND 150NH 84A 4PADS SMT Eaton - Electronics Division |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SD25-1R5-RFIXED IND 1.5UH 3.12A 27.4 MOHM Eaton - Electronics Division |
0 |
|
Datasheet
|
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.12 A | 3.23A | Shielded | 27.4mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|

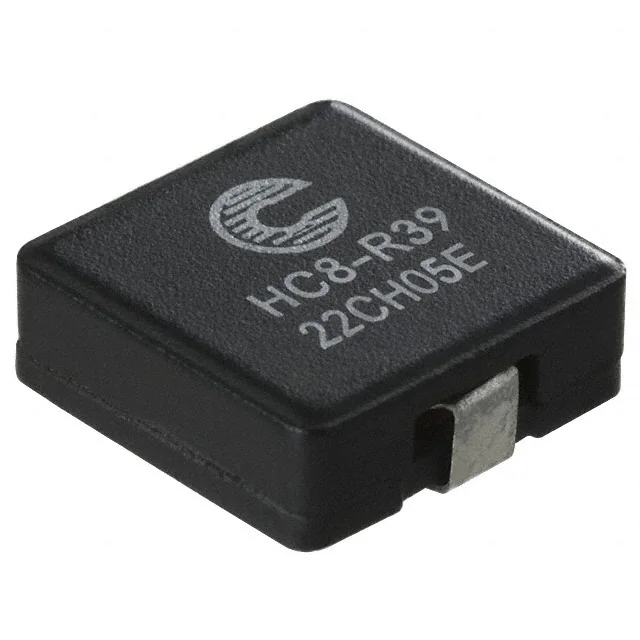

HC8-R39-RFIXED IND 390NH 28.3A 1.55 MOHM Eaton - Electronics Division |
0 |
|
Datasheet
|
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 390 nH | ±20% | 28.3 A | 45A | Unshielded | 1.55mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|
HC7-R47-RFIXED IND 470NH 23.4A 1.6MOHM SM Eaton - Electronics Division |
0 |
|
Datasheet
|
HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 23.4 A | 51.9A | Unshielded | 1.6mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | 0.217" (5.50mm) |
|

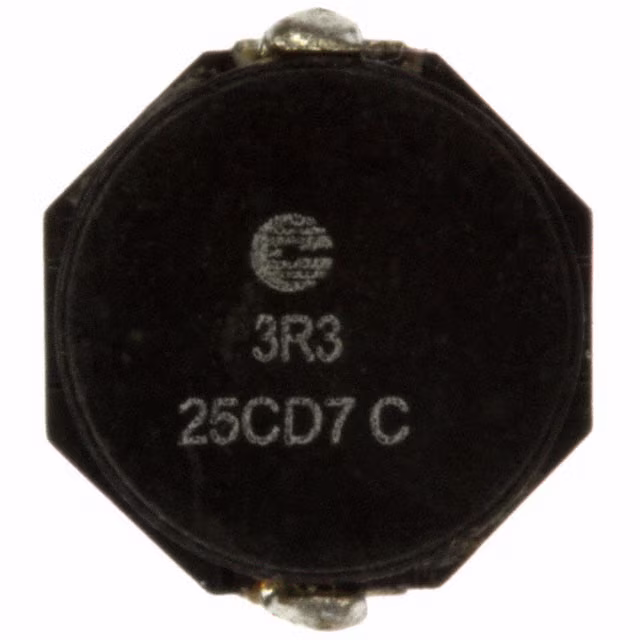

SD8328-3R3-RFIXED IND 3.3UH 6.1A 18 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 6.1 A | 4A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
SD8328-680-RFIXED IND 68UH 980MA 286MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 980 mA | 1A | Shielded | 286mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
|
CPL-5-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.772" L x 0.335" W (45.00mm x 8.50mm) | 0.189" (4.80mm) |
|
HCM1A1104-100-RFIXED IND 10UH 5A 30 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 5 A | 6A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
