Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP0807R1-R10-RFIXED IND 100NH 49A 0.5 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
FLAT-PAC, FP0807 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 49 A | 77A | Unshielded | 0.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.276" (7.00mm) |
|
FP0507V1-R050-RFIXED IND 50NH 80A Eaton - Electronics Division |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | 50 nH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MP2A-220-RFIXED IND 22UH 980MA 311MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 22 µH | ±20% | 980 mA | 970mA | Unshielded | 311mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
|
MP2A-8R2-RFIXED IND 8.2UH 1.34A 167MOHM SM Eaton - Electronics Division |
0 |
|
Datasheet
|
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 8.2 µH | ±20% | 1.34 A | 1.54A | Unshielded | 167mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
UP2B-R47-RFIXED IND 470NH 10.6A 4.9MOHM SM Eaton - Electronics Division |
0 |
|
Datasheet
|
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 10.6 A | 11.4A | Unshielded | 4.9mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
FP1007R6-R18-RFIXED IND 180NH 61A 0.29MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
FLAT-PAC, FP1007R6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±10% | 61 A | 60A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.276" (7.00mm) |
|
|
MP2A-100-RFIXED IND 10UH 1.29A 179MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 10 µH | ±20% | 1.29 A | 1.42A | Unshielded | 179mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
|
FP0812V1-R150-RIND FLAT PAC 150NH 64A SMT 2 PAD Eaton - Electronics Division |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

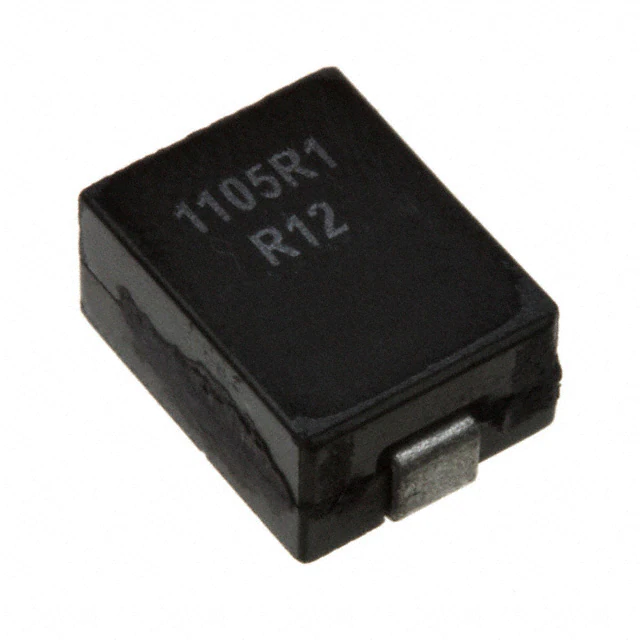

FP1105R1-R12-RFIXED IND 120NH 46A 0.35MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
FLAT-PAC, FP1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 46 A | 66A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.193" (4.90mm) |
|
FP1007R2-R17-RFIXED IND 170NH 51A 0.48MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 170 nH | ±10% | 51 A | 58A | Unshielded | 0.48mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.256" (6.50mm) |
