Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP1012V2-R080-RIND FLAT PAC 80NH 130A 2 PADS Eaton - Electronics Division |
0 |
|
Datasheet
|
FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 80 nH | ±10% | 84 A | 130A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
UP2.8B-390-RFIXED IND 39UH SMD Eaton - Electronics Division |
0 |
|
- |
UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | - | - | - | Unshielded | - | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|
DR74-101FIXED IND 100UH 860MA 383MOHM SM Eaton - Electronics Division |
0 |
|
Datasheet
|
DR | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 860 mA | 990mA | Shielded | 383mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|

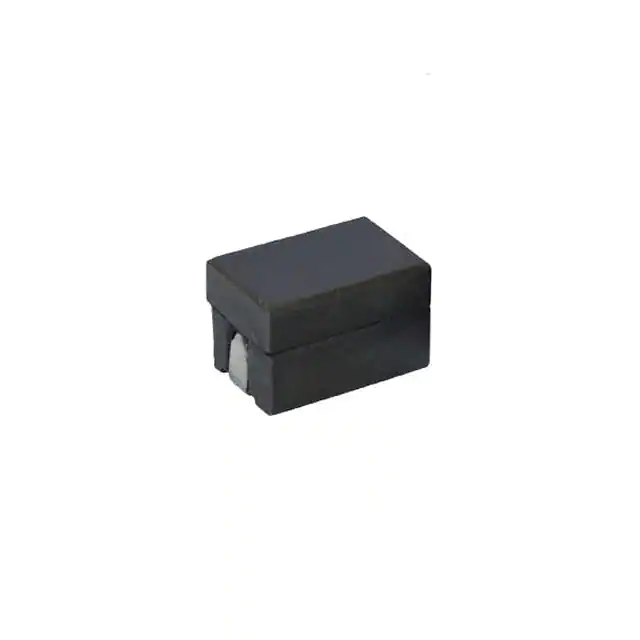

FP1108B1-R180-RFIXED IND 180NH 40A 0.29MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
FP1108 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | ±10% | 40 A | 50A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.315" W (11.60mm x 8.00mm) | 0.315" (8.00mm) |
|
HCM1A1104-330-RFIXED IND 33UH 2.8A 105MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 2.8 A | 4.8A | Shielded | 105mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
HCM1A1104-R90-RFIXED IND 900NH 20A 2.5MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 900 nH | ±20% | 20 A | 22A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
DRA124-820-RFIXED IND 82UH 1.285A 257MOHM SM Eaton - Electronics Division |
0 |
|
Datasheet
|
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 1.285 A | 2.232A | Shielded | 257mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
FP0609V1-R100-RFLAT-PAC IND 100NH 69A SMT 2 Eaton - Electronics Division |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UP3B-150-RFIXED IND 15UH 3.9A 31.7MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.9 A | 4.3A | Unshielded | 31.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|
MPIA4040R4-100-RFIXED IND 10UH 1.9A 148 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet
|
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 10 µH | ±20% | 1.9 A | 2.6A | Shielded | 148mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
