Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1812PS-222KRCFIXED IND 2.2UH 2.4A 70MOHM SM Coilcraft |
1,389 |
|
Datasheet
|
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 2.2 µH | ±10% | 2.4 A | 1.7A | Shielded | 70mOhm Max | 38 @ 1MHz | 270MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|

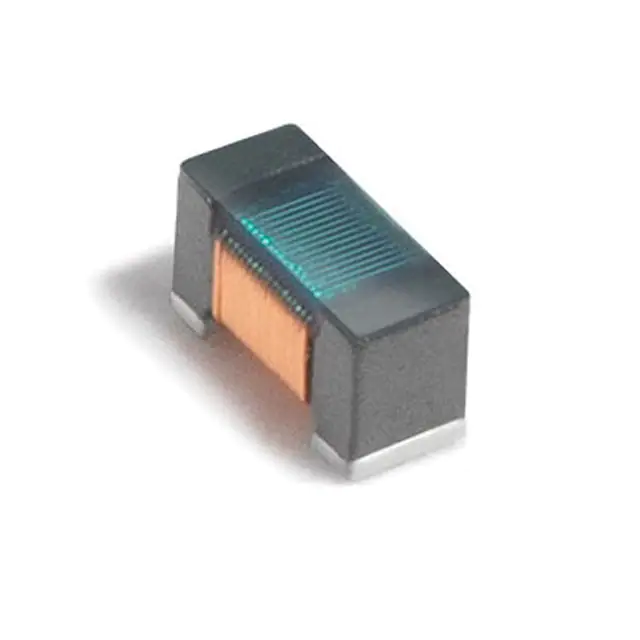

0402DF-151XJRWFIXED IND 150NH 830MA 130MOHM SM Coilcraft |
1,368 |
|
Datasheet
|
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 150 nH | ±5% | 830 mA | - | Unshielded | 130mOhm Max | - | 1.8GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-560XJRWFIXED IND 56NH 1.2A 61 MOHM SMD Coilcraft |
938 |
|
Datasheet
|
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 56 nH | ±5% | 1.2 A | - | Unshielded | 61mOhm Max | - | 2.2GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
1812PS-223KRCFIXED IND 22UH 1.2A 330MOHM SM Coilcraft |
781 |
|
Datasheet
|
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 22 µH | ±10% | 1.2 A | 540mA | Shielded | 330mOhm Max | 40 @ 1MHz | 45MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
1812PS-472KRCFIXED IND 4.7UH 2.1A 110MOHM SM Coilcraft |
600 |
|
Datasheet
|
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 4.7 µH | ±10% | 2.1 A | 1.15A | Shielded | 110mOhm Max | 40 @ 1MHz | 165MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
0402DF-330XJRWFIXED IND 33NH 1.3A 55 MOHM SMD Coilcraft |
563 |
|
Datasheet
|
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 33 nH | ±5% | 1.3 A | - | Unshielded | 55mOhm Max | - | 2.55GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
1812PS-105KRCFIXED IND 1MH 220MA 10OHM SM Coilcraft |
485 |
|
Datasheet
|
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 1 mH | ±10% | 220 mA | 80mA | Shielded | 10Ohm Max | 28 @ 1MHz | 1.8MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
1812PS-393KRCFIXED IND 39UH 1A 560MOHM SM Coilcraft |
323 |
|
Datasheet
|
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 39 µH | ±10% | 1 A | 400mA | Shielded | 560mOhm Max | 48 @ 1MHz | 30MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
1812PS-474KRCFIXED IND 470UH 310MA 5.85OHM SM Coilcraft |
248 |
|
Datasheet
|
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 470 µH | ±10% | 310 mA | 120mA | Shielded | 5.85Ohm Max | 50 @ 1MHz | 4MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
1812PS-684KRCFIXED IND 680UH 280MA 6.6OHM SM Coilcraft |
213 |
|
Datasheet
|
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 680 µH | ±10% | 280 mA | 100mA | Shielded | 6.6Ohm Max | 40 @ 1MHz | 2.3MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
