Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

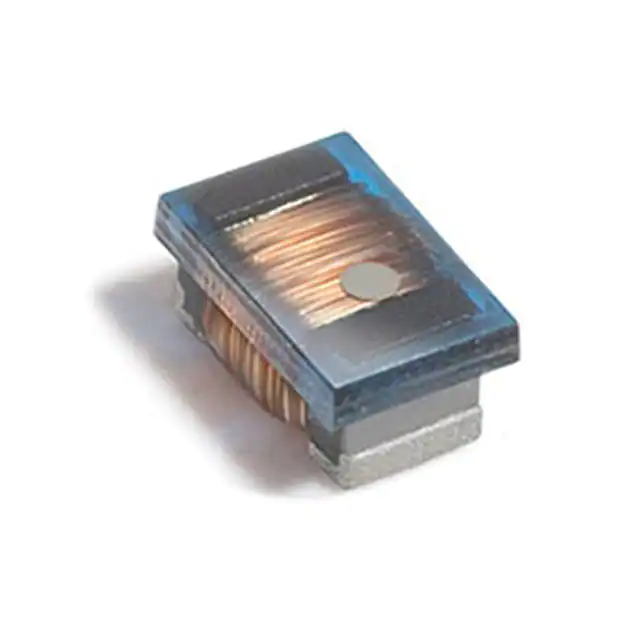

0603AF-201XJRWFIXED IND 200NH 1.4A 115MOHM SMD Coilcraft |
726 |
|
Datasheet
|
0603AF | Nonstandard | Strip | Active | Wirewound | Ferrite | 200 nH | ±5% | 1.4 A | - | Unshielded | 115mOhm Max | 15 @ 7.9MHz | 880MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
|
0603AF-68NXJRWFIXED IND 68NH 880MA 150MOHM SMD Coilcraft |
379 |
|
Datasheet
|
0603AF | Nonstandard | Strip | Active | Wirewound | Ferrite | 68 nH | ±5% | 880 mA | - | Unshielded | 150mOhm Max | 15 @ 7.9MHz | 1.5GHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
0603LS-241XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
355 |
|
Datasheet
|
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 240 nH | ±5% | 950 mA | - | Unshielded | 160mOhm Max | 15 @ 7.9MHz | 800MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.044" (1.11mm) |
|
LPS6225-333MRCFIXED IND 33UH 900MA 260MOHM SM Coilcraft |
13,503 |
|
Datasheet
|
LPS6225 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core | Ferrite | 33 µH | ±20% | 900 mA | 1.1A | Shielded | 260mOhm Max | - | 14MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
LPS6225-106MRCFIXED IND 10MH 65MA 70OHM SM Coilcraft |
8,867 |
|
Datasheet
|
LPS6225 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core | Ferrite | 10 mH | ±20% | 65 mA | 75mA | Shielded | 70Ohm Max | - | 680kHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
LPS6225-105MRCFIXED IND 1MH 240MA 6OHM SM Coilcraft |
3,609 |
|
Datasheet
|
LPS6225 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1 mH | ±20% | 240 mA | 150mA | Shielded | 6Ohm Max | - | 2.3MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
LPS6225-223MRCFIXED IND 22UH 1.1A 175MOHM SM Coilcraft |
3,418 |
|
Datasheet
|
LPS6225 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core | Ferrite | 22 µH | ±20% | 1.1 A | 1.4A | Shielded | 175mOhm Max | - | 17MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
LPS6225-103MRCFIXED IND 10UH 1.3A 105MOHM SM Coilcraft |
2,634 |
|
Datasheet
|
LPS6225 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core | Ferrite | 10 µH | ±20% | 1.3 A | 2.5A | Shielded | 105mOhm Max | - | 35MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
LPS6225-472MRCFIXED IND 4.7UH 1.3A 65MOHM SM Coilcraft |
2,529 |
|
Datasheet
|
LPS6225 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core | Ferrite | 4.7 µH | ±20% | 1.3 A | 3A | Shielded | 65mOhm Max | - | 53MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
LPS6225-222MRCFIXED IND 2.2UH 1.4A 45MOHM SM Coilcraft |
1,691 |
|
Datasheet
|
LPS6225 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core | Ferrite | 2.2 µH | ±20% | 1.4 A | 3.9A | Shielded | 45mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
