Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

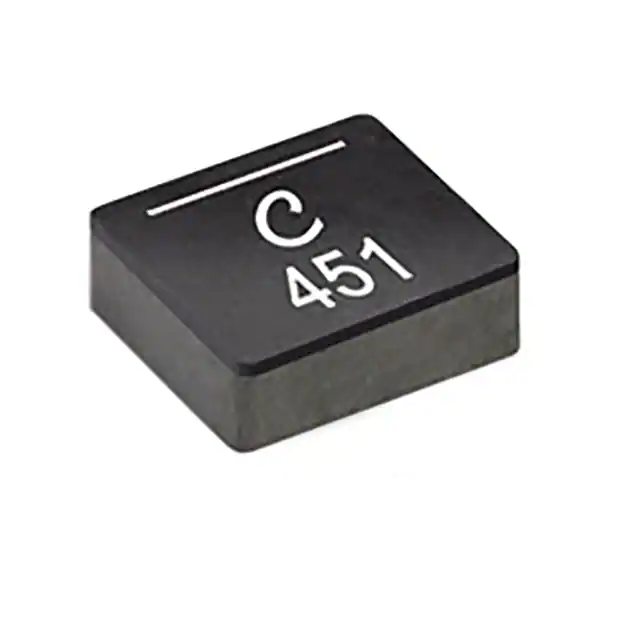

XGL3515-681MECFIXED INDUCTOR 0.68UH SMD Coilcraft |
4,920 |
|
Datasheet
|
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 680 nH | ±20% | 9.5 A | 6.4A | Shielded | 13.3mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
XGL3512-201MECFIXED INDUCTOR 0.2UH SMD Coilcraft |
4,674 |
|
Datasheet
|
XGL3512 | Nonstandard | Strip | Active | Molded | - | 200 nH | ±20% | 11.3 A | 10A | Shielded | 7.3mOhm Max | - | 175MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
XGL3515-900MECFIXED INDUCTOR 0.09UH SMD Coilcraft |
4,443 |
|
Datasheet
|
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 90 nH | ±20% | 26.6 A | 17.8A | Shielded | 2.6mOhm Max | - | 350MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3515-561MECFIXED INDUCTOR 0.56UH SMD Coilcraft |
4,362 |
|
Datasheet
|
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 560 nH | ±20% | 10.9 A | 6.6A | Shielded | 11.8mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3515-181MECFIXED INDUCTOR 0.18UH SMD Coilcraft |
3,682 |
|
Datasheet
|
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 180 nH | ±20% | 20.4 A | 12.4A | Shielded | 4.1mOhm Max | - | 205MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3515-152MECFIXED INDUCTOR 1.5UH SMD Coilcraft |
3,423 |
|
Datasheet
|
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.5 µH | ±20% | 6.1 A | 3.9A | Shielded | 36.3mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
XGL3512-102MECFIXED INDUCTOR 1UH SMD Coilcraft |
3,182 |
|
Datasheet
|
XGL3512 | Nonstandard | Strip | Active | Molded | - | 1 µH | ±20% | 4.9 A | 4.5A | Shielded | 32.2mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
XGL3512-820MECFIXED INDUCTOR 0.082UH SMD Coilcraft |
3,015 |
|
Datasheet
|
XGL3512 | Nonstandard | Strip | Active | Molded | - | 82 nH | ±20% | 15.7 A | 17.3A | Shielded | 3.3mOhm Max | - | 340MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
XGL3512-331MECFIXED INDUCTOR 0.33UH SMD Coilcraft |
2,950 |
|
Datasheet
|
XGL3512 | Nonstandard | Strip | Active | Molded | - | 330 nH | ±20% | 8.6 A | 7.8A | Shielded | 12.5mOhm Max | - | 135MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
XGL3515-222MECFIXED INDUCTOR 2.2UH SMD Coilcraft |
2,386 |
|
Datasheet
|
XGL3515 | Nonstandard | Strip | Active | Molded | Metal Composite | 2.2 µH | ±20% | 5.1 A | 3.2A | Shielded | 46.7mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
