Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBX0630-1R5MSMD HIGH CURRENT POWER INDUCTOR CODACA |
1,500 |
|
Datasheet
|
CSBX0630 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 1.5 µH | ±20% | 8.7 A | 15A | Shielded | 9.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.118" (3.00mm) |
|

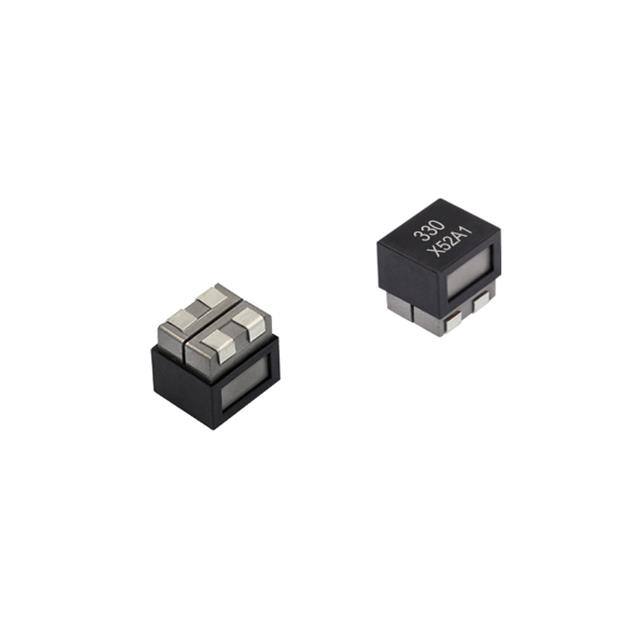

CSAD0660-220MSMD MOLDING POWER CHOKE CODACA |
800 |
|
Datasheet
|
CSAD0660 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | 22 µH | ±20% | 2.4 A | 4.3A | Shielded | 112mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.299" (7.60mm) |
|
|
CSAD0660-4R7MSMD MOLDING POWER CHOKE CODACA |
785 |
|
Datasheet
|
CSAD0660 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 5.5 A | 12A | Shielded | 23mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.299" (7.60mm) |
|
|
CSAD0660-100MSMD MOLDING POWER CHOKE CODACA |
667 |
|
Datasheet
|
CSAD0660 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 3.5 A | 6.5A | Shielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.299" (7.60mm) |
|
|

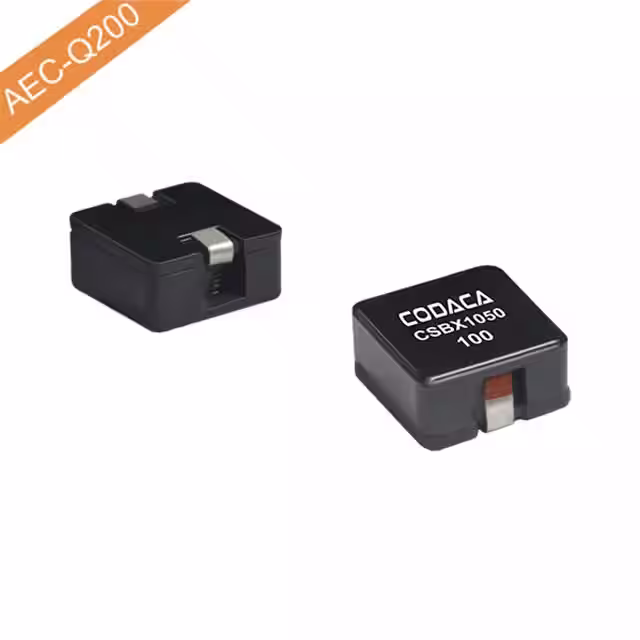

CSBX1050-8R2MSMD HIGH CURRENT POWER INDUCTOR CODACA |
700 |
|
Datasheet
|
CSBX1050 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 8.2 µH | ±20% | 8.1 A | 11.5A | Shielded | 15.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.185" (4.70mm) |
|
CSBX1050-150MSMD HIGH CURRENT POWER INDUCTOR CODACA |
665 |
|
Datasheet
|
CSBX1050 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 5.5 A | 8.75A | Shielded | 29.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | High Saturation | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.197" (5.00mm) |
|
CSBL1050-6R8MSMD HIGH CURRENT POWER INDUCTOR CODACA |
655 |
|
Datasheet
|
CSBL1050 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 9 A | 10A | Shielded | 12.1mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.197" (5.00mm) |
|
|
CSBX1050-100MSMD HIGH CURRENT POWER INDUCTOR CODACA |
566 |
|
Datasheet
|
CSBX1050 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 7.1 A | 10.2A | Shielded | 18.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | High Saturation | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.197" (5.00mm) |
|
|
CSBX1050-5R6MSMD HIGH CURRENT POWER INDUCTOR CODACA |
519 |
|
Datasheet
|
CSBX1050 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 10.3 A | 14A | Shielded | 9.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.433" L x 0.378" W (11.00mm x 9.60mm) | 0.197" (5.00mm) |
|
|
CSBL1050-150MSMD HIGH CURRENT POWER INDUCTOR CODACA |
400 |
|
Datasheet
|
CSBL1050 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 5.5 A | 7A | Shielded | 29.8mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.402" W (12.20mm x 10.20mm) | 0.197" (5.00mm) |
