Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

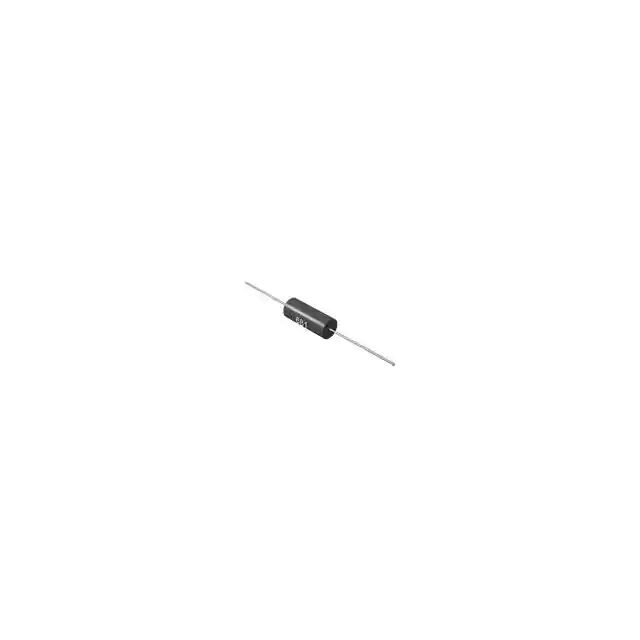

CTM2474F-222L2200UH AXIAL MOLDED INDUCTOR Central Technologies |
4 |
|
Datasheet
|
CTM2474F | Axial | Bulk | Active | Molded | - | 2.2 mH | ±15% | 280 mA | 140mA | Unshielded | 4.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|

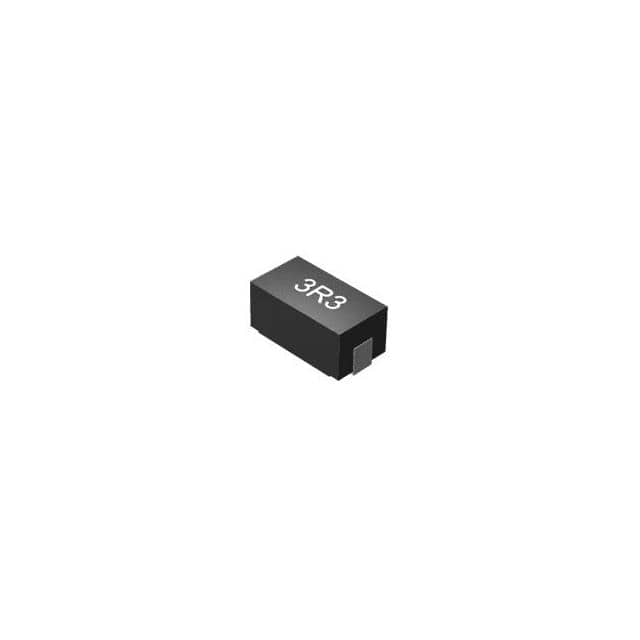

CTP1330F-184K180UH SMD MOLDED INDUCTOR Central Technologies |
16 |
|
Datasheet
|
CTP1330F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 180 µH | ±10% | 261 mA | 89mA | Unshielded | 2.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.311" L x 0.128" W (7.90mm x 3.25mm) | 0.142" (3.60mm) |
|

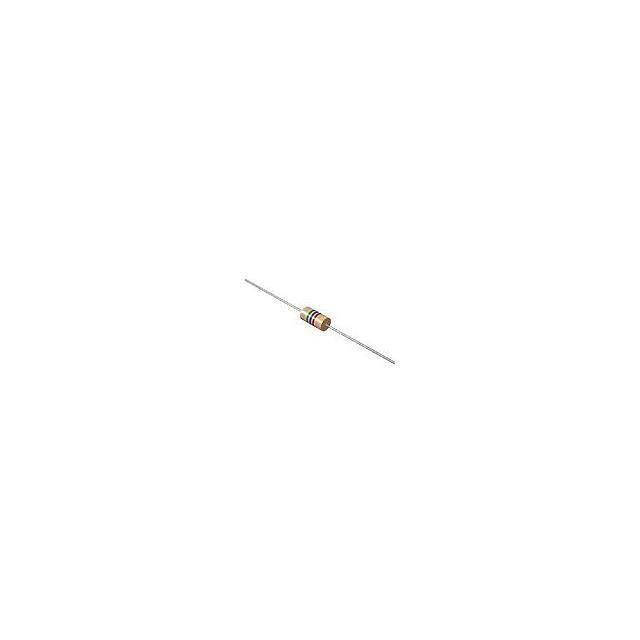

CTS1F-2R7K2.7UH AXL MOLDED SHLD INDUCTOR Central Technologies |
12 |
|
Datasheet
|
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 2.7 µH | ±10% | 577 mA | - | Shielded | 550mOhm Max | 32 @ 7.9MHz | 94MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTS1F-102J1000UH AXL OLDEDSHIELD INDUCTR Central Technologies |
10 |
|
Datasheet
|
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 1 mH | ±5% | 67 mA | - | Shielded | 39Ohm Max | 60 @ 790kHz | 4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTS1F-681J680UH AXL MOLDED SHLD INDUCTOR Central Technologies |
10 |
|
Datasheet
|
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 680 µH | ±5% | 82 mA | - | Shielded | 26Ohm Max | 60 @ 790kHz | 4.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTS1F-3R3K3.3UH AXL MOLDED SHLD INDUCTOR Central Technologies |
10 |
|
Datasheet
|
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±10% | 540 mA | - | Shielded | 620mOhm Max | 32 @ 7.9MHz | 86MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTS1F-100K10UH AXL MOLDED SHLD INDUCTOR Central Technologies |
9 |
|
Datasheet
|
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±10% | 280 mA | - | Shielded | 2.3Ohm Max | 45 @ 7.9MHz | 53MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTS1F-821J820UH AXL MOLDED SHLD INDUCTOR Central Technologies |
9 |
|
Datasheet
|
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 820 µH | ±5% | 72 mA | - | Shielded | 34Ohm Max | 60 @ 790kHz | 4.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTP1330F-224K220UH SMD MOLDED INDUCTOR Central Technologies |
8 |
|
Datasheet
|
CTP1330F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 220 µH | ±10% | 223 mA | 72mA | Unshielded | 2.648Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.311" L x 0.128" W (7.90mm x 3.25mm) | 0.142" (3.60mm) |
|

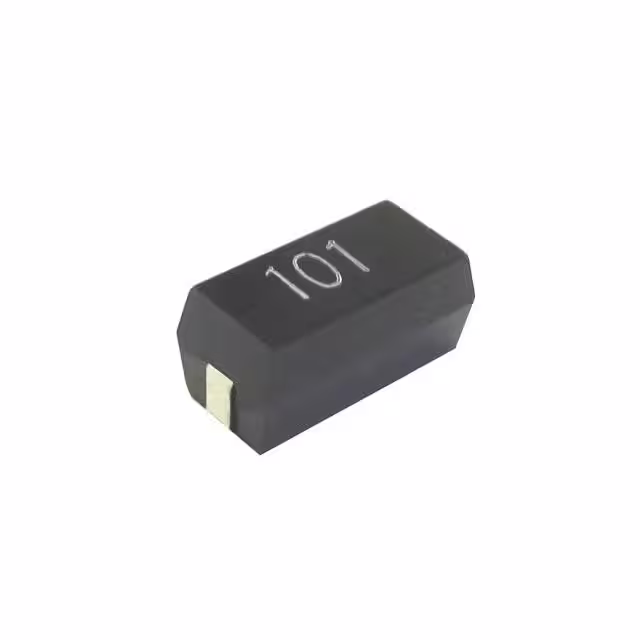

CTSMDS4F-100KSMD SHIELDED RF INDUCTOR Central Technologies |
7 |
|
- |
CTSMDS4F | 2-SMD, J-Lead | Bulk | Obsolete | - | - | 10 µH | ±10% | - | 532mA | Shielded | 1.27Ohm Max | 46 @ 7.9MHz | 53MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | SMD | 0.504" L x 0.238" W (12.80mm x 6.05mm) | 0.228" (5.80mm) |
