Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN6045-330MFIXED IND 33UH 1.4A 188 MOHM SMD Bourns Inc. |
1,184 |
|
Datasheet
|
SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.4 A | 1.5A | Shielded | 188mOhm Max | 17 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SRP2512A-4R7MFIXED IND 4.7UH 1.55A 235MOHM SM Bourns Inc. |
23,685 |
|
Datasheet
|
SRP2512A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.55 A | 1.9A | Shielded | 235mOhm Max | 39 @ 1MHz | 37MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

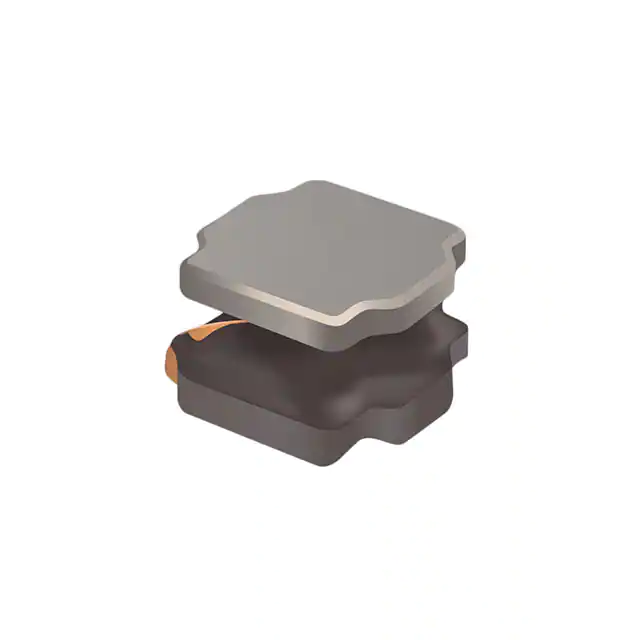

SRN6045TA-6R8MFIXED IND 6.8UH 3.6A 34 MOHM SMD Bourns Inc. |
63,253 |
|
Datasheet
|
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.6 A | 5.7A | Semi-Shielded | 34mOhm | 15 @ 1MHz | 30MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SDR0403-180MLFIXED IND 18UH 840MA 340MOHM SMD Bourns Inc. |
8,130 |
|
Datasheet
|
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 840 mA | 1.3A | Unshielded | 340mOhm Max | 25 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
RLB9012-102KLFIXED IND 1MH 510MA 2.9 OHM TH Bourns Inc. |
113,727 |
|
Datasheet
|
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 510 mA | - | Unshielded | 2.9Ohm Max | 20 @ 252kHz | 1.3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
SRN8040-101MFIXED IND 100UH 1A 400 MOHM SMD Bourns Inc. |
100,403 |
|
Datasheet
|
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1A | Shielded | 400mOhm Max | 10 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SRN8040-3R3YFIXED IND 3.3UH 5.6A 21 MOHM SMD Bourns Inc. |
14,406 |
|
Datasheet
|
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 5.6 A | 5.5A | Shielded | 21mOhm Max | 13 @ 7.96MHz | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SRN8040-2R2YFIXED IND 2.2UH 6.3A 13 MOHM SMD Bourns Inc. |
12,767 |
|
Datasheet
|
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6.3 A | 7.4A | Shielded | 13mOhm Max | 13 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SRN8040-470MFIXED IND 47UH 1.4A 190 MOHM SMD Bourns Inc. |
6,853 |
|
Datasheet
|
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.4 A | 1.5A | Shielded | 190mOhm Max | 15 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SRN8040-680MFIXED IND 68UH 1.1A 275 MOHM SMD Bourns Inc. |
1,414 |
|
Datasheet
|
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.1 A | 1.2A | Shielded | 275mOhm Max | 20 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
