Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WL03GT56NFIXED IND 56NH 600MA 310MOHM SMD Viking Tech |
0 |
|
Datasheet
|
WL | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±2% | 600 mA | - | Unshielded | 310mOhm Max | 38 @ 200MHz | 1.9GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WL05JT15NFIXED IND 15NH 600MA 170MOHM SMD Viking Tech |
0 |
|
Datasheet
|
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 600 mA | - | Unshielded | 170mOhm Max | 50 @ 500MHz | 3.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL05GTR68FIXED IND 680NH 190MA 2.2OHM SMD Viking Tech |
0 |
|
Datasheet
|
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±2% | 190 mA | - | Unshielded | 2.2Ohm Max | 23 @ 50MHz | 200MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL05JT2N8FIXED IND 2.8NH 800MA 60MOHM SMD Viking Tech |
0 |
|
Datasheet
|
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.8 nH | ±5% | 800 mA | - | Unshielded | 60mOhm Max | 80 @ 1.5GHz | 7.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL05JT4R7FIXED IND 4.7NH 600MA 80MOHM SMD Viking Tech |
0 |
|
Datasheet
|
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 µH | ±5% | 600 mA | - | Unshielded | 80mOhm Max | 65 @ 1GHz | 5.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL05GT22NFIXED IND 22NH 500MA 220MOHM SMD Viking Tech |
0 |
|
Datasheet
|
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 500 mA | - | Unshielded | 220mOhm Max | 55 @ 500MHz | 2.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
ML05KT5R6FIXED IND 5.6UH 15MA 900MOHM SMD Viking Tech |
0 |
|
Datasheet
|
ML | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 5.6 µH | ±10% | 15 mA | - | Unshielded | 900mOhm Max | 50 @ 4MHz | 32MHz | - | -40°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
NL12KT4R7FIXED IND 4.7UH 315MA 1 OHM SMD Viking Tech |
0 |
|
Datasheet
|
NL | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 315 mA | - | Unshielded | 1Ohm Max | 50 @ 7.96MHz | 35MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

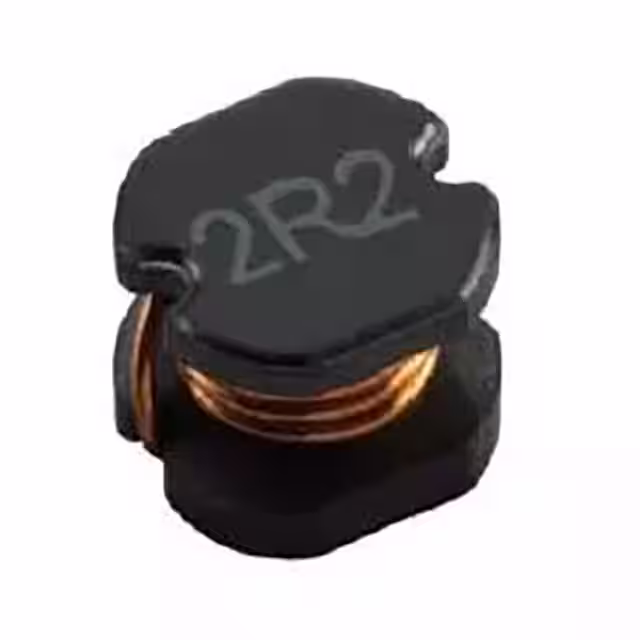

PCD0705KT390FIXED IND 36UH 1.1A 160MOHM SMD Viking Tech |
0 |
|
Datasheet
|
PCD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±10% | 1.1 A | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
PD1608MT6R8FIXED IND 6.8UH 20% 130MOHM 1.2 Viking Tech |
0 |
|
- |
PD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 6.8 µH | ±20% | 1.2 A | - | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
