Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCMB063T-R33MSFIXED IND 330NH 20A 3.9 MOHM SMD Susumu |
1,045 |
|
Datasheet
|
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±20% | 20 A | 30A | Unshielded | 3.9mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
|
PCMB063T-R20MSFIXED IND 200NH 24A 3 MOHM SMD Susumu |
1,000 |
|
Datasheet
|
PCMB | 2-SMD | Tape & Reel (TR) | Active | - | - | 200 nH | ±20% | 24 A | 41A | Unshielded | 3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
|
PCMB104T-R56MTFIXED IND 560NH 25A 1.8 MOHM SMD Susumu |
500 |
|
Datasheet
|
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 nH | ±20% | 25 A | 33A | Unshielded | 1.8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.150" (3.80mm) |
|
|
PCMB104E-4R7MSFIXED IND 4.7UH 10A 15 MOHM SMD Susumu |
500 |
|
Datasheet
|
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 10 A | 13A | Unshielded | 15mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|
|
PCMB104T-R68MSFIXED IND 680NH 22A 2.7 MOHM SMD Susumu |
500 |
|
Datasheet
|
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 nH | ±20% | 22 A | 39A | Unshielded | 2.7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.150" (3.80mm) |
|
|
PCMB104T-2R0MSFIXED IND 2UH 14A 5.8 MOHM SMD Susumu |
500 |
|
Datasheet
|
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 2 µH | ±20% | 14 A | 14A | Unshielded | 5.8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.150" (3.80mm) |
|
|
PCMB104E-6R8MSFIXED IND 6.8UH 7.5A 24 MOHM SMD Susumu |
500 |
|
Datasheet
|
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 7.5 A | 9.5A | Unshielded | 24mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|

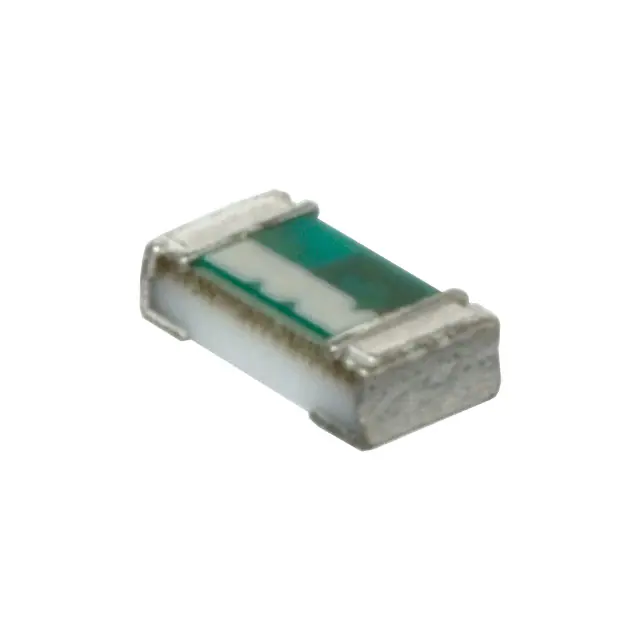

TFL0816-2N7FIXED IND 2.7NH 800MA 150MOHM SM Susumu |
0 |
|
Datasheet
|
TFL | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.7 nH | ±0.2nH | 800 mA | - | Unshielded | 150mOhm Max | 20 @ 300MHz | 6GHz | - | - | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
TFL0816-3N3FIXED IND 3.3NH 700MA 200MOHM SM Susumu |
0 |
|
Datasheet
|
TFL | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.3 nH | ±0.2nH | 700 mA | - | Unshielded | 200mOhm Max | 20 @ 300MHz | 6GHz | - | - | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
TFL0816-10NFIXED IND 10NH 300MA 1 OHM SMD Susumu |
0 |
|
Datasheet
|
TFL | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 10 nH | ±2% | 300 mA | - | Unshielded | 1Ohm Max | 15 @ 300MHz | 4GHz | - | - | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
