Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

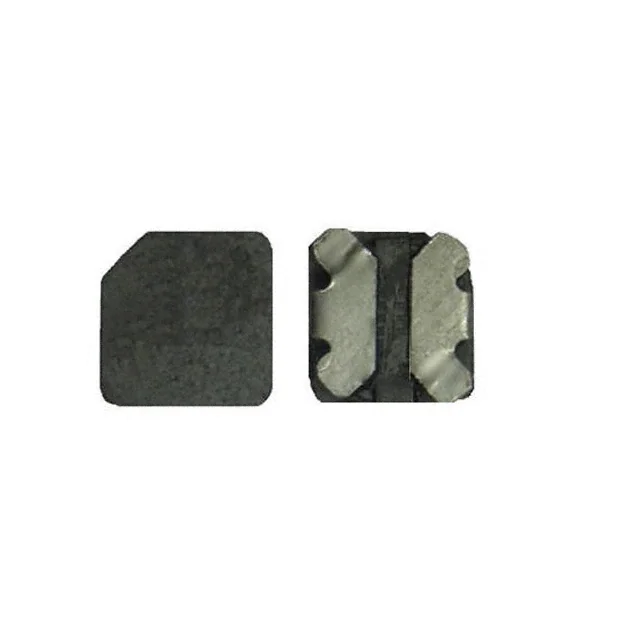

SCTH2010-2R7FIXED IND 2.7UH 720MA 245MOHM SM Signal Transformer |
0 |
|
Datasheet
|
SCTH2010 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.7 µH | ±20% | 720 mA | 720mA | Shielded | 245mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
SCMS5D12-100FIXED IND 10UH 1.04A 313MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SCMS5D12 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±20% | 1.04 A | 750mA | Shielded | 313mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.049" (1.25mm) |
|
|
SCMS5D12-150FIXED IND 15UH 850MA 450MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SCMS5D12 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 850 mA | 610mA | Shielded | 450mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.049" (1.25mm) |
|
|
SCMS5D12-2R2FIXED IND 2.2UH 1.7A 82 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SCMS5D12 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±30% | 1.7 A | 1.6A | Shielded | 82mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.049" (1.25mm) |
|
|
SCMS5D12-4R7FIXED IND 4.7UH 1.37A 129MOHM SM Signal Transformer |
0 |
|
Datasheet
|
SCMS5D12 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±30% | 1.37 A | 1A | Shielded | 129mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.049" (1.25mm) |
|
|
F1B1-383812-3R3MFIXED IND 3.3UH 1.3A 168 MOHM Signal Transformer |
0 |
|
Datasheet
|
F1B1-383812 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 3.3 µH | ±20% | 1.3 A | 1.4A | Unshielded | 168Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
F1B1-303015-220MFIXED IND 22.0UH 500MA 1050 MOHM Signal Transformer |
0 |
|
Datasheet
|
F1B1-303015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 22 µH | ±20% | 500 mA | 700mA | Unshielded | 1.05kOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SCH53-100FIXED IND 10UH 1.5A 160 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 1.5 A | 1.23A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-101FIXED IND 100UH 430MA 1.57OHM SM Signal Transformer |
0 |
|
Datasheet
|
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 430 mA | 370mA | Unshielded | 1.57Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-120FIXED IND 12UH 1.35A 180MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±20% | 1.35 A | 1.12A | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
