Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

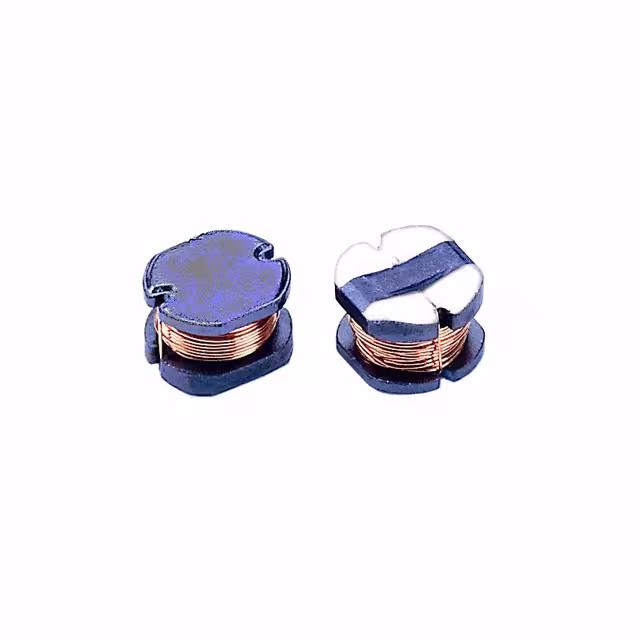

SC43-390FIXED IND 39UH 640MA 587MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±20% | 640 mA | 590mA | Unshielded | 587mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43-3R9FIXED IND 3.9UH 1.98A 76MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±20% | 1.98 A | 1.98A | Unshielded | 76mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43-560FIXED IND 56UH 540MA 937MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 540 mA | 500mA | Unshielded | 937mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43-5R6FIXED IND 5.6UH 1.68A 101MOHM SM Signal Transformer |
0 |
|
Datasheet
|
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 1.68 A | 1.6A | Unshielded | 101mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43-8R2FIXED IND 8.2UH 1.4A 132MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 1.4 A | 1.26A | Unshielded | 132mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
SC52-101FIXED IND 100UH 440MA 1.44OHM SM Signal Transformer |
0 |
|
Datasheet
|
SC52 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 440 mA | 370mA | Unshielded | 1.44Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | 0.091" (2.30mm) |
|
|
SC52-120FIXED IND 12UH 1.05A 210MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC52 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 1.05 A | 1.02A | Unshielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | 0.091" (2.30mm) |
|
|
SC52-150FIXED IND 15UH 960MA 270MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC52 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 960 mA | 880mA | Unshielded | 270mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | 0.091" (2.30mm) |
|
|
SC52-180FIXED IND 18UH 880MA 325MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC52 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 880 mA | 800mA | Unshielded | 325mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | 0.091" (2.30mm) |
|
|
SC52-1R2FIXED IND 1.2UH 3.3A 36 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC52 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 3.3 A | 2.8A | Unshielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | 0.091" (2.30mm) |
