Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

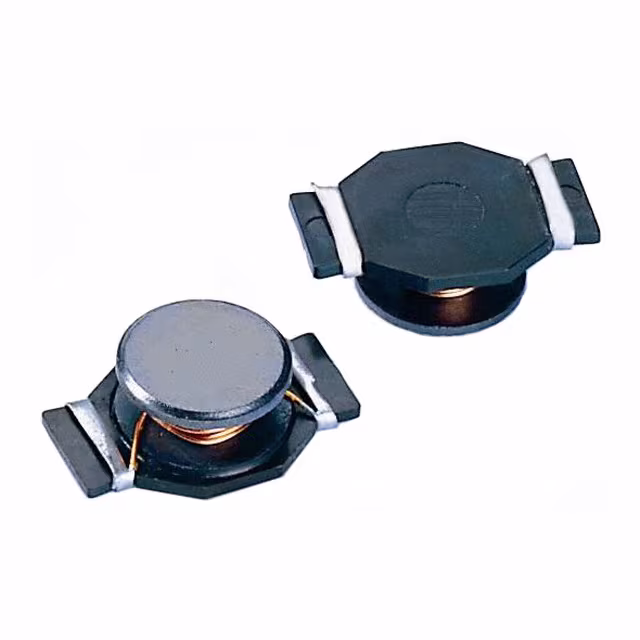

SC4020FH-150FIXED IND 15UH 4.1A 45 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 4.1 A | 4.3A | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
|
|
SC4020FH-1R0FIXED IND 1UH 15A 4.3 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 15 A | 15.3A | Unshielded | 4.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
|
|
SC4020FH-1R5FIXED IND 1.5UH 13.5A 5.9MOHM SM Signal Transformer |
0 |
|
Datasheet
|
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±30% | 13.5 A | 12A | Unshielded | 5.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
|
|
SC4020FH-220FIXED IND 22UH 3.5A 63 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.5 A | 3.7A | Unshielded | 63mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
|
|
SC4020FH-2R2FIXED IND 2.2UH 11A 7.5 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±30% | 11 A | 10.2A | Unshielded | 7.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
|
|
SC4020FH-2R8FIXED IND 2.8UH 9.6A 10 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±30% | 9.6 A | 9.3A | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
|
|
SC4020FH-330FIXED IND 33UH 2.8A 102 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 2.8 A | 3A | Unshielded | 102mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
|
|
SC4020FH-470FIXED IND 47UH 2.1A 132 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.1 A | 2.4A | Unshielded | 132mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
|
|
SC4020FH-4R7FIXED IND 4.7UH 7.7A 15 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 7.7 A | 7.7A | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
|
|
SC4020FH-680FIXED IND 68UH 1.9A 185 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.9 A | 2A | Unshielded | 185mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
