Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

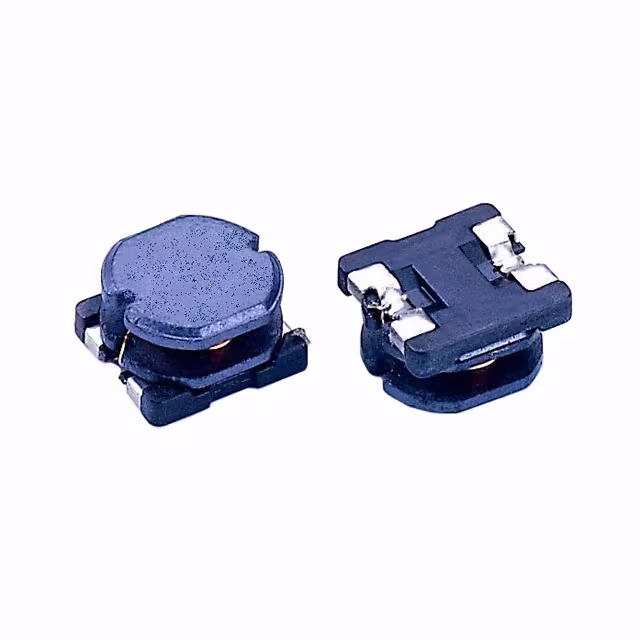

SC73B-121FIXED IND 120UH 800MA 660MOHM SM Signal Transformer |
0 |
|
Datasheet
|
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±20% | 800 mA | 490mA | Unshielded | 660mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-150FIXED IND 15UH 2A 100 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 2 A | 1.24A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-151FIXED IND 150UH 720MA 750MOHM SM Signal Transformer |
0 |
|
Datasheet
|
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 720 mA | 400mA | Unshielded | 750mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-180FIXED IND 18UH 1.8A 110 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 1.8 A | 1.12A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-181FIXED IND 180UH 620MA 1.02OHM SM Signal Transformer |
0 |
|
Datasheet
|
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±20% | 620 mA | 360mA | Unshielded | 1.02Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-220FIXED IND 22UH 1.65A 130MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.65 A | 1.07A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-270FIXED IND 27UH 1.5A 170 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 1.5 A | 940mA | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-271FIXED IND 270UH 480MA 1.31OHM SM Signal Transformer |
0 |
|
Datasheet
|
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±20% | 480 mA | 290mA | Unshielded | 1.31Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-330FIXED IND 33UH 1.4A 200 MOHM SMD Signal Transformer |
0 |
|
Datasheet
|
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.4 A | 850mA | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-331FIXED IND 330UH 440MA 1.76OHM SM Signal Transformer |
0 |
|
Datasheet
|
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 440 mA | 280mA | Unshielded | 1.76Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
