Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
246R8CFIXED IND 6.8UH 1.75A 61MOHM SMD Murata Power Solutions Inc. |
0 |
|
Datasheet
|
2400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | - | 1.75 A | - | Unshielded | 61mOhm Max | - | 37MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
48150CFIXED IND 15UH 3.2A 77.4MOHM SMD Murata Power Solutions Inc. |
0 |
|
Datasheet
|
4800 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | - | 3.2 A | - | Shielded | 77.4mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.244" (6.20mm) |
|
|
48220CFIXED IND 22UH 2.6A 119MOHM SMD Murata Power Solutions Inc. |
0 |
|
Datasheet
|
4800 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | - | 2.6 A | - | Shielded | 119mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.244" (6.20mm) |
|
|
482R2CFIXED IND 2.2UH 8.3A 13.5MOHM SM Murata Power Solutions Inc. |
0 |
|
Datasheet
|
4800 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | - | 8.3 A | - | Shielded | 13.5mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.244" (6.20mm) |
|
|
48330CFIXED IND 33UH 2.1A 184MOHM SMD Murata Power Solutions Inc. |
0 |
|
Datasheet
|
4800 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | - | 2.1 A | - | Shielded | 184mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.244" (6.20mm) |
|
|
483R3CFIXED IND 3.3UH 6.8A 19.1MOHM SM Murata Power Solutions Inc. |
0 |
|
Datasheet
|
4800 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | - | 6.8 A | - | Shielded | 19.1mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.244" (6.20mm) |
|
|
486R8CFIXED IND 6.8UH 4.7A 39.9MOHM SM Murata Power Solutions Inc. |
0 |
|
Datasheet
|
4800 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | - | 4.7 A | - | Shielded | 39.9mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.244" (6.20mm) |
|

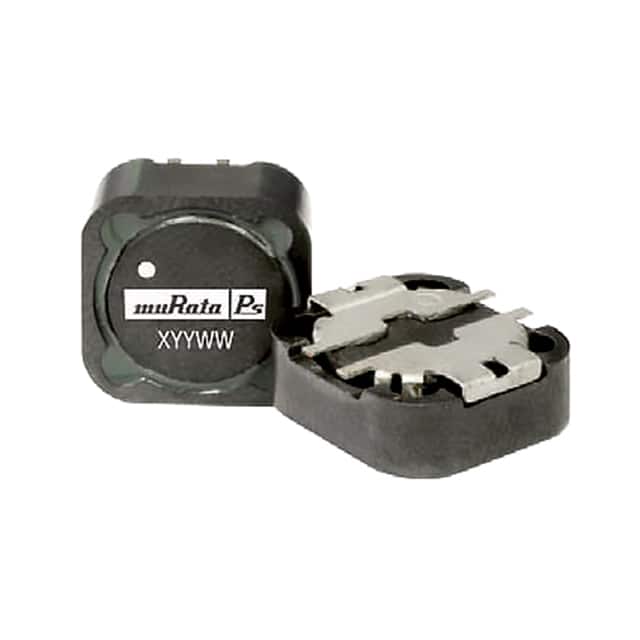

47102SCFIXED IND 1MH 400MA 2.54 OHM SMD Murata Power Solutions Inc. |
0 |
|
Datasheet
|
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 mH | ±20% | 400 mA | - | Shielded | 2.54Ohm Max | 17 @ 800kHz | 4MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47150SCFIXED IND 15UH 3.2A 46.5MOHM SMD Murata Power Solutions Inc. |
0 |
|
Datasheet
|
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 3.2 A | - | Shielded | 46.5mOhm Max | 29 @ 1MHz | 18MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47151SCFIXED IND 150UH 1.1A 410MOHM SMD Murata Power Solutions Inc. |
0 |
|
Datasheet
|
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 150 µH | ±20% | 1.1 A | - | Shielded | 410mOhm Max | 19 @ 800kHz | 7MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
