Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH150T-0.30-55FIXED IND 55UH 300MA 1 OHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 55 µH | ±20% | 300 mA | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.201" (5.10mm) |
|
SH150S-1.20-38FIXED IND 38UH 1.2A 100 MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 38 µH | ±20% | 1.2 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|

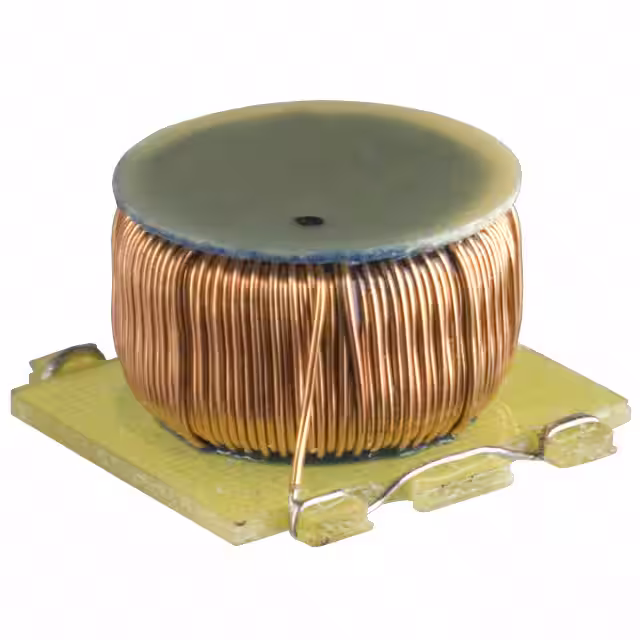

SWS-3.00-25FIXED IND 25UH 3A 40 MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 25 µH | ±20% | 3 A | - | Unshielded | 40mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.400" (10.16mm) |
|
SH50C-1.4-176FIXED IND 176UH 1.4A 140 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 176 µH | ±20% | 1.4 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
SH150T-0.46-78FIXED IND 78UH 460MA 800 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 78 µH | ±20% | 460 mA | - | Unshielded | 800mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | 0.280" (7.10mm) |
|
|
SH150T-1.02-17FIXED IND 17UH 1.02A 100 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 17 µH | ±20% | 1.02 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | 0.280" (7.10mm) |
|
SWC-3.0-150FIXED IND 150UH 3A 100 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 150 µH | ±20% | 3 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
|
SWT-0.16-178FIXED IND 178UH 160MA 2.8 OHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 178 µH | ±20% | 160 mA | - | Unshielded | 2.8Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.217" (5.50mm) |
|
|
SWT-0.25-79FIXED IND 79UH 250MA 1.5 OHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 79 µH | ±20% | 250 mA | - | Unshielded | 1.5Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.217" (5.50mm) |
|
|
SH150T-0.16-178FIXED IND 178UH 160MA 2.8 OHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 178 µH | ±20% | 160 mA | - | Unshielded | 2.8Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.201" (5.10mm) |
