Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMLP1313MR22DTASFIXED IND 220NH 51A 800U OHM SMD KYOCERA AVX |
0 |
|
Datasheet
|
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 220 nH | ±20% | 51 A | 110A | Shielded | 800µOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313MR10DTASFIXED IND 100NH 55A 600U OHM SMD KYOCERA AVX |
0 |
|
Datasheet
|
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 100 nH | ±20% | 55 A | 118A | Shielded | 600µOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313M100DTASFIXED IND 10UH 9A 25.5 MOHM SMD KYOCERA AVX |
0 |
|
Datasheet
|
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 9 A | 16A | Shielded | 25.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313M3R3DTASFIXED IND 3.3UH 15A 9.2MOHM SMD KYOCERA AVX |
0 |
|
Datasheet
|
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 15 A | 32A | Shielded | 9.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313M5R6DTASFIXED IND 5.6UH 11.5A 16.5 MOHM KYOCERA AVX |
0 |
|
Datasheet
|
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 5.6 µH | ±20% | 11.5 A | 22A | Shielded | 16.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313M1R2DTASFIXED IND 1.2UH 25A 3.5MOHM SMD KYOCERA AVX |
0 |
|
Datasheet
|
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.2 µH | ±20% | 25 A | 49A | Shielded | 3.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313M1R0DTASFIXED IND 1UH 29A 2.5 MOHM SMD KYOCERA AVX |
0 |
|
Datasheet
|
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 29 A | 50A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|

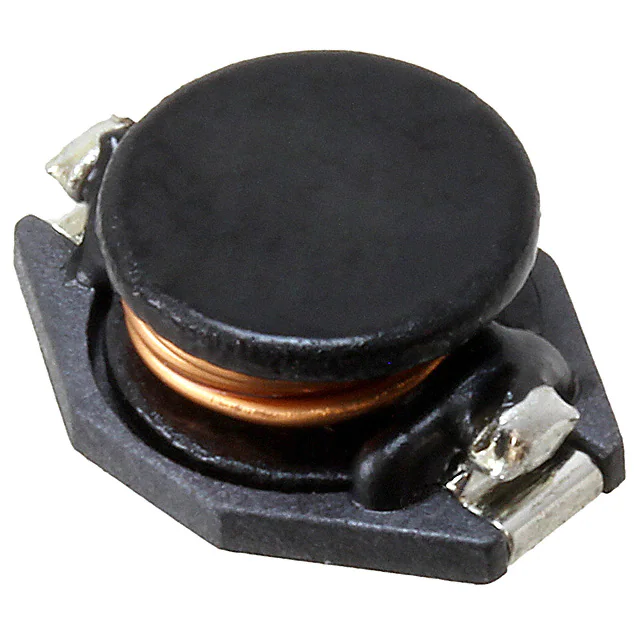

LMXN0906M220BTASFIXED IND 22UH 250 MOHM SMD KYOCERA AVX |
0 |
|
Datasheet
|
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | - | 1.2A | Unshielded | 250mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.252" W (8.89mm x 6.40mm) | 0.197" (5.00mm) |
|
|
LMXN0906MR47BTASFIXED IND 470NH SMD KYOCERA AVX |
0 |
|
Datasheet
|
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | - | - | Unshielded | - | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.252" W (8.89mm x 6.40mm) | 0.197" (5.00mm) |
|
LMXN1915M102CTASFIXED IND 1MH 1.8 OHM SMD KYOCERA AVX |
0 |
|
Datasheet
|
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | - | 1A | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
