Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS0814N7JTRAIR CORE INDUCTORS KYOCERA AVX |
0 |
|
Datasheet
|
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 14.7 nH | ±5% | 4.4 A | - | Unshielded | 7.2mOhm Max | 90 @ 400MHz | 3GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.061" L x 0.084" W (1.55mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0821N5JTRAIR CORE INDUCTORS KYOCERA AVX |
0 |
|
Datasheet
|
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 21.5 nH | ±5% | 4.4 A | - | Unshielded | 9mOhm Max | 130 @ 400MHz | 3.7GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.101" L x 0.084" W (2.57mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0825N0JTRAIR CORE INDUCTORS KYOCERA AVX |
0 |
|
Datasheet
|
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 25 nH | ±5% | 4.4 A | - | Unshielded | 10mOhm Max | 130 @ 400MHz | 2.5GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.117" L x 0.084" W (2.97mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0816N6JTRAIR CORE INDUCTORS KYOCERA AVX |
0 |
|
Datasheet
|
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 16.6 nH | ±5% | 4.4 A | - | Unshielded | 8mOhm Max | 130 @ 400MHz | 3.4GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.087" L x 0.084" W (2.21mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0823N0JTRAIR CORE INDUCTORS KYOCERA AVX |
0 |
|
Datasheet
|
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 23 nH | ±5% | 4.4 A | - | Unshielded | 10mOhm Max | 130 @ 400MHz | 2.6GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.088" L x 0.084" W (2.24mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0808N1JTRAIR CORE INDUCTORS KYOCERA AVX |
0 |
|
Datasheet
|
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8.1 nH | ±5% | 4.4 A | - | Unshielded | 6mOhm Max | 130 @ 400MHz | 5.2GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.058" L x 0.084" W (1.47mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0812N1JTRAIR CORE INDUCTORS KYOCERA AVX |
0 |
|
Datasheet
|
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 12.1 nH | ±5% | 4.4 A | - | Unshielded | 7mOhm Max | 130 @ 400MHz | 4.3GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.073" L x 0.084" W (1.85mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0827N3JTRAIR CORE INDUCTORS KYOCERA AVX |
0 |
|
Datasheet
|
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 27.3 nH | ±5% | 4.4 A | - | Unshielded | 10mOhm Max | 130 @ 400MHz | 3.2GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.117" L x 0.084" W (2.97mm x 2.13mm) | 0.078" (1.98mm) |
|
LMLP06A6M100CTARFIXED IND 10UH 1A 235 MOHM SMD KYOCERA AVX |
0 |
|
Datasheet
|
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1 A | 1A | Shielded | 235mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|

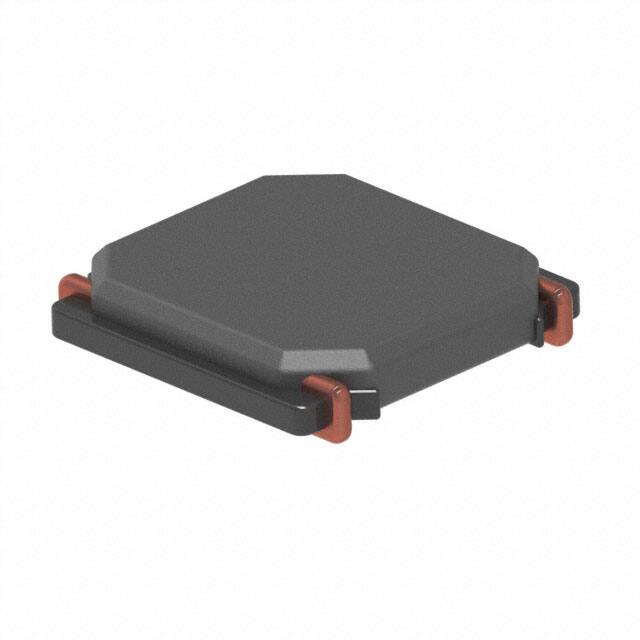

LMLP0606M100CTARFIXED IND 10UH 850MA 500MOHM SMD KYOCERA AVX |
0 |
|
Datasheet
|
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 850 mA | 1A | Shielded | 500mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.043" (1.10mm) |
