Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9221NLTFIXED IND 120UH 1.07A 316MOHM SM iNRCORE, LLC |
0 |
|
Datasheet
|
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±20% | 1.07 A | 1.2A | Shielded | 316mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9225NLTFIXED IND 270UH 780MA 775MOHM SM iNRCORE, LLC |
0 |
|
Datasheet
|
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 780 mA | 790mA | Shielded | 775mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9311TFIXED IND 22UH 2.3A 77 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.3 A | 2.8A | Shielded | 77mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|

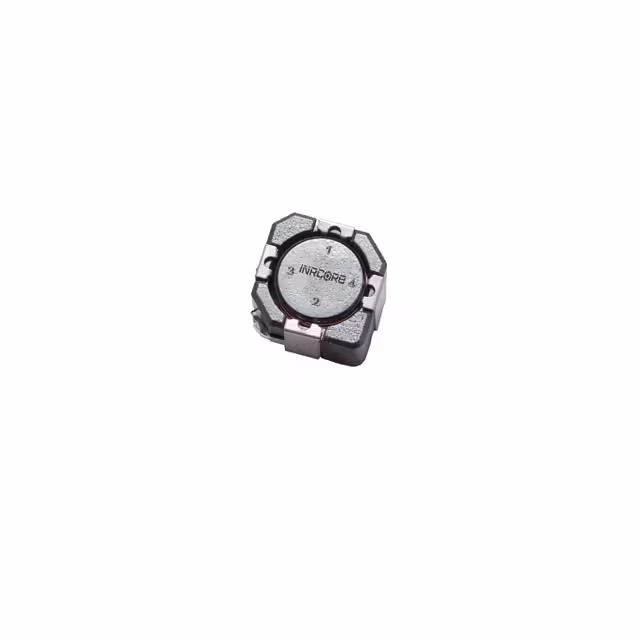

PL9125TFIXED IND 270UH 910MA 460MOHM SM iNRCORE, LLC |
0 |
|
Datasheet
|
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 910 mA | 910mA | Shielded | 460mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL8600FIXED IND 2.2UH 8.3A 8 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tube | Active | Toroidal | - | 2.2 µH | ±10% | 8.3 A | - | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8600NLFIXED IND 2.2UH 8.3A 8 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tube | Active | Toroidal | - | 2.2 µH | ±10% | 8.3 A | - | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
PL8601FIXED IND 2.6UH 7.2A 10.9MOHM SM iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tube | Active | Toroidal | - | 2.6 µH | ±10% | 7.2 A | - | Unshielded | 10.9mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8601NLFIXED IND 2.6UH 7.2A 10.9MOHM SM iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tube | Active | Toroidal | - | 2.6 µH | ±10% | 7.2 A | - | Unshielded | 10.9mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|

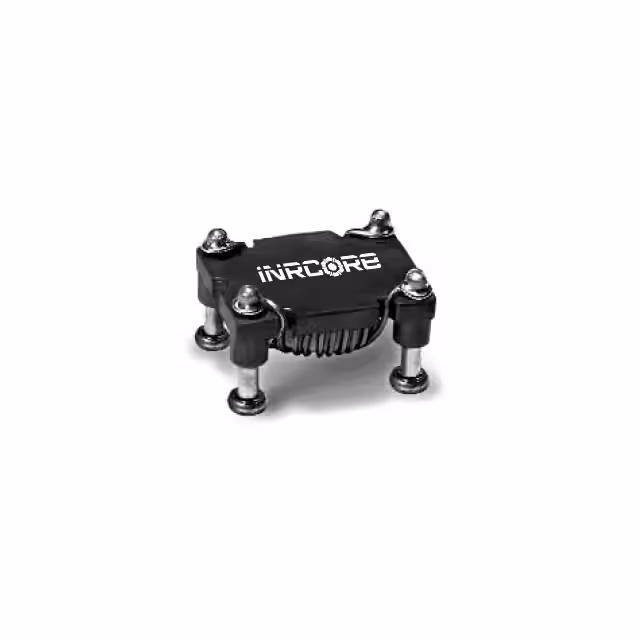

PL8602FIXED IND 5.5UH 5.2A 19 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tube | Active | Toroidal | - | 5.5 µH | ±10% | 5.2 A | - | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8602NLFIXED IND 5.5UH 5.2A 19 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tube | Active | Toroidal | - | 5.5 µH | ±10% | 5.2 A | - | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
