Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

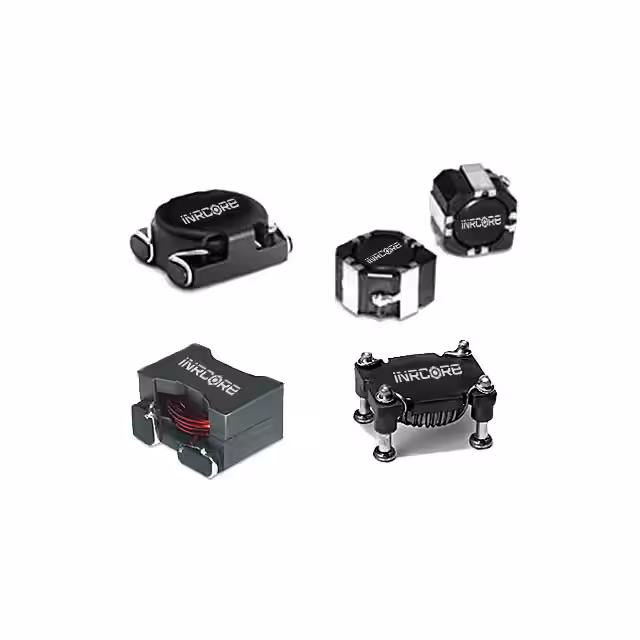

PL8181FIXED IND 17.6UH 10.9A 12.3 MOHM iNRCORE, LLC |
0 |
|
Datasheet
|
SLED | Nonstandard | Tube | Active | Toroidal | - | 17.6 µH | - | 10.9 A | - | Unshielded | 12.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 1.275" L x 1.065" W (32.39mm x 27.05mm) | 0.510" (12.95mm) |
|
PL8181NLFIXED IND 17.6UH 10.9A 12.3 MOHM iNRCORE, LLC |
0 |
|
Datasheet
|
SLED | Nonstandard | Tube | Active | Toroidal | - | 17.6 µH | - | 10.9 A | - | Unshielded | 12.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 1.275" L x 1.065" W (32.39mm x 27.05mm) | 0.510" (12.95mm) |
|
|
PL9226NLTFIXED IND 330UH 660MA 955MOHM SM iNRCORE, LLC |
0 |
|
Datasheet
|
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 660 mA | 710mA | Shielded | 955mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9227NLTFIXED IND 390UH 580MA 1.087 OHM iNRCORE, LLC |
0 |
|
Datasheet
|
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 390 µH | ±20% | 580 mA | 660mA | Shielded | 1.087Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9311NLTFIXED IND 22UH 2.3A 77 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.3 A | 2.8A | Shielded | 77mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL8502NLTFIXED IND 25UH 2.4A 74 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 2.4 A | - | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8705NLTFIXED IND 18.5UH 5.2A 23.24 MOHM iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 18.5 µH | ±20% | 5.2 A | - | Unshielded | 23.24mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL9219NLTFIXED IND 82UH 1.36A 232MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 1.36 A | 1.4A | Shielded | 232mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9220NLTFIXED IND 100UH 1.29A 270MOHM SM iNRCORE, LLC |
0 |
|
Datasheet
|
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.29 A | 1.3A | Shielded | 270mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9203NLTFIXED IND 2.7UH 6.6A 10 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 6.6 A | 7.3A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
