Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8131TFIXED IND 14UH 5.5A 28 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 14 µH | - | 5.5 A | - | Unshielded | 28mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
PL9308TFIXED IND 10UH 3.4A 33.2MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3.4 A | 3.8A | Shielded | 33.2mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
PL10104NLTFIXED IND 1.3UH 25A 0.48MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1.3 µH | ±15% | 25 A | 26A | Unshielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
PL9317TFIXED IND 220UH 730MA 739MOHM SM iNRCORE, LLC |
0 |
|
Datasheet
|
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 730 mA | 920mA | Shielded | 739mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|

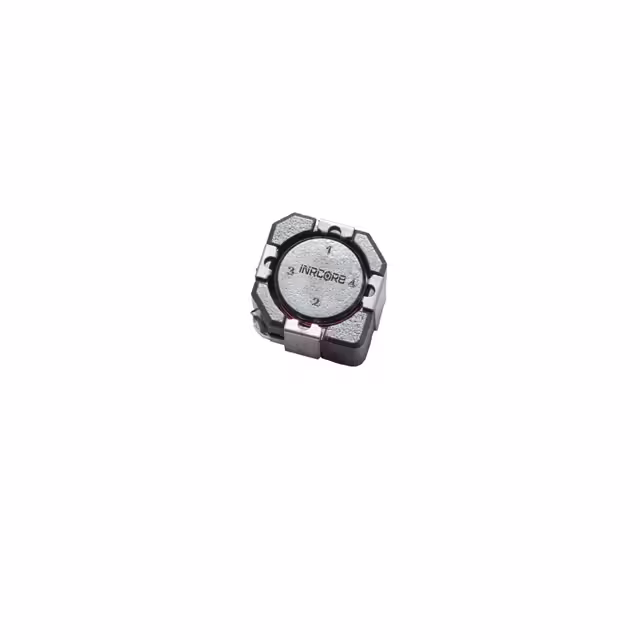

PL9208TFIXED IND 10UH 3.6A 35 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3.6 A | 4A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL10104TFIXED IND 1.3UH 25A 0.48MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1.3 µH | ±15% | 25 A | 26A | Unshielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
PL9217TFIXED IND 56UH 1.6A 157 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 1.6 A | 1.7A | Shielded | 157mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL8120NLTFIXED IND 3.8UH 8A 8.3 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 3.8 µH | - | 8 A | - | Unshielded | 8.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|

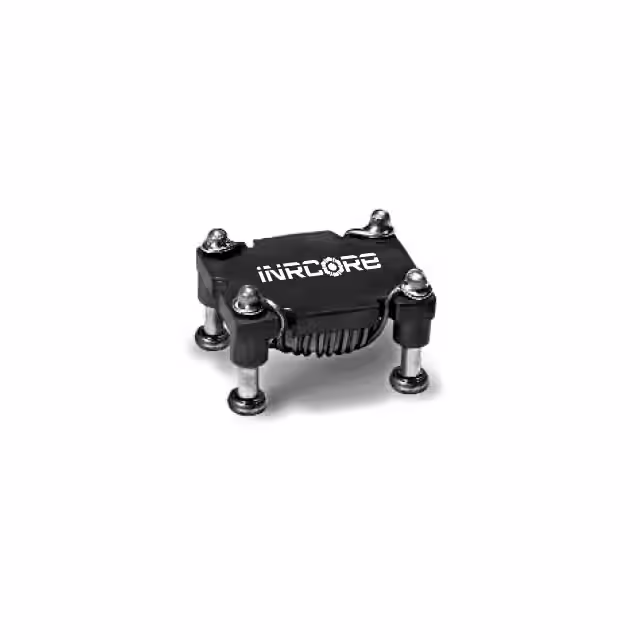

PL8120TFIXED IND 3.8UH 8A 8.3 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 3.8 µH | - | 8 A | - | Unshielded | 8.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL8121NLTFIXED IND 7.5UH 5.4A 17.7MOHM SM iNRCORE, LLC |
0 |
|
Datasheet
|
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 7.5 µH | - | 5.4 A | - | Unshielded | 17.7mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
