Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

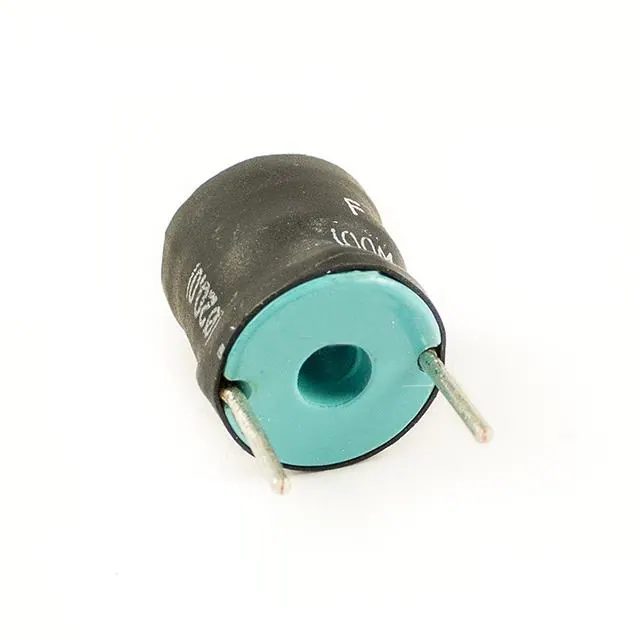

RDC20-222K-RC2200uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Datasheet
|
RDC20 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 2.2 mH | ±10% | 800 mA | 2A | Unshielded | 1.54Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.825" Dia (20.96mm) | 0.840" (21.34mm) |
|
|
RDC20-121K-RC120uH +/- 10% Radial Drum Core Allied Components International |
0 |
|
Datasheet
|
RDC20 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 120 µH | ±10% | 4 A | 9.4A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.825" Dia (20.96mm) | 0.840" (21.34mm) |
|
RDC30-390K-RC39uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Datasheet
|
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 39 µH | ±10% | 11.4 A | 19.1A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
RDC30-502K-RC5000uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Datasheet
|
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 5 mH | ±10% | - | - | Unshielded | - | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
RDC30-4R7M-RC4.7uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Datasheet
|
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 4.7 µH | ±20% | 21 A | 54A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
SMAC30-10G-RC43nH +/-2% SMD Air Core Induct. Allied Components International |
0 |
|
Datasheet
|
SMAC30 | Nonstandard | Tape & Reel (TR) | Active | - | Air | 43 nH | ±2% | 4 A | - | Unshielded | 7.9mOhm Max | 106 @ 150MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
SMAC25-47G-RC47nH +/-2% SMD Air Core Induct. Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±2% | 3 A | - | Unshielded | 5.6mOhm Max | 100 @ 150MHz | 2.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|

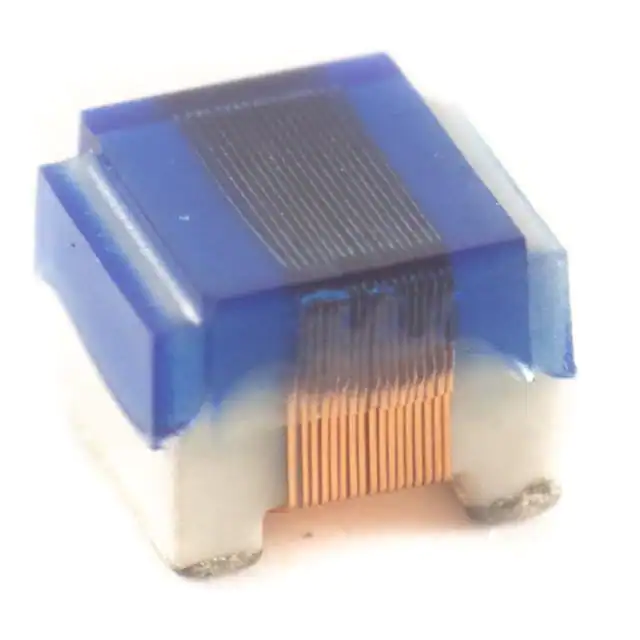

CC10-800NG-RC80nH +/-2% Ceramic Core Chip Allied Components International |
0 |
|
Datasheet
|
CC10 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 800 nH | ±2% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.087" (2.20mm) |
|
CC03-100NJ-RC100nH +/-5% Ceramic Core Chip Allied Components International |
0 |
|
Datasheet
|
CC03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 100 nH | ±5% | - | 400mA | Unshielded | 780mOhm Max | 34 @ 150MHz | 1.4GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
|
|
CC03-220NJ-RC220nH +/-5% Ceramic Core Chip Allied Components International |
0 |
|
Datasheet
|
CC03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 220 nH | ±5% | - | 200mA | Unshielded | 2.02Ohm Max | 25 @ 100MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
