Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

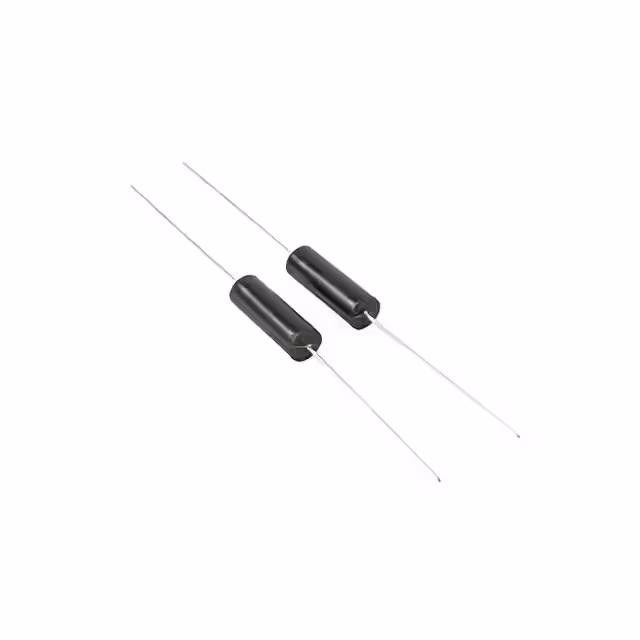

APC40-102K-RC-TR1000UH 10% AXIAL POWER CHOKES Allied Components International |
0 |
|
Datasheet
|
APC40 | Axial | Tape & Reel (TR) | Active | - | - | 1 mH | ±10% | 1.2 A | 1.8A | - | 570mOhm Max | - | - | - | -55°C ~ 125°C | 25 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
|

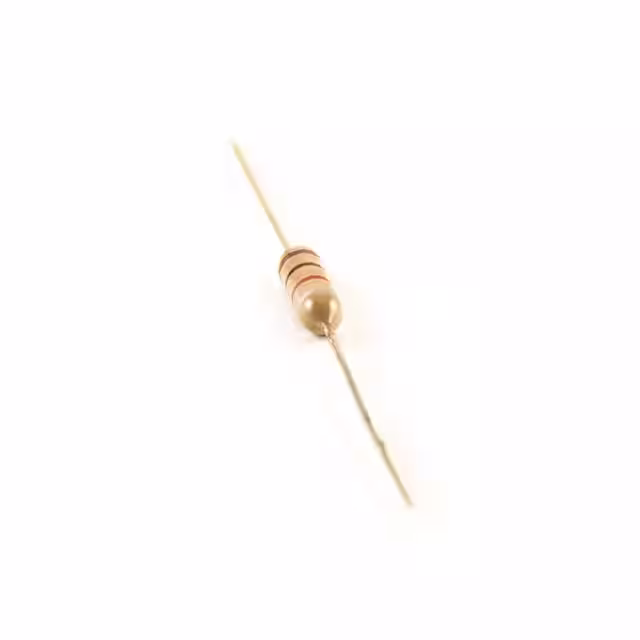

AE80-102K-RC1000UH 10% PWR COATED INDUCTOR Allied Components International |
0 |
|
Datasheet
|
AE80 | Axial | Bag | Active | - | - | 1 mH | ±10% | 240 mA | - | - | 6.9Ohm Max | 40 @ 250kHz | - | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | Axial | 0.175" Dia x 0.500" L (4.44mm x 12.70mm) | - |
|
AS40-101K-RC100UH 10% AXIAL SHIELDED IND. Allied Components International |
0 |
|
Datasheet
|
AS40 | Axial | Bag | Active | - | - | 100 µH | ±10% | 160 mA | - | Shielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
AS40-104K-RC100MH 10% AXIAL SHIELDED IND. Allied Components International |
0 |
|
Datasheet
|
AS40 | Axial | Bag | Active | - | - | 100 mH | ±10% | 11 mA | - | Shielded | 678Ohm Max | 18 @ 7.9kHz | 110kHz | - | -55°C ~ 125°C | 7.9 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

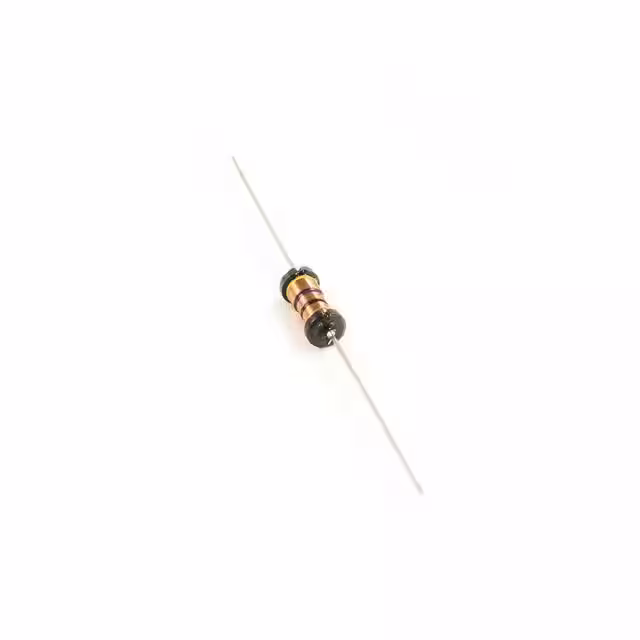

AC80-470J-RC47UH 5% AXIAL COATED INDUCTOR Allied Components International |
0 |
|
Datasheet
|
AC80 | Axial | Tape & Reel (TR) | Active | - | - | 47 µH | ±5% | 800 mA | - | - | 500mOhm Max | 40 @ 2.52MHz | 5MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | Axial | 0.205" Dia x 0.583" L (5.21mm x 14.80mm) | - |
|
APC30-473K-RC47MH 10% AXIAL POWER CHOKE Allied Components International |
0 |
|
Datasheet
|
APC30 | Axial | Bag | Active | - | - | 47 mH | ±10% | 100 mA | 131mA | - | 31.8Ohm Max | - | - | - | -55°C ~ 125°C | 19 kHz | - | Through Hole | Axial | 0.470" Dia x 0.920" L (11.94mm x 23.37mm) | - |
|
|
APC30-272K-RC2700UH 10% AXIAL POWER CHOKE Allied Components International |
0 |
|
Datasheet
|
APC30 | Axial | Bag | Active | - | - | 2.7 mH | ±10% | 400 mA | 530mA | - | 2.06Ohm Max | - | - | - | -55°C ~ 125°C | 13 kHz | - | Through Hole | Axial | 0.470" Dia x 0.920" L (11.94mm x 23.37mm) | - |
|

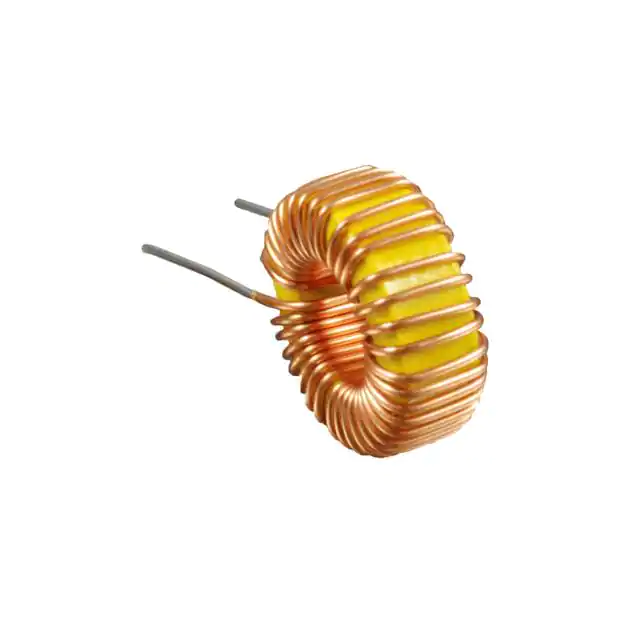

VTC100-330K-RC33UH 10% Vrt Mnt Toroidal Choke Allied Components International |
0 |
|
Datasheet
|
TC100 | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 33 µH | ±10% | 2.5 A | 2.8A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.600" Dia (15.24mm) | - |
|

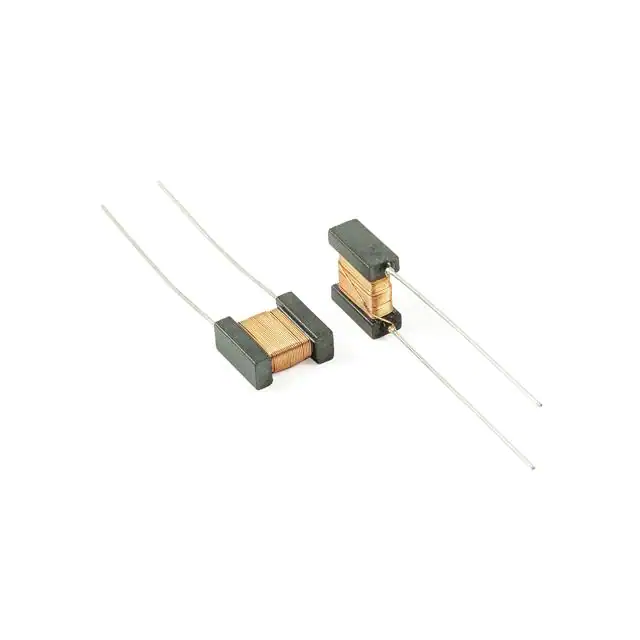

RFC20-102K-RC1000UH 10% RADIAL FLAT COIL Allied Components International |
0 |
|
Datasheet
|
- | Radial | Box | Active | Wirewound | - | 1 mH | ±10% | 210 mA | - | Unshielded | 8.6Ohm Max | 70 @ 790kHz | - | - | -20°C ~ 100°C | 790 kHz | - | Through Hole | Radial | 0.400" L x 0.125" W (10.16mm x 3.18mm) | 0.400" (10.16mm) |
|
|
RFC20-181K-RC180UH 10% RADIAL FLAT COIL Allied Components International |
0 |
|
Datasheet
|
- | Radial | Box | Active | Wirewound | - | 180 µH | ±10% | 580 mA | - | Unshielded | 2.07Ohm Max | 70 @ 790kHz | - | - | -20°C ~ 100°C | 790 kHz | - | Through Hole | Radial | 0.400" L x 0.125" W (10.16mm x 3.18mm) | 0.400" (10.16mm) |
