Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-5605#F13ROTARY ENCODER OPTICAL 256PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDS | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-5540#C12ROTARY ENCODER OPTICAL 100PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDS | Tray | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 100 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-5605#G06ROTARY ENCODER OPTICAL 360PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDS | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 360 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-5500#A01ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 2mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

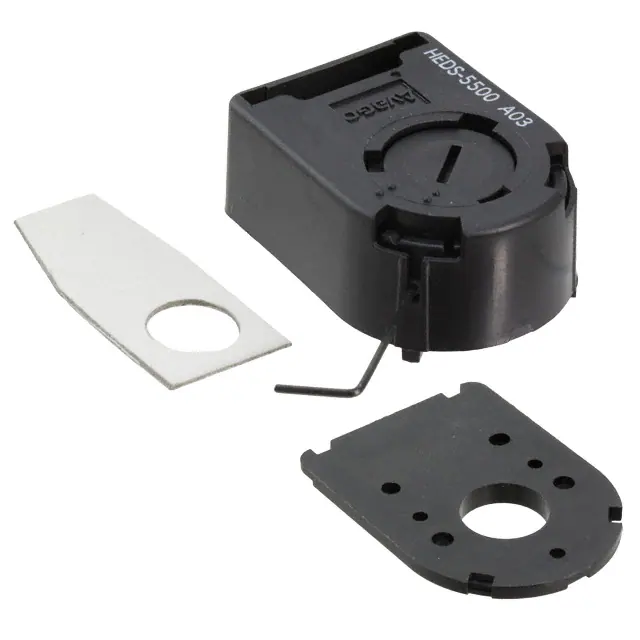

HEDS-5500#A03ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/8" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-5500#A04ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 5/32" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-5500#C01ROTARY ENCODER OPTICAL 100PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 2mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-5500#C02ROTARY ENCODER OPTICAL 100PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 3mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-5500#C03ROTARY ENCODER OPTICAL 100PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 1/8" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

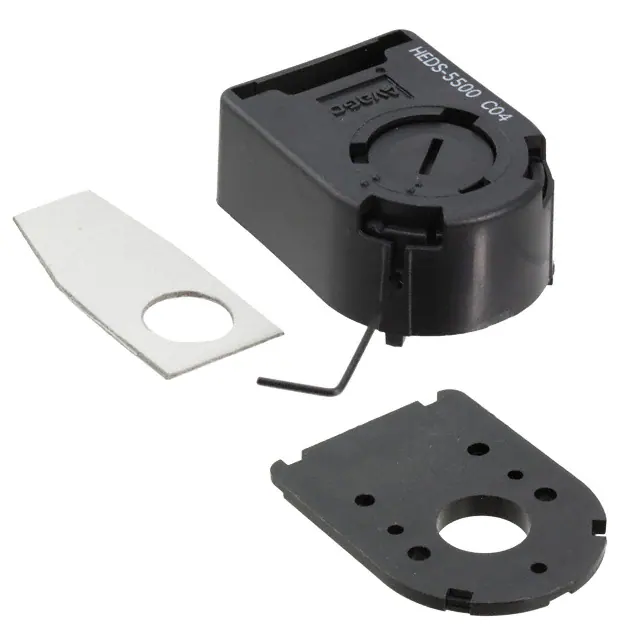

HEDS-5500#C04ROTARY ENCODER OPTICAL 100PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 5/32" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
