Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEDR-9830DP-102ENCODER DP 318LPI, REEL 100U Broadcom Limited |
30 |
|
Datasheet
|
AEDR | Tray | Active | - | Incremental | Quadrature (Incremental) | - | 3.3V ~ 5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|
|
AEDR-9930E-102REFLECTIVE ROTARY 397LPI ENCODER Broadcom Limited |
177 |
|
Datasheet
|
AEDR | Tape & Reel (TR) | Active | - | Incremental | Digital | 397 LPI | 3.3V ~ 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AR25-AB1P-A15TPCBA CW 15MMTHRU H,BISS C Broadcom Limited |
24 |
|
- |
- | Tray | Active | Not Verified | Optical | BiSS-C | - | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
|
AEAT-9922-Q2418BITS MAG ENC ON-OFF AXIS Broadcom Limited |
1 |
|
Datasheet
|
- | Tube | Active | Not Verified | Magnetic | PWM | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | - | No | No | - | - | - | - | - | - |
|

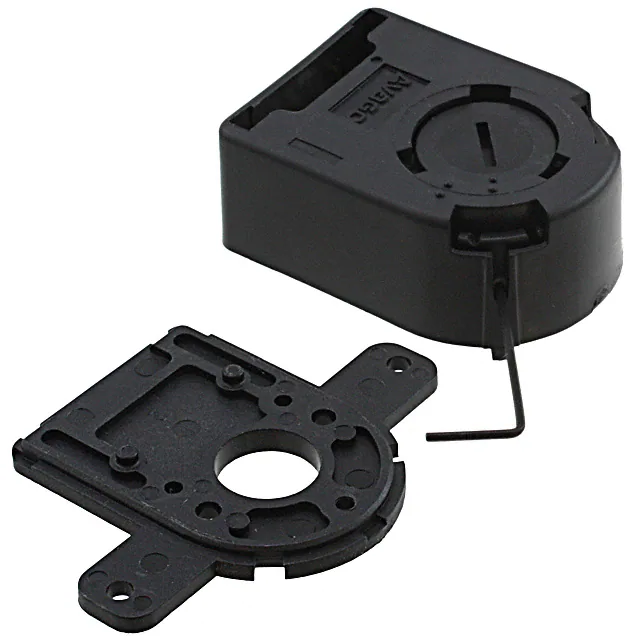

HEDS-5600#E06ROTARY ENCODER OPTICAL 200PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

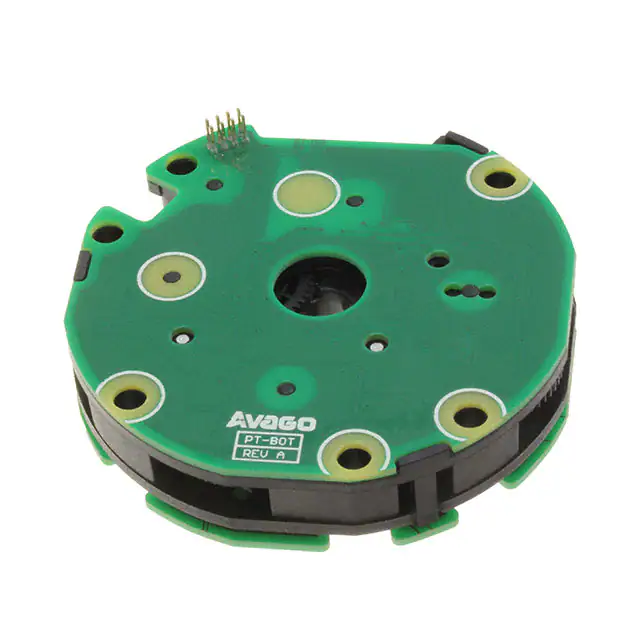

AEAT-84AD-LBSC0ROTARY ENCODER OPTICAL 4096PPR Broadcom Limited |
0 |
|
Datasheet
|
AEAT-84AD | Bulk | Active | Not Verified | Optical | Gray Code (Absolute) | 4096 | 5V | 10mm Geared Center | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|

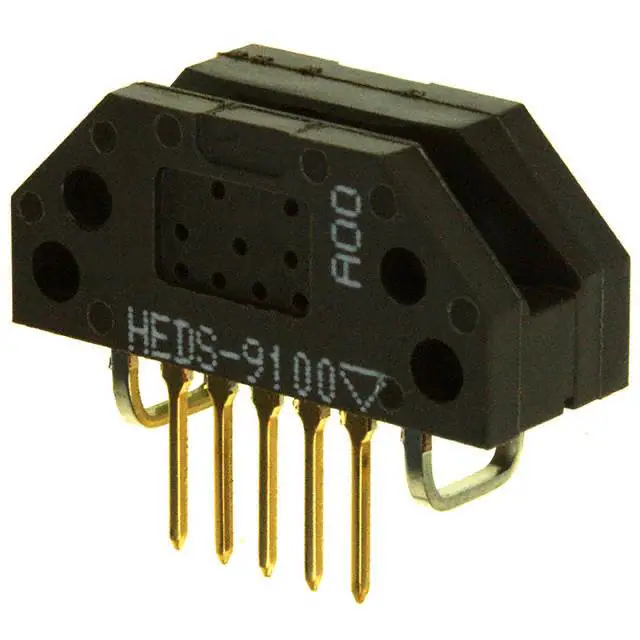

HEDS-9100#A00ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDM-5600#B13ROTARY ENCODER OPTICAL 1000PPR Broadcom Limited |
0 |
|
Datasheet
|
HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-AD32#56RROTARY ENCODER OPTICAL 32PPR Broadcom Limited |
0 |
|
Datasheet
|
HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
AEDT-9810-Z00ROTARY ENCODER OPTICAL 5000PPR Broadcom Limited |
4 |
|
Datasheet
|
- | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
