Encoders(14132)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

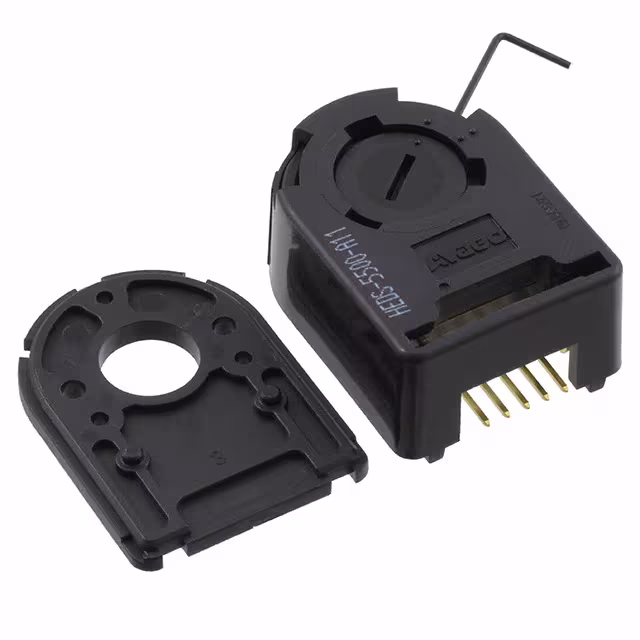

HEDS-5500#A11ROTARY ENCODER OPTICAL 500PPR |
382 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

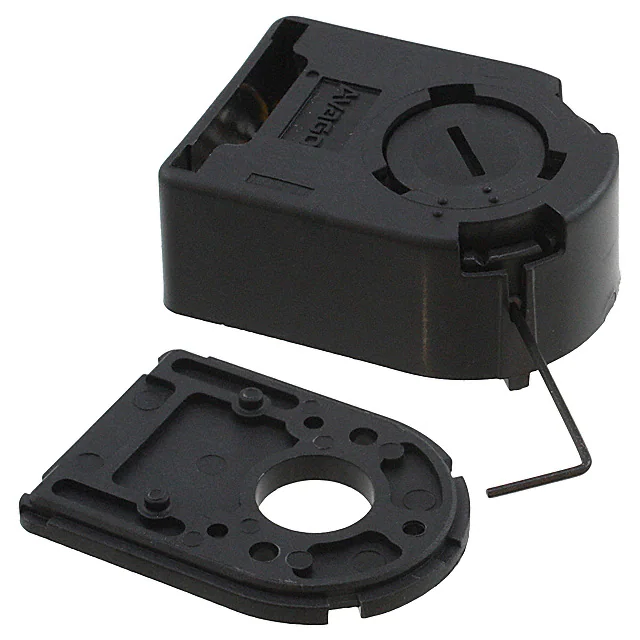

HEDS-5500#A05ROTARY ENCODER OPTICAL 500PPR |
156 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 3/16" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

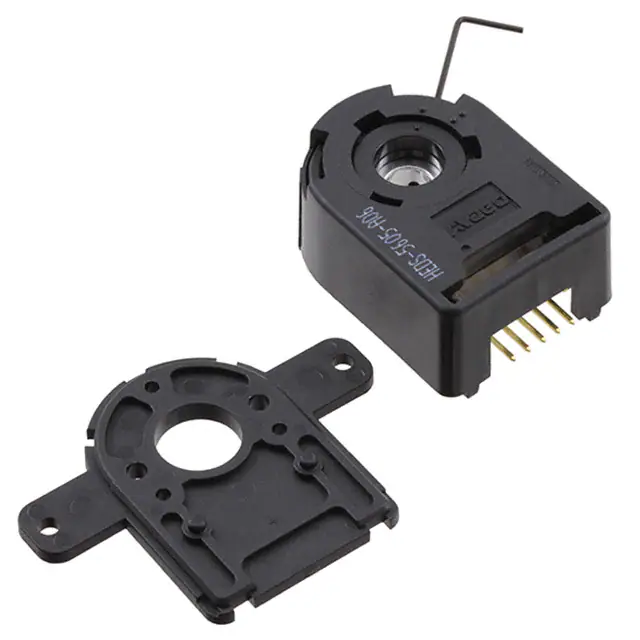

HEDS-5605#A06ROTARY ENCODER OPTICAL 500PPR |
100 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

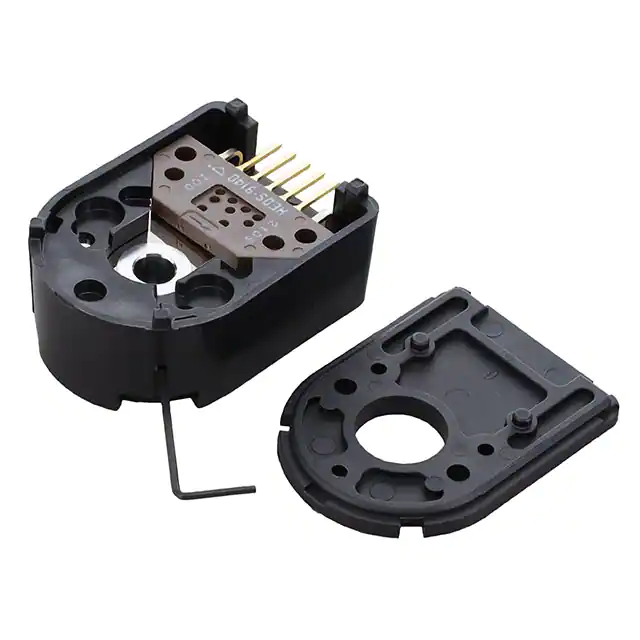

HEDS-5540#I14ROTARY ENCODER OPTICAL 512PPR |
78 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 512 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5540#A02ROTARY ENCODER OPTICAL 500PPR |
37 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 3mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5540#A12ROTARY ENCODER OPTICAL 500PPR |
32 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-AD32#13RROTARY ENCODER OPTICAL 32PPR |
130 |
|
Datasheet
|
HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDM-5500#B12ROTARY ENCODER OPTICAL 1000PPR |
105 |
|
Datasheet
|
HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDM-5600#J06ROTARY ENCODER OPTICAL 1024PPR |
105 |
|
Datasheet
|
HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
63R128ROTARY ENCODER OPTICAL 128PPR |
294 |
|
Datasheet
|
63R | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 300M | - | - |
|
61R128ROTARY ENCODER OPTICAL 128PPR |
38 |
|
Datasheet
|
61R | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
EN16-V22AF15ROTARY ENCODER MECHANICAL 24PPR |
4,188 |
|
Datasheet
|
EN16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|

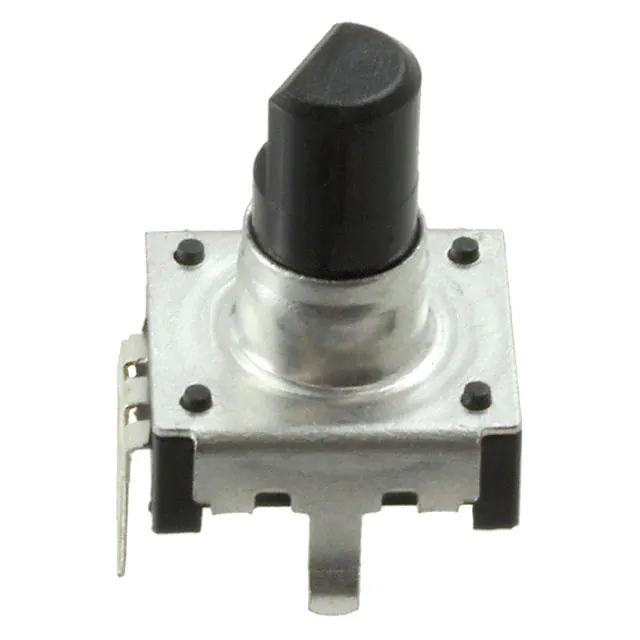

PEC12R-4117F-N0012ROTARY ENCODER MECHANICAL 12PPR |
1,969 |
|
Datasheet
|
PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC16-2220F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,153 |
|
Datasheet
|
PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
PEC12R-4022F-S0024ROTARY ENCODER |
1,352 |
|
Datasheet
|
PEC12R | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PEC16-2015F-S0024ROTARY ENCODER MECHANICAL 24PPR |
468 |
|
Datasheet
|
PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
EVQ-V5K00715BROTARY ENCODER MECHANICAL 15PPR |
271 |
|
Datasheet
|
EVQV | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVQ-V5D00309BROTARY ENCODER MECHANICAL 9PPR |
578 |
|
Datasheet
|
EVQV | Bulk | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVQ-V5903215BROTARY ENCODER MECHANICAL 15PPR |
414 |
|
Datasheet
|
EVQV | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ACZ16NBR1E-20KQD1-12CROTARY ENCODER INCREMENT 12PPR |
135 |
|
Datasheet
|
ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
