CPLDs (Complex Programmable Logic Devices)(4119)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM7096QC100-7IC CPLD 96MC 7.5NS 100QFP |
0 |
|
Datasheet
|
MAX® 7000 | 100-BQFP | Tray | Obsolete | Not Verified | EE PLD | 7.5 ns | 4.75V ~ 5.25V | 6 | 96 | 1800 | 76 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
XCR3256XL-7TQ144CIC CPLD 256MC 7NS 144TQFP |
0 |
|
Datasheet
|
CoolRunner XPLA3 | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable (min 1K program/erase cycles) | 7 ns | 3V ~ 3.6V | 16 | 256 | 6000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
EPM7128SQC160-6FIC CPLD 128MC 6NS 160QFP |
0 |
|
Datasheet
|
MAX® 7000S | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable | 6 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
XC95288XL-10PQG208CIC CPLD 288MC 10NS 208QFP |
0 |
|
Datasheet
|
XC9500XL | 208-BFQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 16 | 288 | 6400 | 168 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|

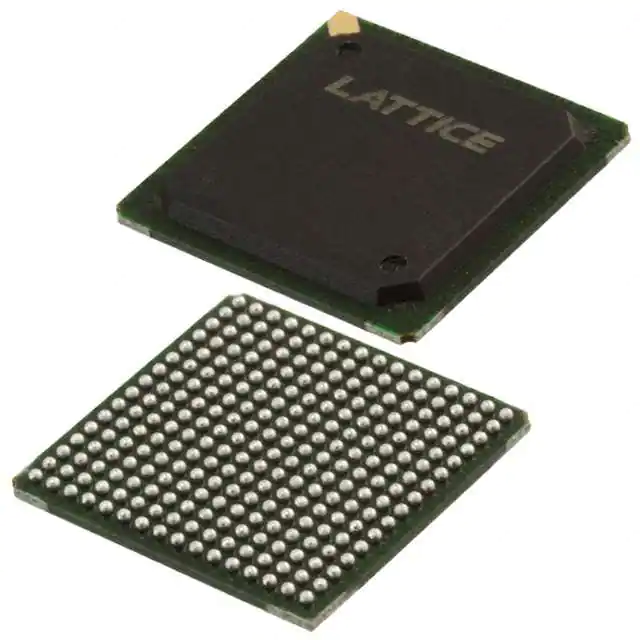

M4A3-512/192-12FANCIC CPLD 512MC 12NS 256FPBGA |
0 |
|
Datasheet
|
ispMACH® 4A | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 12 ns | 3V ~ 3.6V | - | 512 | - | 192 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
M4A3-512/192-14FANIIC CPLD 512MC 14NS 256FPBGA |
0 |
|
Datasheet
|
ispMACH® 4A | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 14 ns | 3V ~ 3.6V | - | 512 | - | 192 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
LC4384V-5FTN256CIC CPLD 384MC 5NS 256FTBGA |
0 |
|
Datasheet
|
ispMACH® 4000V | 256-LBGA | Tray | Active | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 24 | 384 | - | 192 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FTBGA (17x17) |
|
|
LC4384V-75FTN256IIC CPLD 384MC 7.5NS 256FTBGA |
0 |
|
Datasheet
|
ispMACH® 4000V | 256-LBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 24 | 384 | - | 192 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 256-FTBGA (17x17) |
|
EPM1270T144C3IC CPLD 980MC 6.2NS 144TQFP |
0 |
|
Datasheet
|
MAX® II | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 6.2 ns | 2.5V, 3.3V | 1270 | 980 | - | 116 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
EPM1270GT144C3IC CPLD 980MC 6.2NS 144TQFP |
0 |
|
Datasheet
|
MAX® II | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 116 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
EPM1270GF256C4NIC CPLD 980MC 6.2NS 256FBGA |
0 |
|
Datasheet
|
MAX® II | 256-BGA | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 212 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
EPM1270GF256I5NIC CPLD 980MC 6.2NS 256FBGA |
0 |
|
Datasheet
|
MAX® II | 256-BGA | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 212 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
.jpg)
|

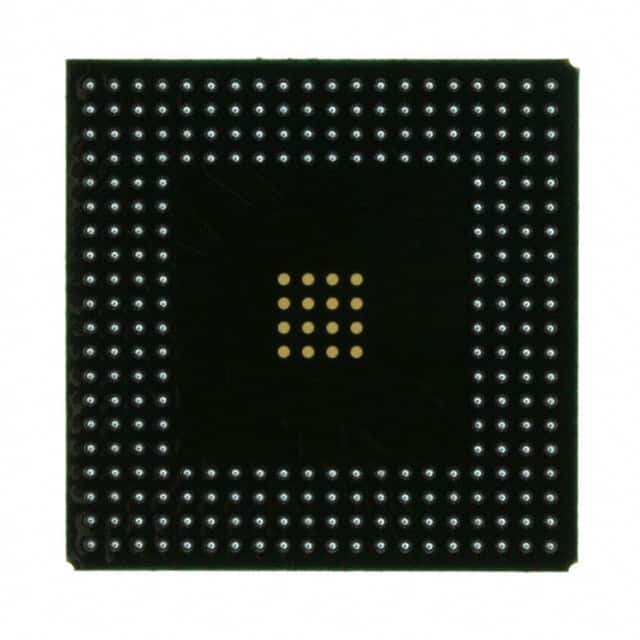

XC95288XL-7BGG256IIC CPLD 288MC 7.5NS 256BGA |
0 |
|
Datasheet
|
XC9500XL | 256-BBGA | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 3V ~ 3.6V | 16 | 288 | 6400 | 192 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-PBGA (27x27) |
|
XC95288XL-7FGG256IIC CPLD 288MC 7.5NS 256FBGA |
0 |
|
Datasheet
|
XC9500XL | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 3V ~ 3.6V | 16 | 288 | 6400 | 192 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
XC95288XL-7BG256IIC CPLD 288MC 7.5NS 256BGA |
0 |
|
Datasheet
|
XC9500XL | 256-BBGA | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 3V ~ 3.6V | 16 | 288 | 6400 | 192 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-PBGA (27x27) |
|
|
XC95288XL-7FG256IIC CPLD 288MC 7.5NS 256FBGA |
0 |
|
Datasheet
|
XC9500XL | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 3V ~ 3.6V | 16 | 288 | 6400 | 192 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|

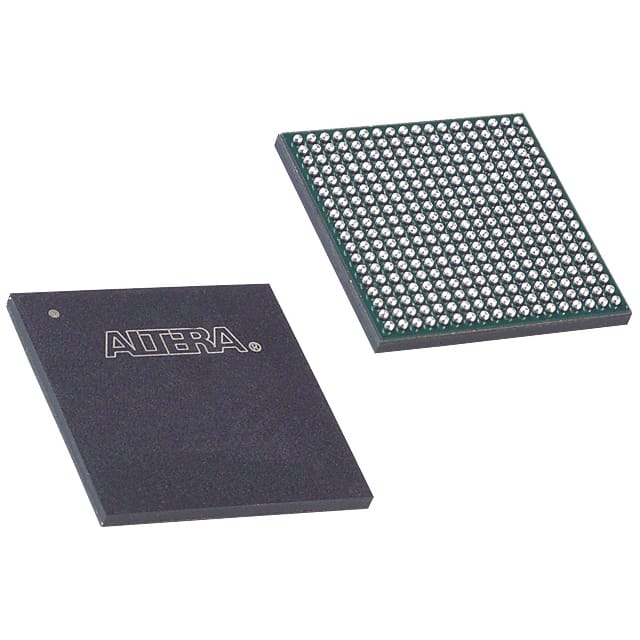

EPM2210F324C5IC CPLD 1700MC 7NS 324FBGA |
0 |
|
Datasheet
|
MAX® II | 324-BGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 2.5V, 3.3V | 2210 | 1700 | - | 272 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 324-FBGA (19x19) |
|
|
EPM2210GF324C5IC CPLD 1700MC 7NS 324FBGA |
0 |
|
Datasheet
|
MAX® II | 324-BGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 1.71V ~ 1.89V | 2210 | 1700 | - | 272 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 324-FBGA (19x19) |
|
|
LC4512V-10FTN256IIC CPLD 512MC 10NS 256FTBGA |
0 |
|
Datasheet
|
ispMACH® 4000V | 256-LBGA | Tray | Active | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 32 | 512 | - | 208 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 256-FTBGA (17x17) |
|
EPMF256I5NABIC MAX IIZ CPLD BGA |
0 |
|
- |
- | - | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - |
