Digital Isolators(5642)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM2887HY-3S#PBFDGTL ISOL 2500VRMS 6CH SPI 32BGA |
0 |
|
Datasheet
|
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2887HY-5I#PBFDGTL ISOL 2500VRMS 6CH I2C 32BGA |
0 |
|
Datasheet
|
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | I2C | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 400kHz | 250ns, 250ns | - | 250ns, 250ns (Max) | 4.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 32-BGA (15x11.25) |
|
HCPL-0900-500DGTL ISO 2500VRMS 1CH GP 8SOIC |
0 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
LTM2886HY-3I#PBFDGTL ISOL 2500VRMS 6CH I2C 32BGA |
0 |
|
Datasheet
|
- | 32-BBGA Module | Tray | Active | Capacitive Coupling | I2C | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 400kHz | 250ns, 250ns | - | 250ns, 250ns (Max) | 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2886HY-3S#PBFDGTL ISOL 2500VRMS 6CH SPI 32BGA |
0 |
|
Datasheet
|
- | 32-BBGA Module | Tray | Active | Capacitive Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2886HY-5S#PBFDGTL ISOL 2500VRMS 6CH SPI 32BGA |
0 |
|
Datasheet
|
- | 32-BBGA Module | Tray | Active | Capacitive Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 4.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 32-BGA (15x11.25) |
|
HCPL-091JDGTL ISO 2500VRMS 4CH GP 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
HCPL-090J-500DGTL ISO 2500VRMS 4CH GP 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
HCPL-092J-500DGTL ISO 2500VRMS 4CH GP 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
ADN4622BRNZ-RLQUAD CHAN 2.5GBPS 2+2 LVDS ISOLA |
0 |
|
Datasheet
|
- | 28-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | LVDS | Yes | 4 | 2/2 | Unidirectional | 8000Vrms | 40kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ps, 180ps (Max) | 1.7V ~ 1.9V, 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 28-SOIC-W-FP |
|
HCPL-901JDGTL ISO 2500VRMS 4CH GP 16SO |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SO W |
|
HCPL-9000DGTL ISO 2500VRMS 1CH GP 8DIP |
0 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
HCPL-902J-500DGTL ISO 2500VRMS 4CH GP 16SO |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SO W |
|
HCPL-9000-500DGTL ISO 2500VRMS 1CH GP 8DIP GW |
0 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
|
NMUSB202MC-R13DGTL ISOL 3000VAC 2CH USB MODULE |
0 |
|
Datasheet
|
- | 13-SMD Module | Tape & Reel (TR) | Obsolete | Magnetic Coupling | USB | Yes | 2 | 1/1 | Bidirectional | 3000VAC | - | 12Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | Module |
|

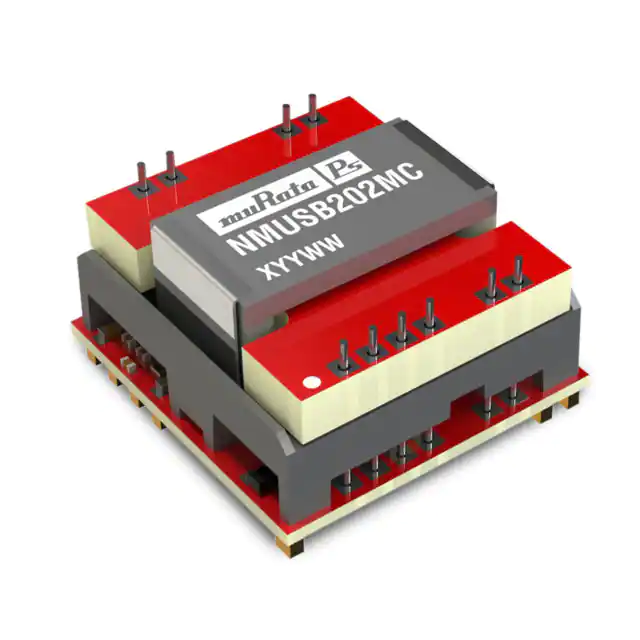

NMUSB202MC-R7DGTL ISOL 3000VAC 2CH USB MODULE |
0 |
|
Datasheet
|
- | 13-SMD Module | Tape & Reel (TR) | Obsolete | Magnetic Coupling | USB | Yes | 2 | 1/1 | Bidirectional | 3000VAC | - | 12Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | Module |
|
|
HCPL-9031-300DGTL ISO 2500VRMS 2CH GP 8SO |
0 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SO |
|
NMUSB2022PMC-R13DGT ISOL 4000VRMS 1CH USB MODULE |
0 |
|
Datasheet
|
- | 13-SMD Module | Tape & Reel (TR) | Obsolete | Capacitive Coupling | USB | Yes | 1 | - | Unidirectional | 4000Vrms | 25kV/µs | 12Mbps | - | - | - | - | - | - | -40°C ~ 85°C | Surface Mount | Module |
|
|
V62/21610-01XERADIATION TOLERANT QUAD-CHANNEL, |
0 |
|
Datasheet
|
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | CAN, RS422, RS485, SPI | Yes | 4 | 3/1 | Unidirectional | 3000Vrms | 100kV/µs | 100Mbps | 16ns, 16ns | 4.9ns | 2.4ns, 2.4ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SSOP |
|
ISOS141FDBQTSEPIC ISOLATION |
0 |
|
Datasheet
|
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | CAN, RS422, RS485, SPI | No | 4 | 3/1 | Unidirectional | 3000Vrms | 100kV/µs | 100Mbps | 16ns, 16ns | 4.9ns | 2.4ns, 2.4ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SSOP |
