Digital Isolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISO7231MDWDGTL ISO 2500VRMS 3CH GP 16SOIC Texas Instruments |
39 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 150Mbps | 23ns, 23ns | 2ns | 2ns, 2ns | 3.15V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ISO7242CDWDGTL ISO 2500VRMS 4CH GP 16SOIC Texas Instruments |
83 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 42ns, 42ns | 2.5ns | 2ns, 2ns | 3.15V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ISO7841FDWDGTL ISO 5700VRMS 4CH GP 16SOIC Texas Instruments |
13 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5700Vrms | 100kV/µs | 100Mbps | 16ns, 16ns | 4.1ns | 1.7ns, 1.9ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|

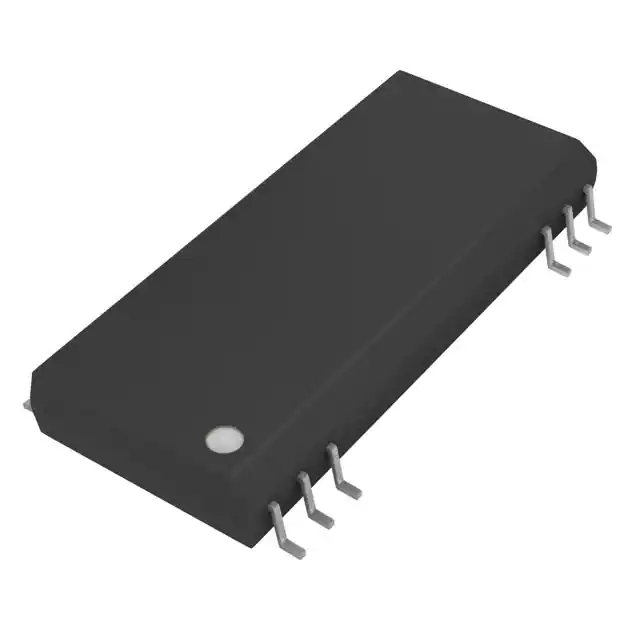

ISO150AUDGTL ISO 1.5KV GEN PURP 12SOP Texas Instruments |
0 |
|
Datasheet
|
- | 28-SOIC (0.295", 7.50mm Width), 8 Leads | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 2 | 2/2 | Bidirectional | 1500Vrms | 1.6kV/µs (Typ) | 80MBd | 40ns, 40ns | 6ns | 9ns, 9ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
ISO7041FDBQDGTL ISO 3000VRMS 4CH GP 16SSOP Texas Instruments |
0 |
|
Datasheet
|
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 3000Vrms | 50kV/µs | 2Mbps | 165ns, 165ns | 10ns | 5ns, 5ns (Max) | 1.71V ~ 1.89V, 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SSOP |
|
ISO6720BDRGENERAL PURPOSE DUAL-CHANNEL, 2/ Texas Instruments |
0 |
|
Datasheet
|
ISO672x, Functional Safety (FuSa) | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | CAN, RS232, RS485, SPI | No | 2 | 2/0 | Unidirectional | 3000Vrms | 100kV/µs | 50Mbps | 18ns, 18ns | 7ns | 2.6ns, 2.6ns | 1.71V ~ 1.89V, 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ISO6721RFBQDRQ1AUTOMOTIVE, GENERAL-PURPOSE, DUA Texas Instruments |
0 |
|
Datasheet
|
Functional Safety (FuSa) | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 3000Vrms | 100kV/µs | 50Mbps | 18ns, 18ns | 7ns | 2.6ns, 2.6ns | 1.71V ~ 1.89V, 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ISO7331CQDWRQ1DGTL ISO 3000VRMS 3CH 16SOIC Texas Instruments |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 3000Vrms | 25kV/µs | 25Mbps | 58ns, 58ns | 4ns | 3ns, 2ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ISO7810DWWDGTL ISO 5700VRMS 1CH GP 16SOIC Texas Instruments |
15 |
|
Datasheet
|
- | 16-SOIC (0.551", 14.00mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 1 | 1/0 | Unidirectional | 5700Vrms | 100kV/µs | 100Mbps | 16ns, 16ns | 4.6ns | 2.4ns, 2.4ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ISO7831DWWRDGTL ISO 5700VRMS 3CH GP 16SOIC Texas Instruments |
0 |
|
Datasheet
|
- | 16-SOIC (0.551", 14.00mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 5700Vrms | 100kV/µs | 100Mbps | 16ns, 16ns | 4.1ns | 1.7ns, 1.9ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
