Digital Isolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM4402ARIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC Analog Devices Inc. |
0 |
|
Datasheet
|
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM4400ARIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC Analog Devices Inc. |
0 |
|
Datasheet
|
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM4401ARIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC Analog Devices Inc. |
0 |
|
Datasheet
|
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM2400ARIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC Analog Devices Inc. |
0 |
|
Datasheet
|
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM2402ARIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC Analog Devices Inc. |
0 |
|
Datasheet
|
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
ADUM3200WCRZ-RL7DGTL ISO 2500VRMS 2CH GP 8SOIC Analog Devices Inc. |
0 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 45ns, 45ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|

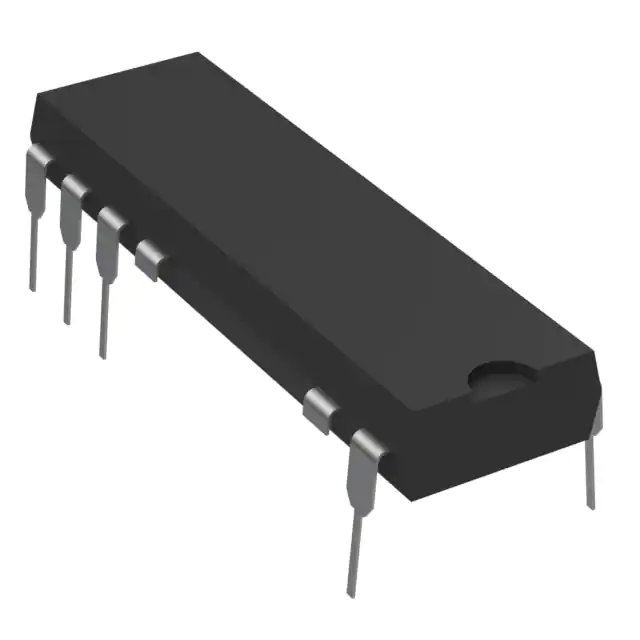

LTC1146CNDGTL ISO 2.5KV OR 3KV 1CH 18DIP Analog Devices Inc. |
0 |
|
Datasheet
|
LTC | 18-DIP (0.300", 7.62mm), 12 Leads | Tube | Obsolete | - | - | - | 1 | 1/0 | - | 3000Vrms | - | 20kHz | - | - | - | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Through Hole | 18-PDIP |
|
|
LTC1145CNDGTL ISO 2.5KV OR 3KV 1CH 18DIP Analog Devices Inc. |
0 |
|
Datasheet
|
LTC | 18-DIP (0.300", 7.62mm), 12 Leads | Bulk | Obsolete | - | - | - | 1 | 1/0 | - | 3000Vrms | - | 200kHz | - | - | - | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Through Hole | 18-PDIP |
|
ADUM2210WTRWZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC Analog Devices Inc. |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM2211WTRWZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC Analog Devices Inc. |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
